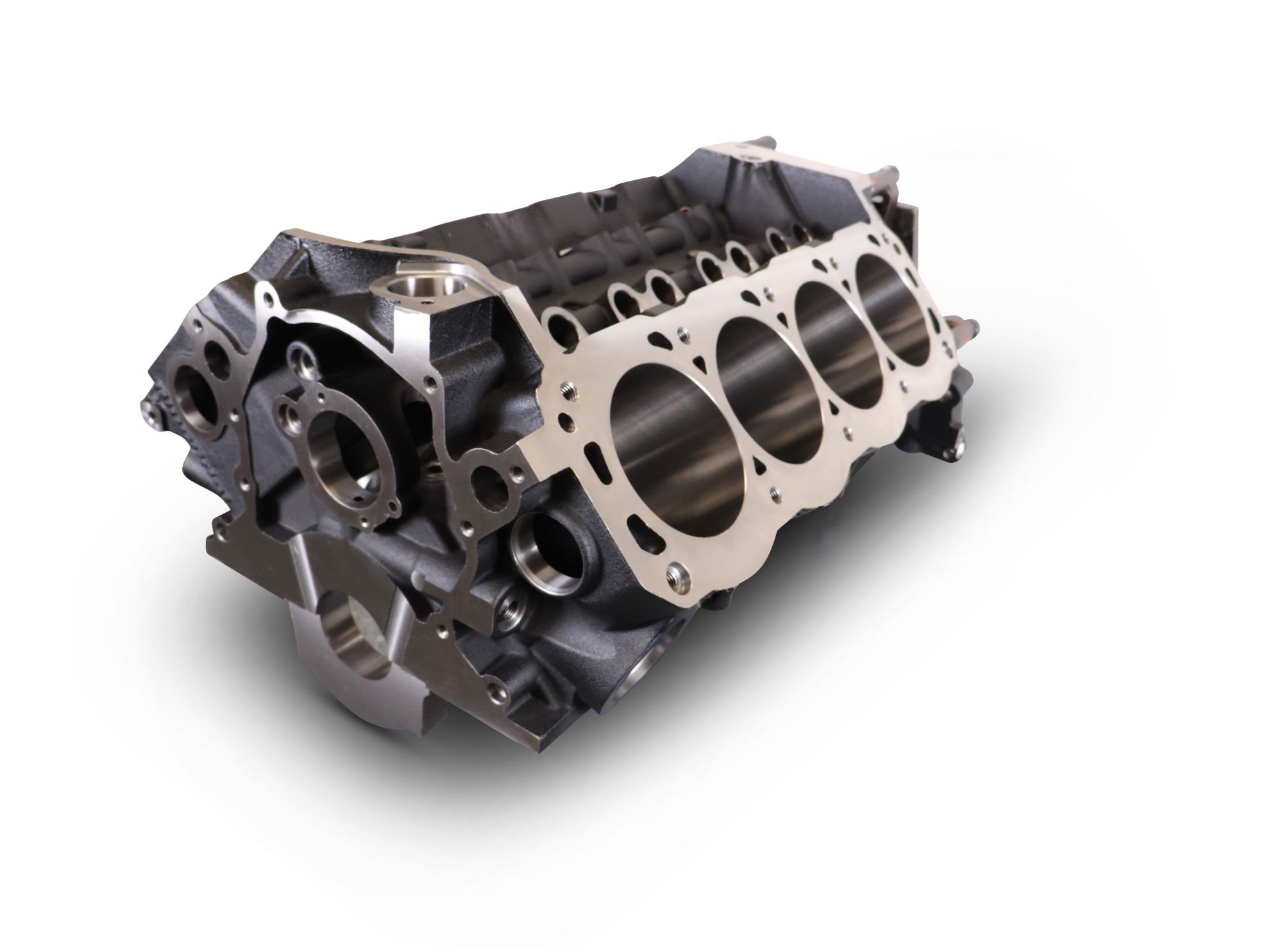

SBF 302 Engine Block 8.200 Deck 4.125 Bore

Name: SBF 302 Engine Block 8.200 Deck 4.125 Bore
SKU: BPP12110341
Price: 2492.93 USD
Availability: OutOfStock

Manufacturer: BluePrint Engines

Manufacturer part number: BPP12110341

Old price: $2,599.00

Price: $2,492.93

PRICE BREAKS - The more you buy, the more you save

Quantity	2+
Price	$2,446.19

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Engine - Bare Block - 4.000 in Bore - 8.200 in Deck - 4 Bolt Main - 1-Piece / 2-Piece Seal - Cast Iron Main Caps - Cast Iron - Natural - Small Block Ford - Each

Manufacturer Part #: BPP12110341

Products specifications

Attribute name	Attribute value
Cylinder Wall Thickness	.160" nominal @ 4.165" bore
Deck Thickness:	.600" Nominal
Product Type	Engine
Lifter Bores	.8757" +/- .0005"
Material	Cast Iron
Sub Type	Bare Block
Freeze / Core Plugs	1-5/8" x 10 BPE # 10110016
Finish	Natural
Weight With Main Caps	170-190lbs
Unit	Each
Main Fastener Tensile Strength	180,000 to 210,000 PSI
Cam Bearing Bore Id	2.2046"+/- .0005"
Main Bearing Bore (Line Honed)	2.4420"-2.4412"
Specifications	4.000 in Bore, 8.200 in Deck, 4 Bolt Main, 1-Piece / 2-Piece Seal, Cast Iron Main Caps, Small Block Ford
Stroke (Max)	3.400"
Configuration	302
Cubic Inch (Max)	363
Cylinder Bore (Max)	4.165"
Cylinder Skirt Length	5.090" Nominal
Main Cap Bolts	7/16-14 Inner / 3/8-16 splayed
Head Bolt Threads	7/16-14 x 1.35 Deep
Deck Height	8.200" +.005" / -.000"
Cam Bearings	Durabond 351HP
Material (Block)	EN-GJL-250 Iron
Cam Retaining Plate	OEM
Camshaft Position	OEM
Fuel Pump	OEM
Oil Filter	OEM
Oil Pan	OEM
Oil Pump	OEM
Starter	OEM
Timing Cover	OEM
Cam Drive / Timing Set	OEM equivalent
Oil System	Priority Main
Water Jacket Style	Siamese
Arp Main Stud Kit P/N	TBD
P1 Main Stud Kit P/N:	TBD
Quantity	Sold Individually
Lifter Retainer (If Not Using Tie Bar Lifters)	OEM W/Roller Provisions
Prop 65 Y/N Flag	Yes
Main Bearing Caps	Ductile Cast Iron 4-Bolt Splayed
Cylinder Bore (Rough)	3.995" to 3.997"
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
