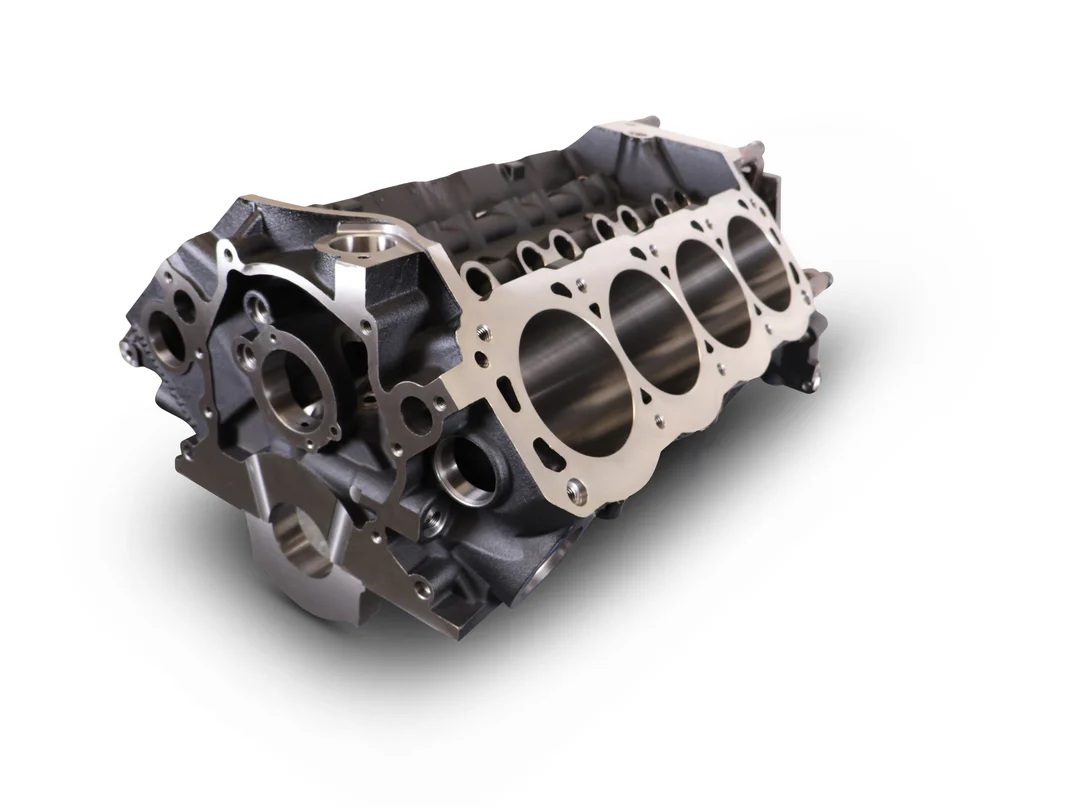

SBF 351 Engine Block 9.500 Deck 4.000 Bore

Name: SBF 351 Engine Block 9.500 Deck 4.000 Bore
SKU: BPP12110338
Price: 3416.14 USD
Availability: OutOfStock

Manufacturer: BluePrint Engines

Manufacturer part number: BPP12110338

Old price: $3,599.00

Price: $3,416.14

PRICE BREAKS - The more you buy, the more you save

Quantity	2+	4+
Price	$3,369.39	$3,346.02

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Engine - Bare Block - 4.000 in Bore - 9.500 in Deck - 4 Bolt Main - 2-Piece Seal - Cast Iron Main Caps - Cast Iron - Natural - Ford Cleveland / Modified - Each

Manufacturer Part #: BPP12110338

Products specifications

Attribute name	Attribute value
Lifter Retainer (If Not Using Tie Bar Lifters)	OEM W/Roller Provisions
Cylinder Wall Thickness	.160" nominal @ 4.165" bore
Product Type	Engine
Deck Thickness:	.600" Nominal
Material	Cast Iron
Sub Type	Bare Block
Lifter Bores	.8757" +/- .0005"
Finish	Natural
Freeze / Core Plugs	1-5/8" x 10 BPE # 10110016
Unit	Each
Main Cap Bolts	1/2-13 Inner / 3/8-16 splayed
Head Bolt Threads	1/2-13 UNC x 1.35 deep
Main Fastener Tensile Strength	180,000 to 210,000 PSI
Specifications	4.000 in Bore, 9.500 in Deck, 4 Bolt Main, 2-Piece Seal, Cast Iron Main Caps, Ford Cleveland / Modified
Cam Bearing Bore Id	2.2046"+/- .0005"
Weight With Main Caps	200 to 220lbs
Configuration	351
Cylinder Bore (Max)	4.165"
Stroke (Max)	4.250"
Cubic Inch (Max)	460
Cylinder Skirt Length	5.800" Nominal
Deck Height	9.500" +.005" / -.000"
Cam Bearings	Durabond 351HP
Material (Block)	EN-GJL-250 Iron
Cam Retaining Plate	OEM
Camshaft Position	OEM
Fuel Pump	OEM
Oil Filter	OEM
Oil Pan	OEM
Oil Pump	OEM
Starter	OEM
Timing Cover	OEM
Cam Drive / Timing Set	OEM equivalent
Oil System	Priority Main
Water Jacket Style	Siamese
Arp Main Stud Kit P/N	TBD
P1 Main Stud Kit P/N:	TBD
Quantity	Sold Individually
Prop 65 Y/N Flag	Yes
Main Bearing Caps	Ductile Cast Iron 4-Bolt Splayed
Cylinder Bore (Rough)	3.995" to 3.997"
Main Bearing Bore (Line Honed)	2.9417"-2.9425" (Cleveland)
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
