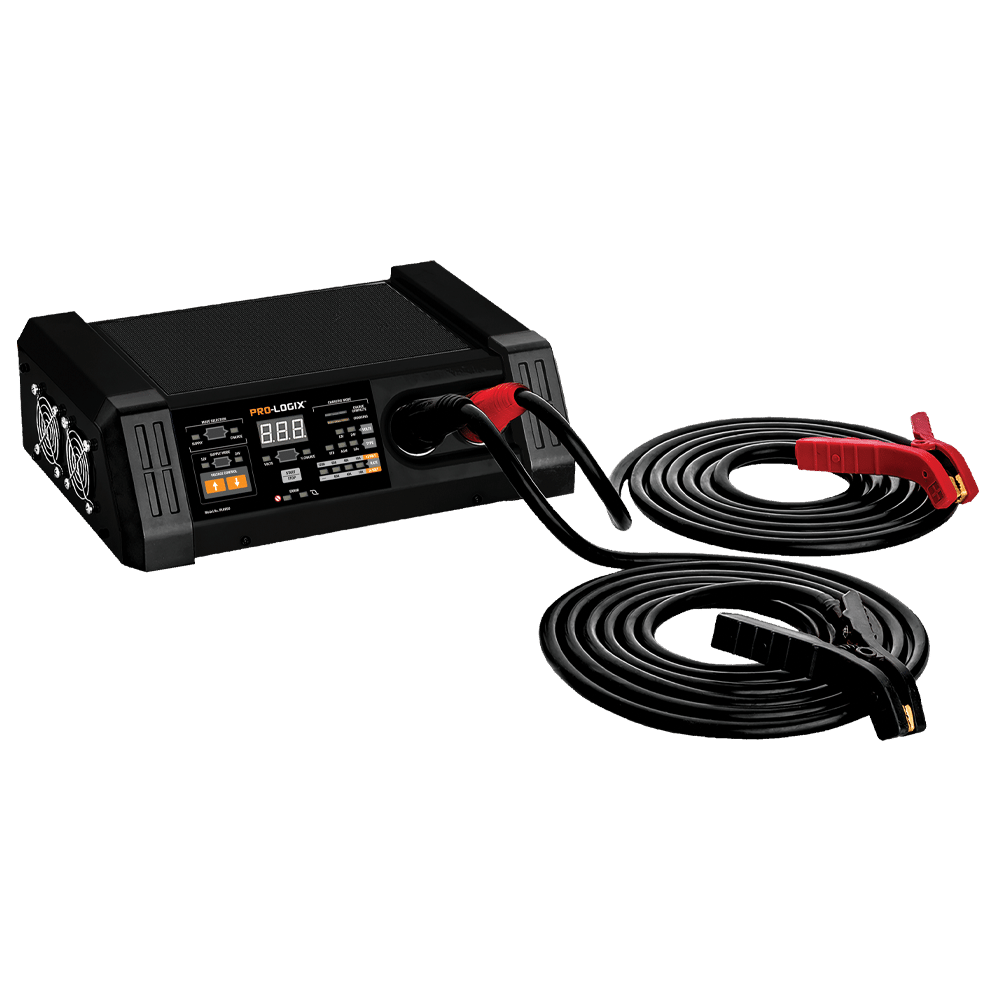

SOLAR Battery Charger - PL6850

Name: SOLAR Battery Charger - PL6850
SKU: PL6850
Availability: InStock

12/24V 120A Flashing Power Supply and HD Battery Charger

Manufacturer: SOLAR

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The PL6850 is designed to provide stable power, on demand up to 120 amps, to a vehicle electrical system to support module reprogramming. It is also designed specifically for fleet service battery charging with a maximum charge rate of 120 amps, to quickly and effectively bring 4and 8-battery Group 31 packs back to full charge.

Note: Q What battery types can this charger service?

Products specifications

Attribute name	Attribute value
Battery Types Charged	Flooded, AGM, Spiral, Deep Cycle, Marinelead acid, plus LiFePO4 lithium
Charging Phases	7
Charging Rates (12V)	120/60/40/10A
Charging Rates (24V)	60/40/10A
Maximum Voltage Ripple in PS Mode	100mV
Operating Voltage	12/24V
Operational Mode	Automatic
Output Cable Gauge	#2AWG
Output Cable Length	13'
Power Supply Output	0-120A on demand, 13.1-14.9V (12V); 0-60A on demand, 26.2-29.8V (24V)
Prop 65 Long Label	Warning - Both Cancer and Reproduction.JPG
Prop 65 - Short Label	WARNING: Cancer - www.p65warnings.ca.gov
Prop 65 (C, R or CR)	C
Prop 65 Warning Label	WARNING: This product can expose you to chemicals, including Vinyl-Chloride, Styrene and Acrylonitrile, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No	Y
Reverse Polarity Protection	Yes
Temperature Compensation	Yes
AC Input	Requires 20A service
Battery Fault Detection	Yes
Country of Origin	VN
