Spicer Automatic Transmission Yoke - 5001039

Name: Spicer Automatic Transmission Yoke - 5001039
SKU: 5001039
Availability: InStock

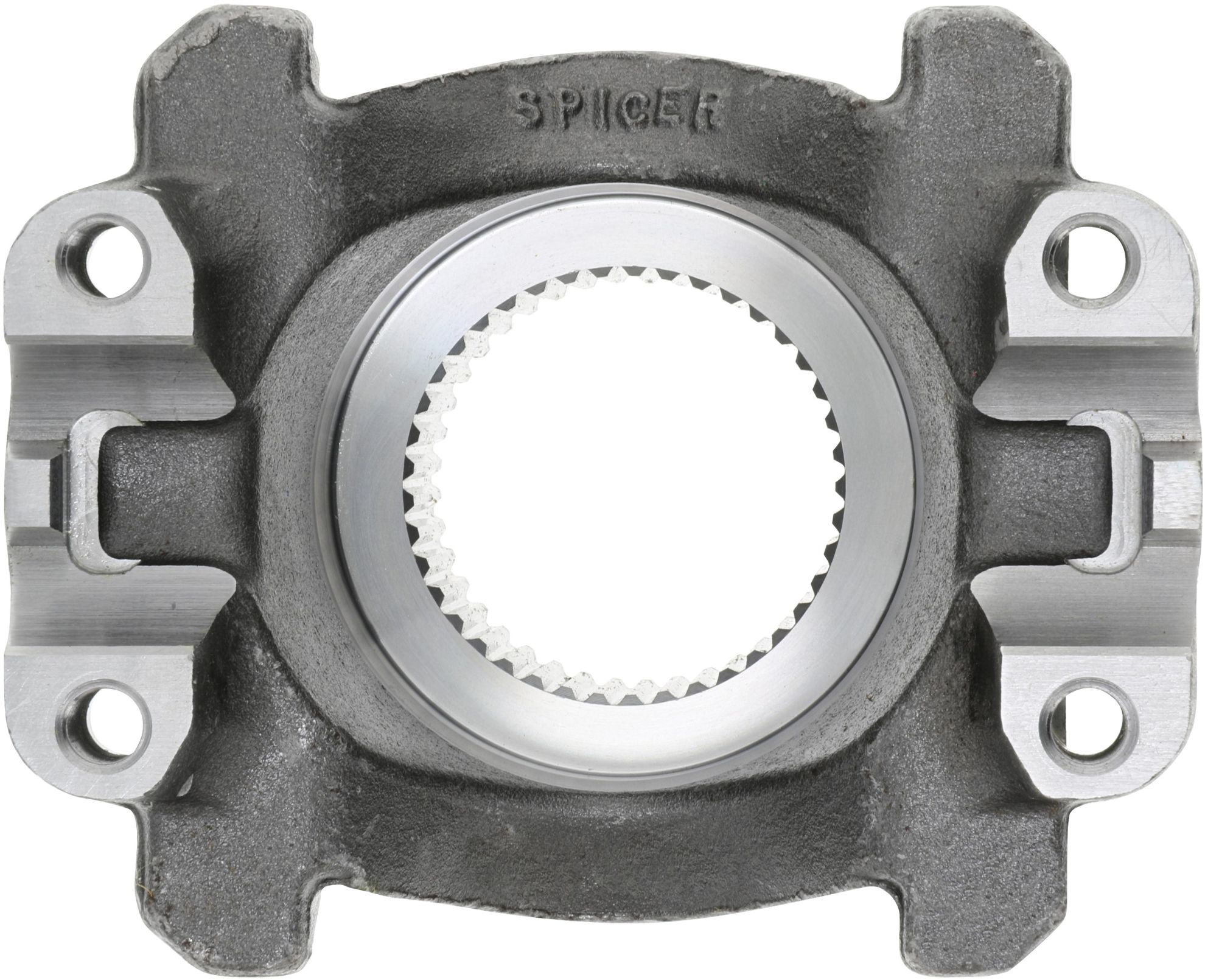

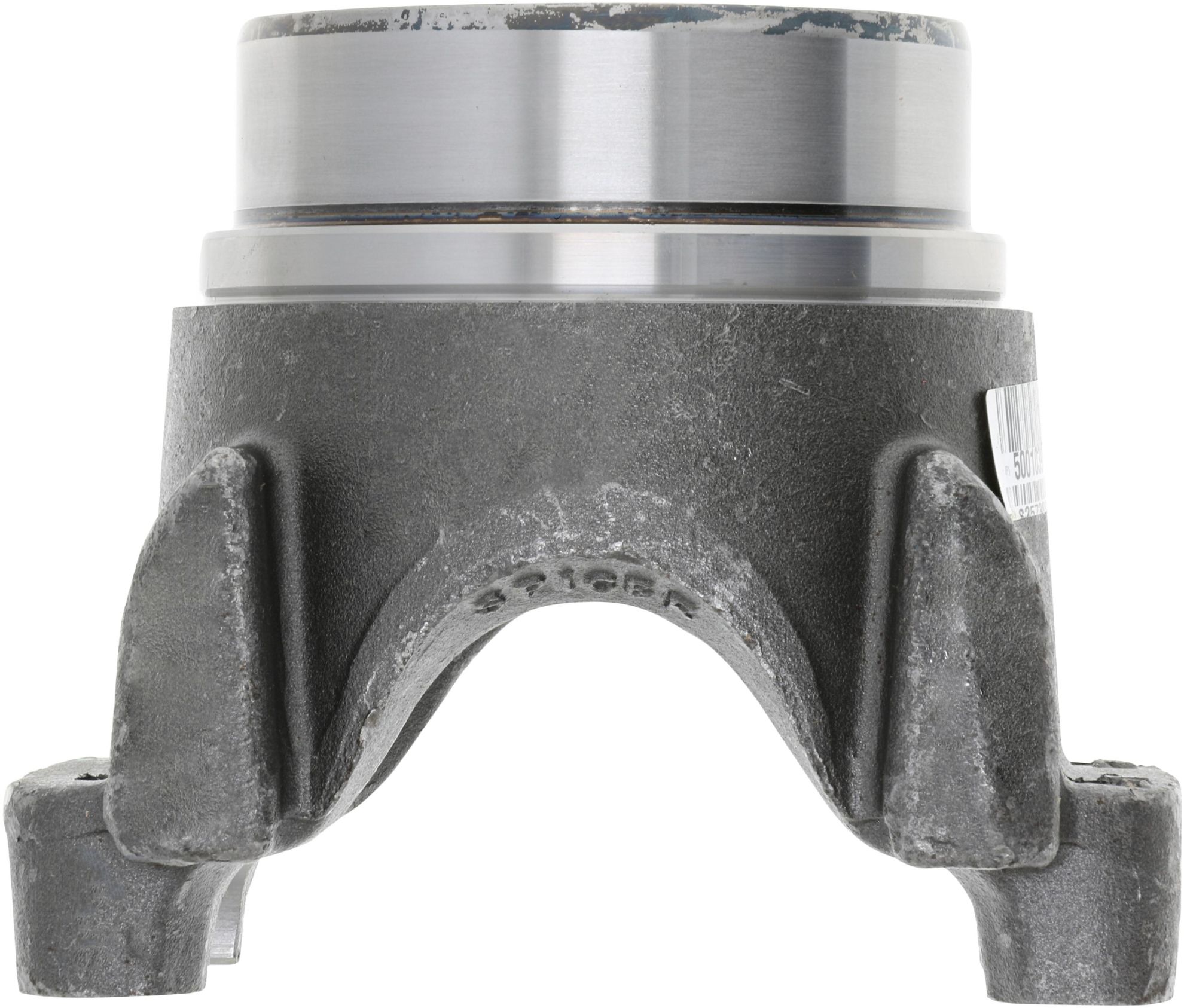

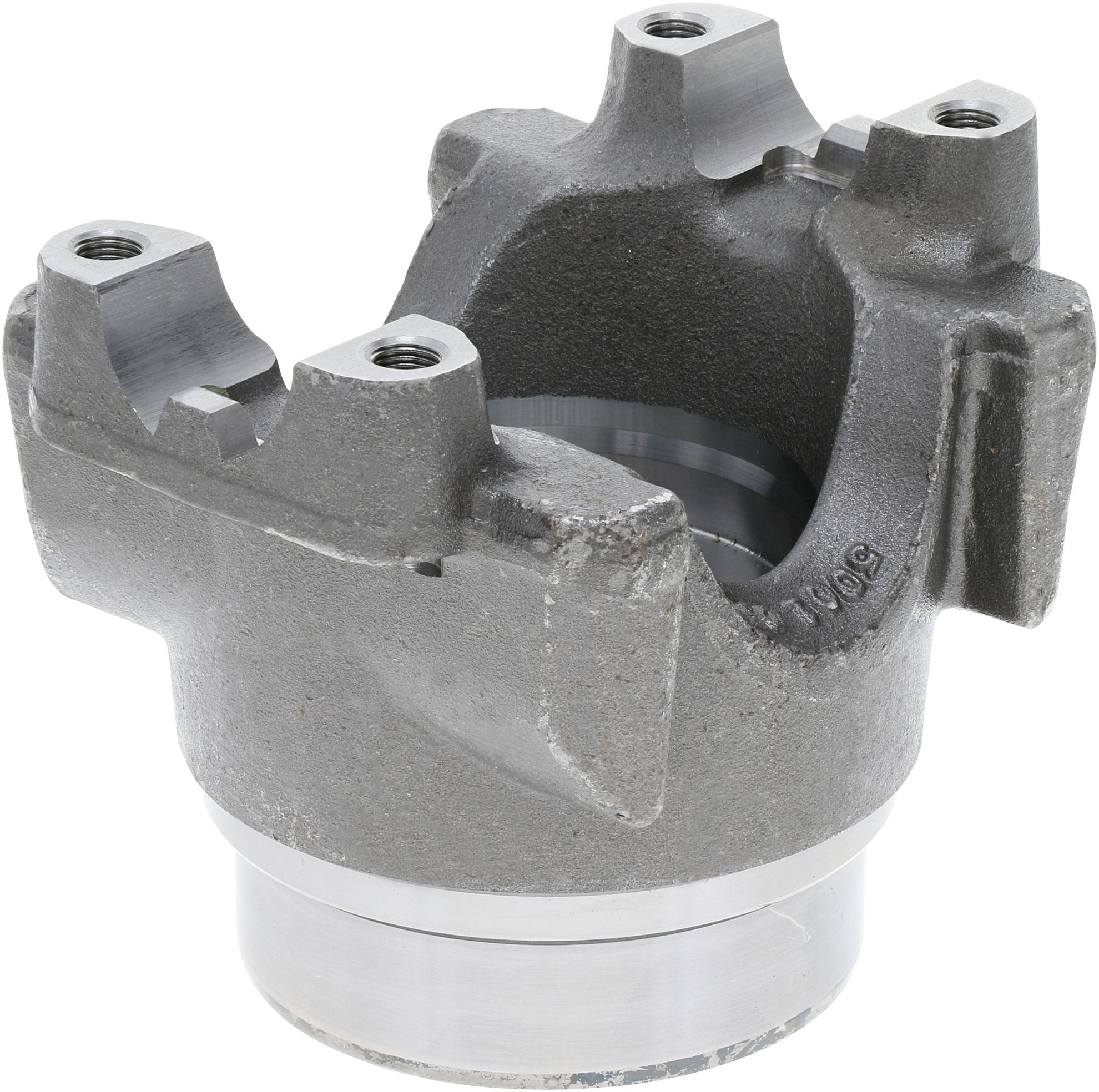

Automatic Transmission Yoke - 1550 Series ; Bearing Strap Style

Manufacturer: Spicer

Manufacturer part number: 5001039

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Yoke Bearing Dimension (In) D	1.375
Yoke Style	BS
Major Diameter	2.178
C/L To End Hub S	4.570
Joint Angle #1	24.5
Series	1550
Material	Steel
Spline Count	41
Type	Splined Hole
Hub Diameter R	3.540
Includes Slinger/Plug	No
Involute Spline	Y
Length Thru Hole Q	1.874
Outside Yoke Dimension In.(E)	4.964
Prop 65	NO
Note	Allison No. 29540323
C-Bore Depth	0.118
C-Bore Diameter	3.268
Country of Origin	MX
Condition	New
