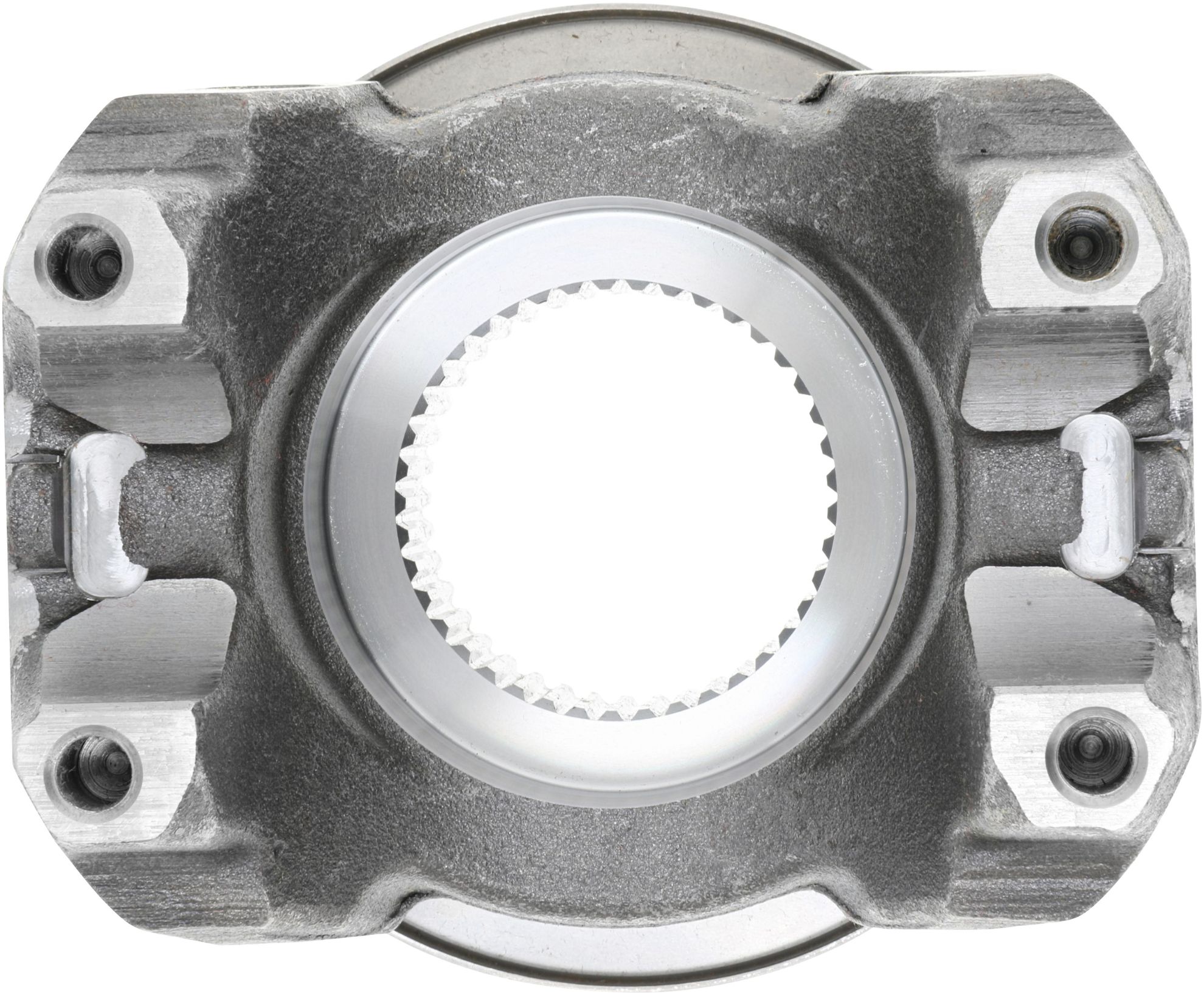

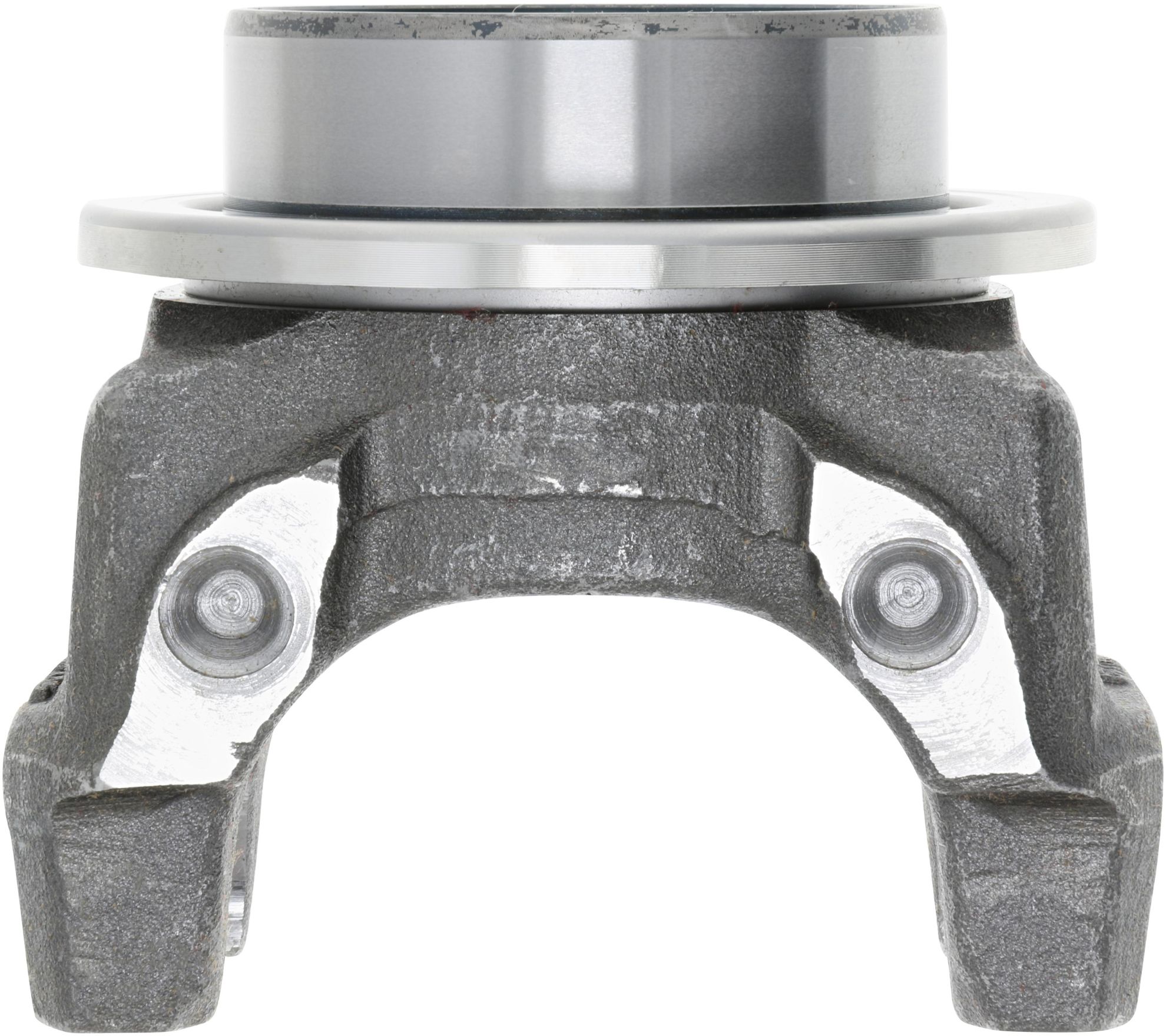

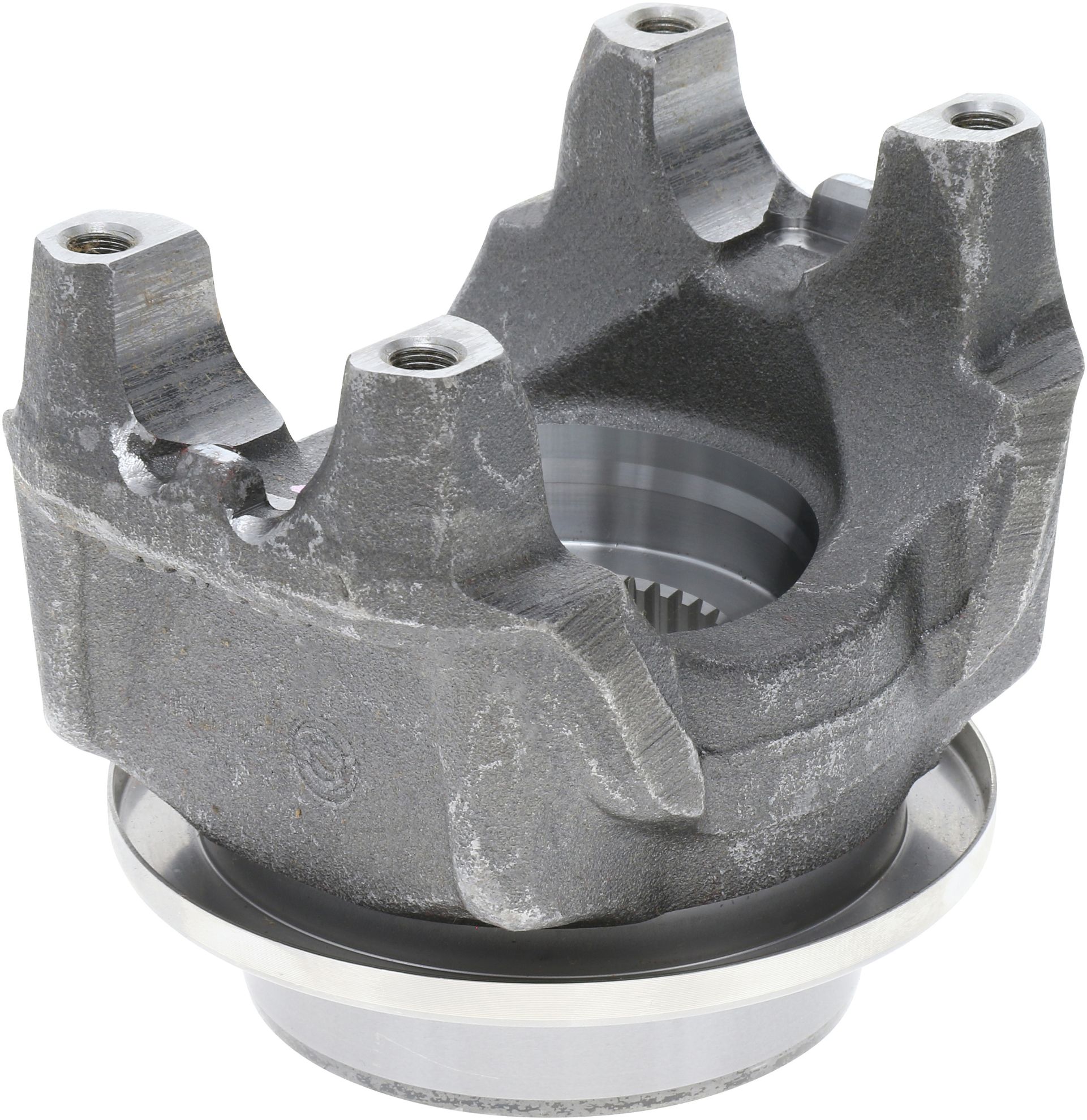

Spicer Automatic Transmission Yoke - 5001046

Name: Spicer Automatic Transmission Yoke - 5001046
SKU: 5001046
Availability: InStock

Automatic Transmission End Yoke - SPL90 Series; Half Round

Manufacturer: Spicer

Manufacturer part number: 5001046

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Application: ALLISON - 0000 MD (ALL)

Products specifications

Attribute name	Attribute value
Series	SPL100
Material	Steel
Spline Count	41
Type	Splined Hole
Hub Diameter R	3.543
Includes Slinger/Plug	5001045
Involute Spline	Y
Length Thru Hole Q	1.882
Outside Yoke Dimension In.(E)	4.958
Yoke Bearing Dimension (In) D	1.625
Yoke Style	BS
Major Diameter	2.178
Note	Allison No. 29540316
C/L To End Hub S	4.570
C-Bore Depth	0.118
C-Bore Diameter	3.268
Joint Angle #1	14.5
Prop 65	NO
Country of Origin	MX
Condition	New
