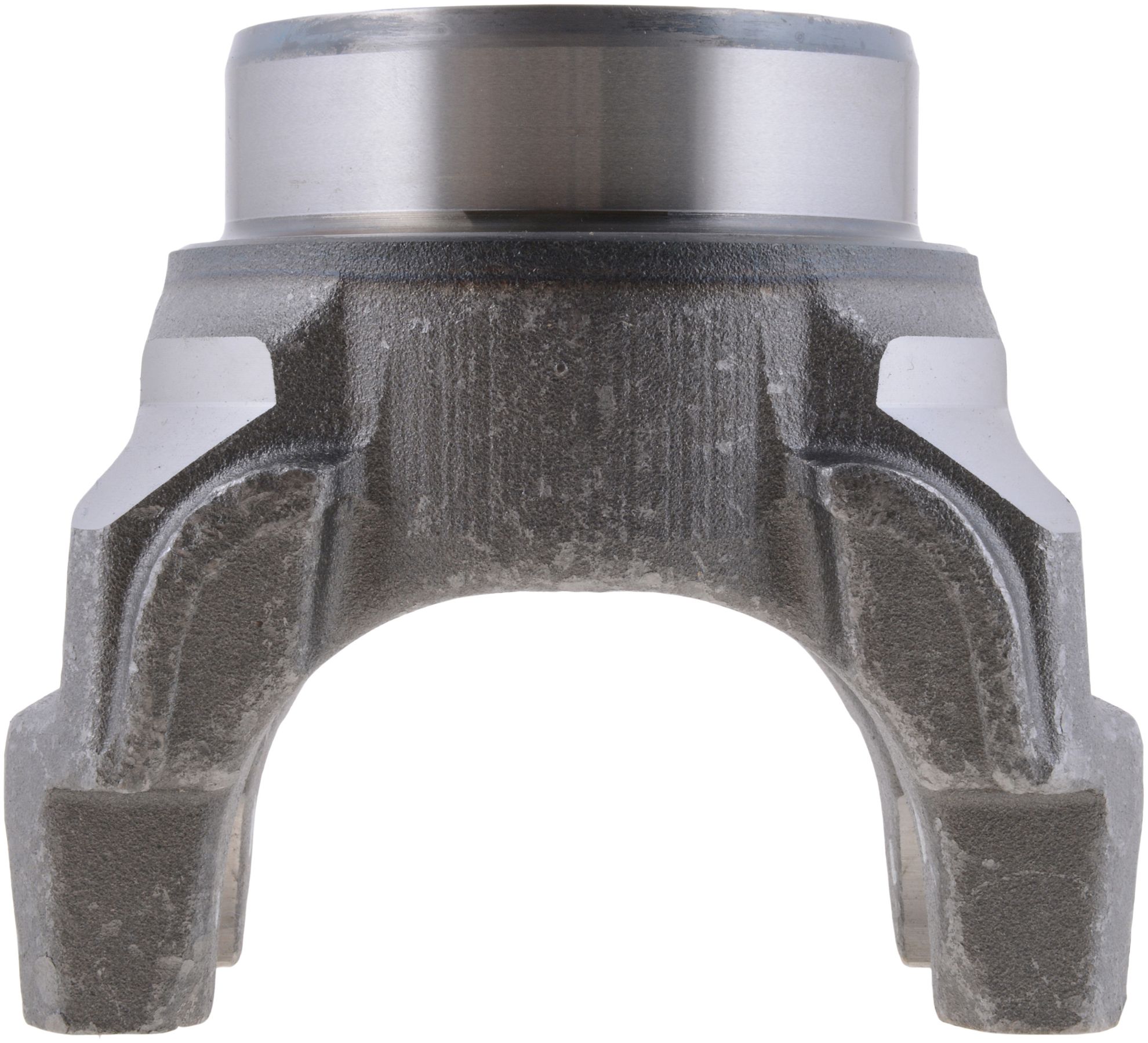

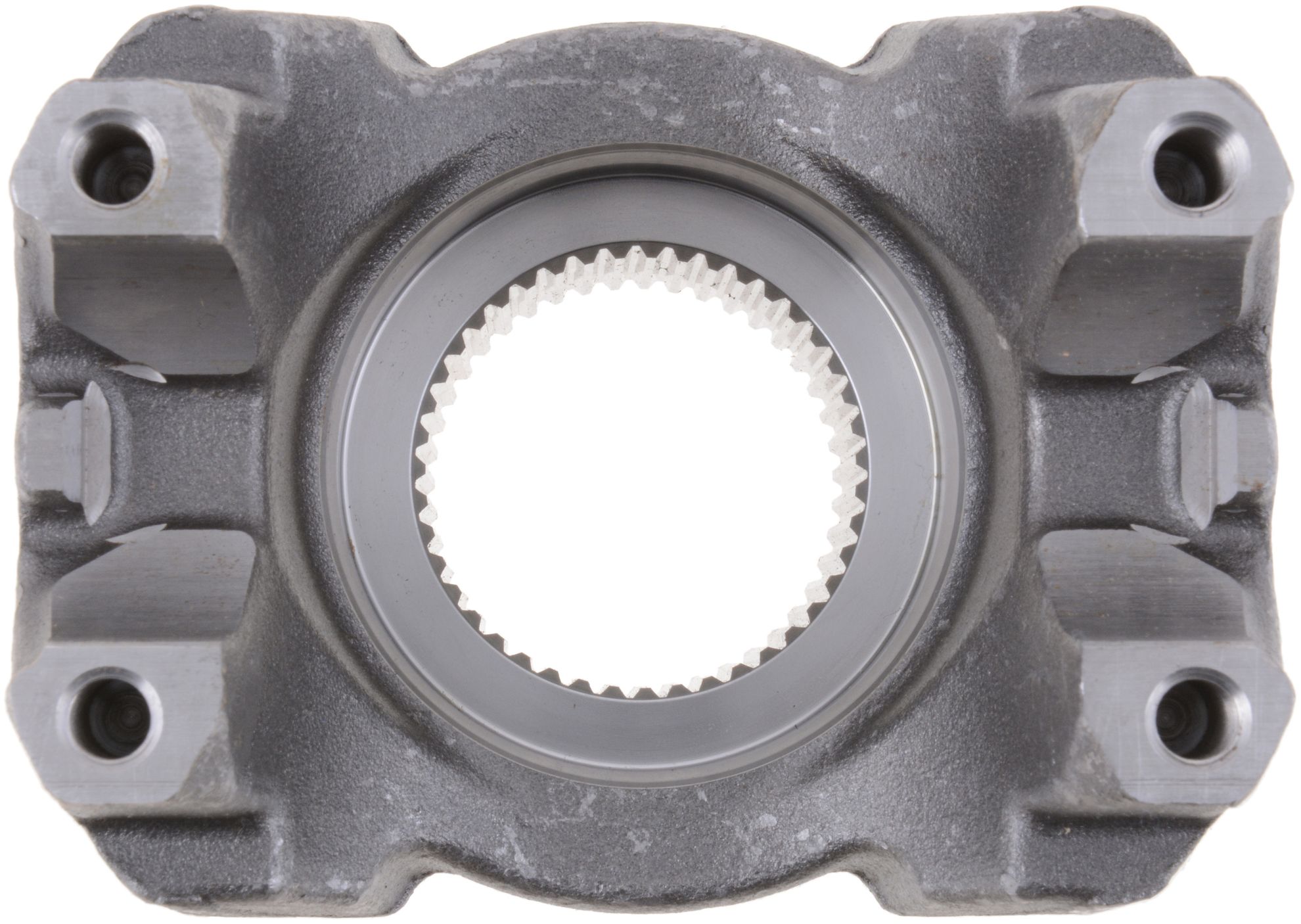

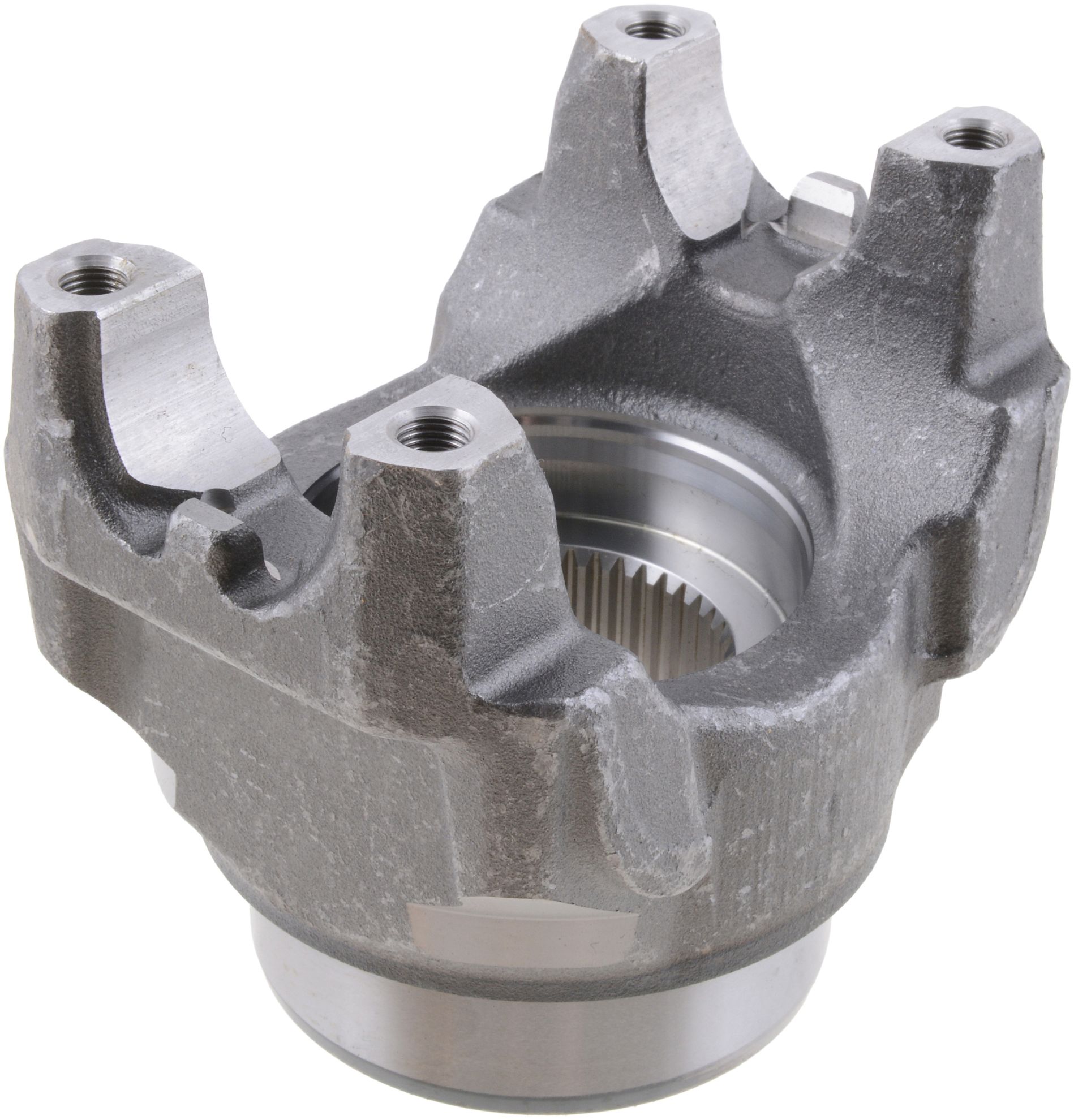

Spicer Automatic Transmission Yoke - 90-4-791-1

Name: Spicer Automatic Transmission Yoke - 90-4-791-1
SKU: 90-4-791-1
Availability: InStock

Automatic Transmission Yoke; Output End Yoke

Manufacturer: Spicer

Manufacturer part number: 90-4-791-1

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL90
Material	Steel
Spline Count	43
Type	Splined Hole
Assembly	N
Includes Slinger/Plug	N
Involute Spline	I
Yoke Style	BS
Joint Angle #1	15
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Hub Diameter R	3.547
Length Thru Hole Q	2.031
Outside Yoke Dimension In.(E)	5.375
Yoke Bearing Dimension (In) D	1.625
Major Diameter	2.178
C/L To End Hub S	4.625
Prop 65	Yes
C-Bore Depth	0.157
C-Bore Diameter	2.32
Country of Origin	MX
Condition	New
