Spicer Differential Ring and Pinion - 76581-5X

Name: Spicer Differential Ring and Pinion - 76581-5X
SKU: 76581-5X
Availability: OutOfStock

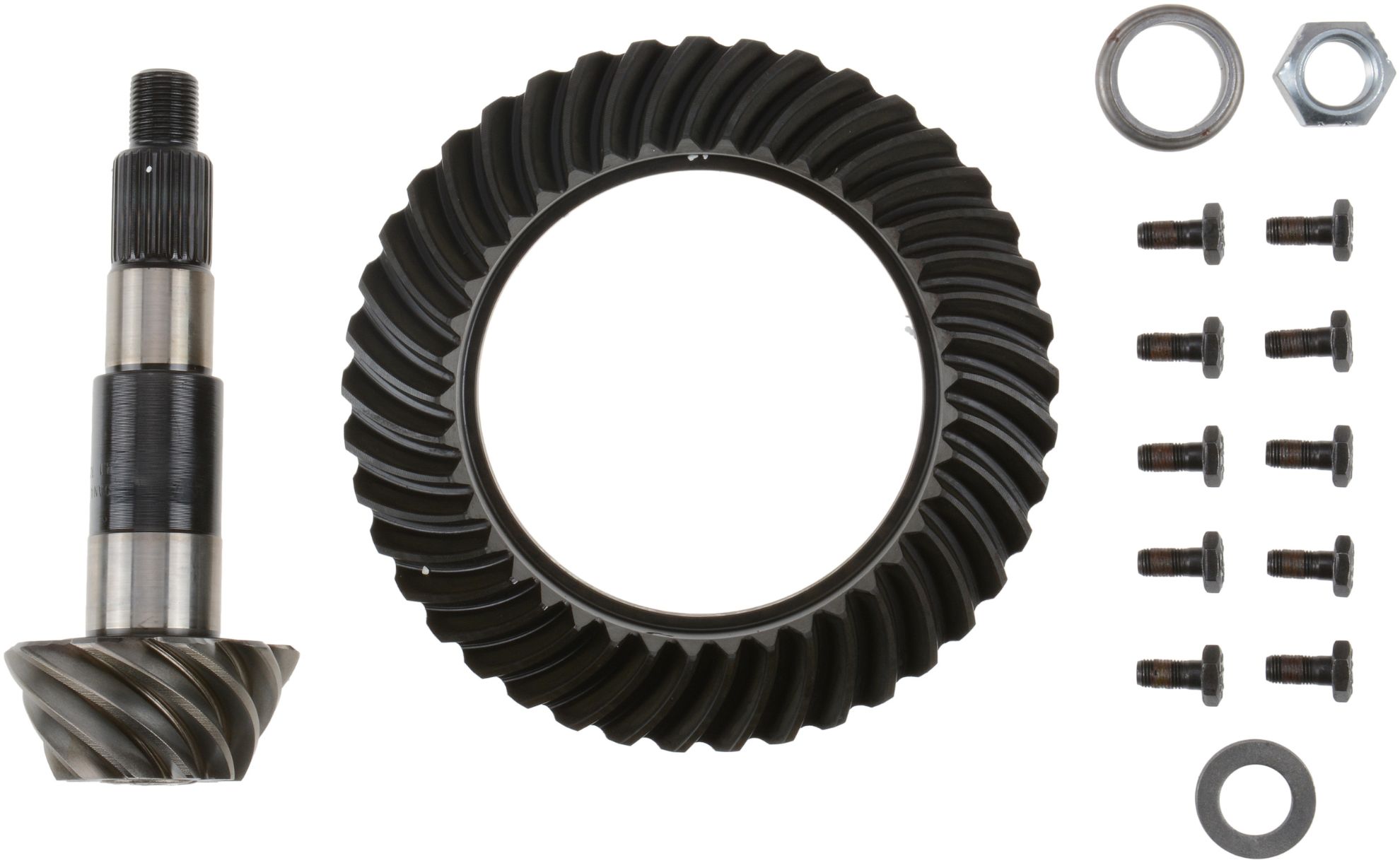

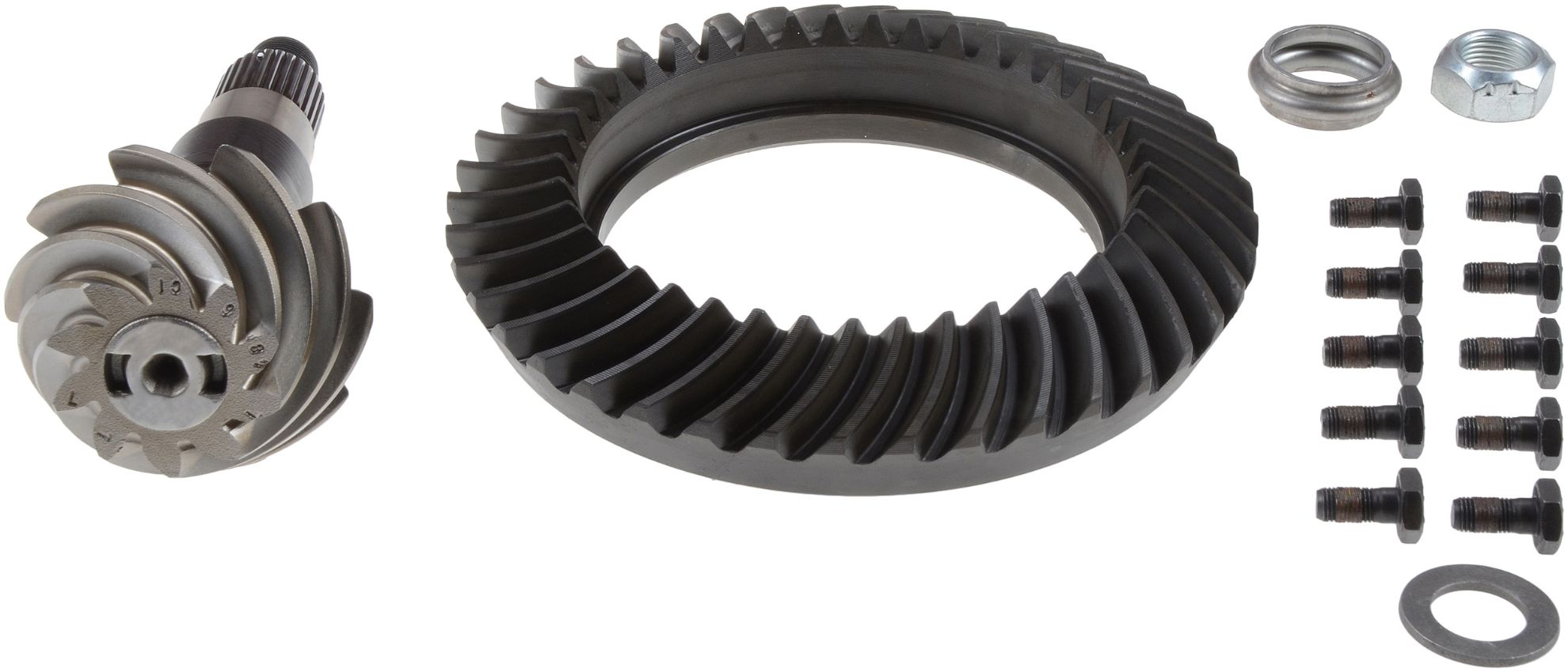

Differential Ring and Pinion - DANA Super 44 - 4.10 Ratio

Manufacturer: Spicer

Manufacturer part number: 76581-5X

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.

Products specifications

Attribute name	Attribute value
Axle Model	Dana 44
Prop 65	NO
Gear Ratio	4.10
Ring Teeth Count	41
Pinion Nut Included	N
Carrier Breaks	None
Cover Bolt Quantity	10
Include Installation Kit	Y
On Vehicle Location	Rear
Pinion Gear Tooth Quantity	10
Pinion Shaft Diameter	1.626
Pinion Spline Count	29
New Or Remanufactured	New
Pinion Gear Included	Y
Ring Gear Included	Y
Axle Type	Semi Floating
Ring Gear Rotation	Standard
Ring Gear Diameter (In.)	8.900
Ring Gear Bolt Thread In.	.375-24
Ring Gear Bolt Qty	10
Country of Origin	US
Condition	New
