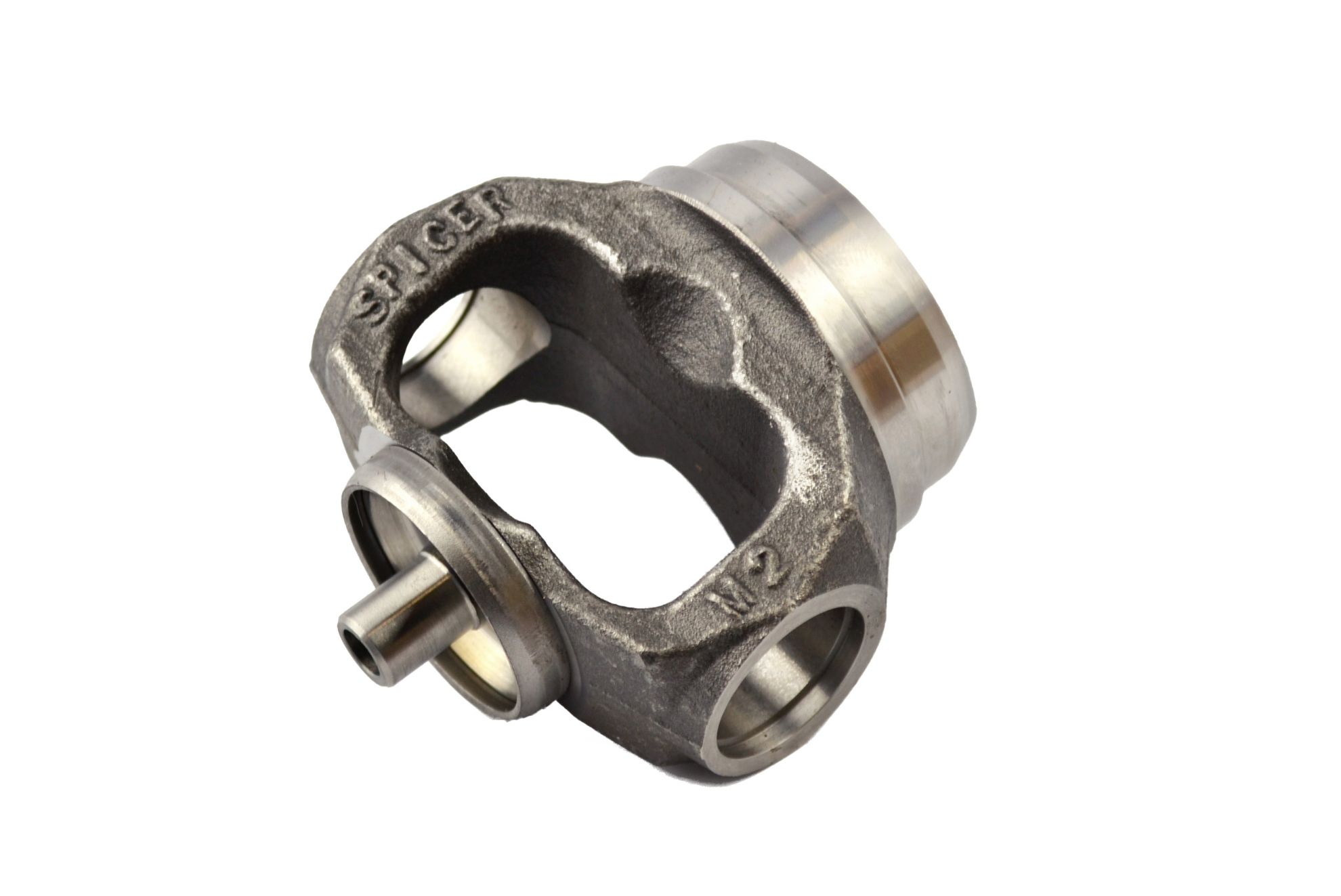

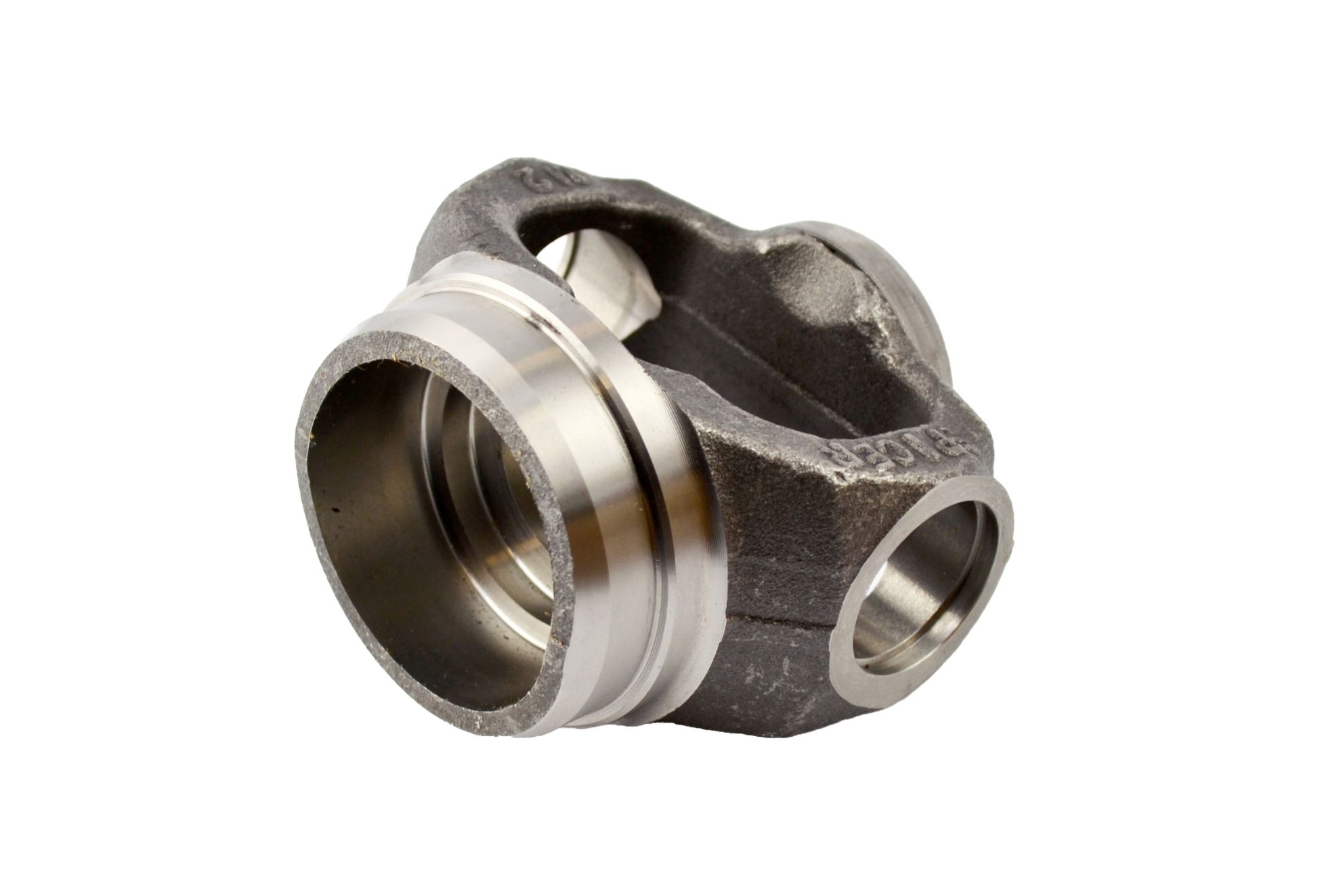

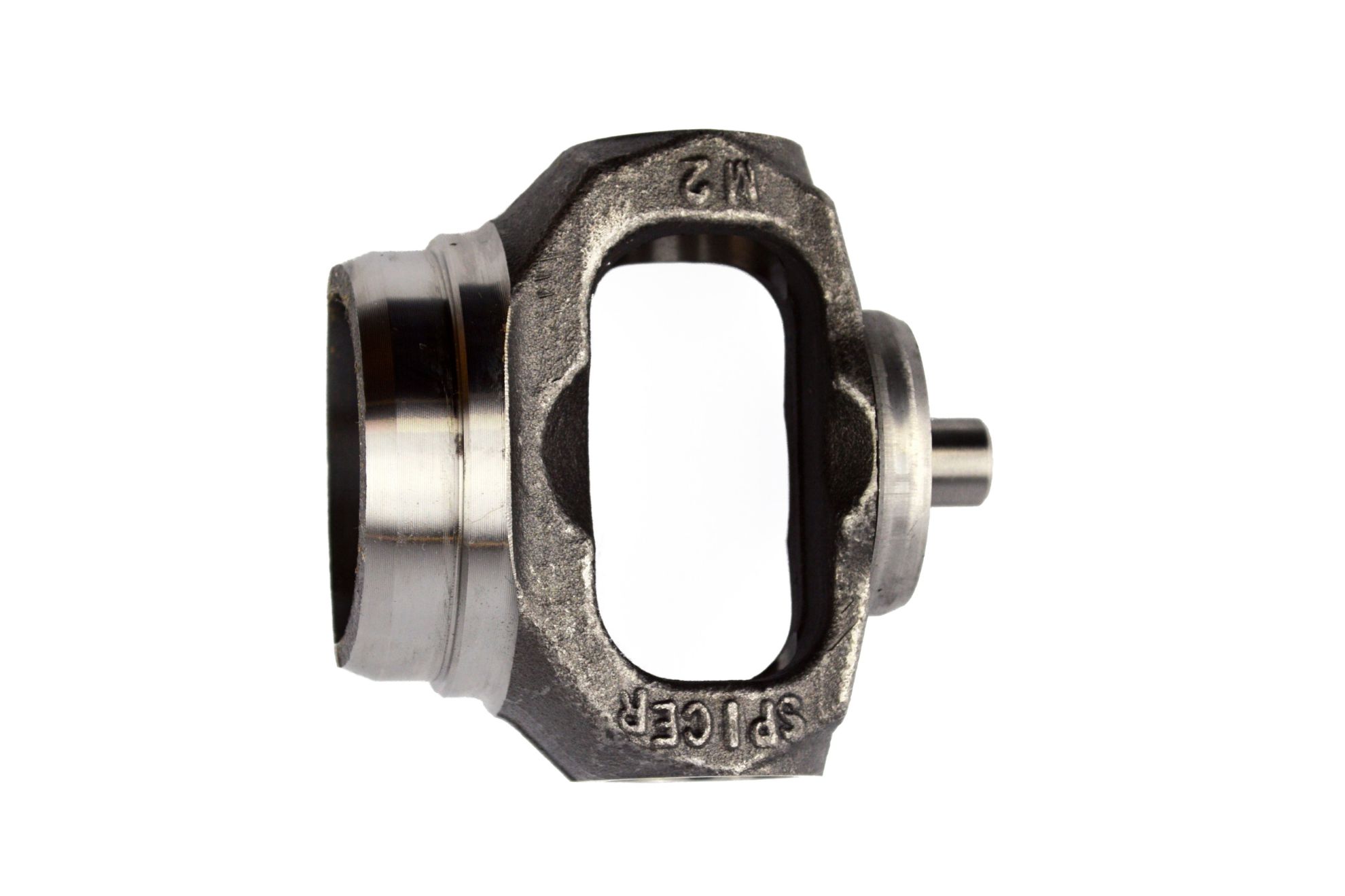

Spicer Double Cardan CV Ball Stud Tube Weld Yoke - 2-28-2957X

Name: Spicer Double Cardan CV Ball Stud Tube Weld Yoke - 2-28-2957X
SKU: 2-28-2957X
Availability: InStock

DOUBLE CARDAN CV BALL STUD TUBE WELD YOKE

Manufacturer: Spicer

Manufacturer part number: 2-28-2957X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310
Material	Steel
Outside Yoke Dimension In.(E)	3.469
Prop 65	NO
Fits Tube Diameter (In)	2.50
Angle #1	13
Ball Stud Diameter (In) H	0.500
Ball Stud Length (In) L	0.594
Butt Diameter (In) F	2.344
C/L To Ball Stud End (In) J	1.641
Fits Tube Wall (In)	0.083
Mfg Process	Welded
Bearing Cap Diameter (In) D	1.062
Slinger Or Seal Part Number	231864
C/L To Weld (In) K	1.440
Country of Origin	US
Condition	New
