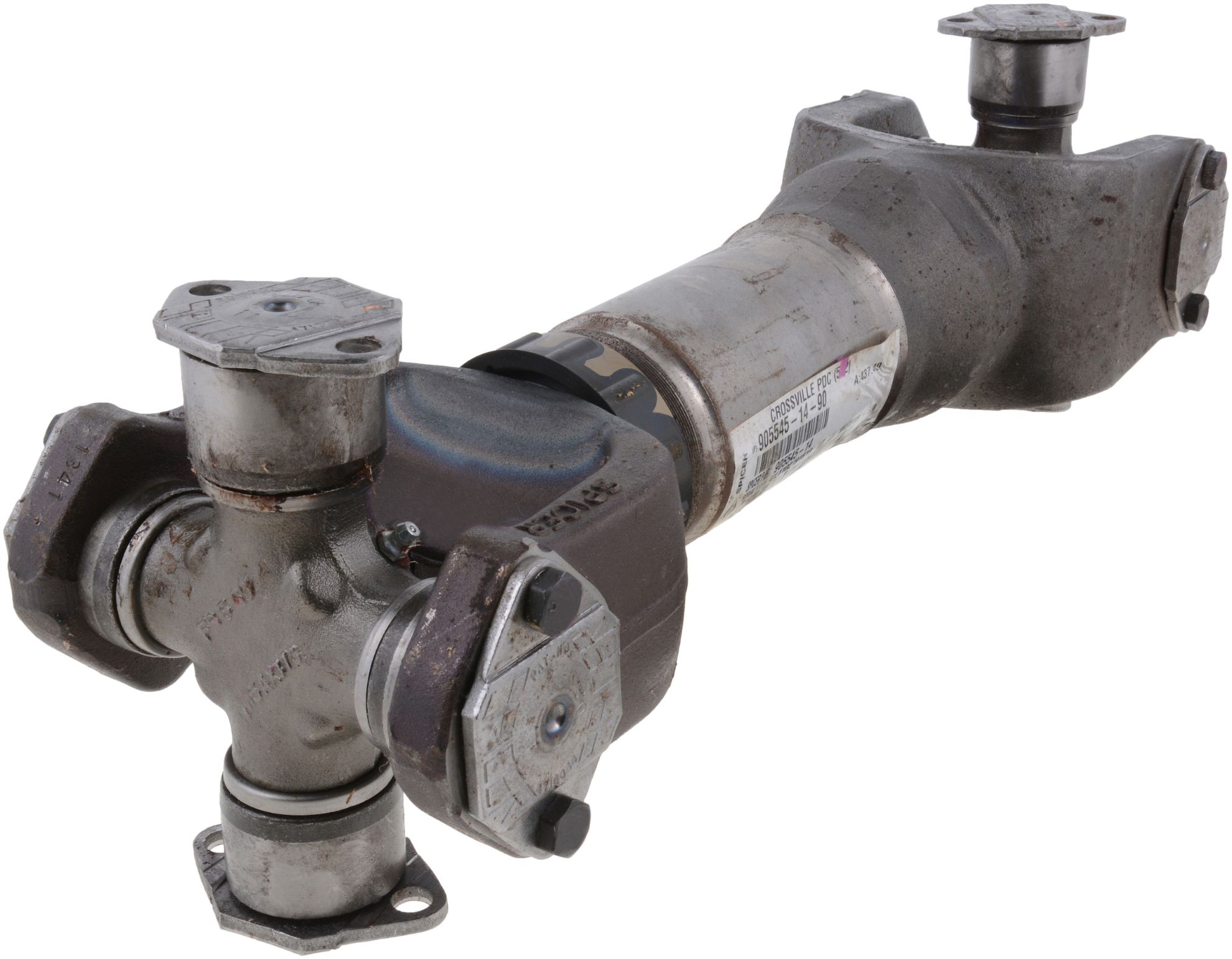

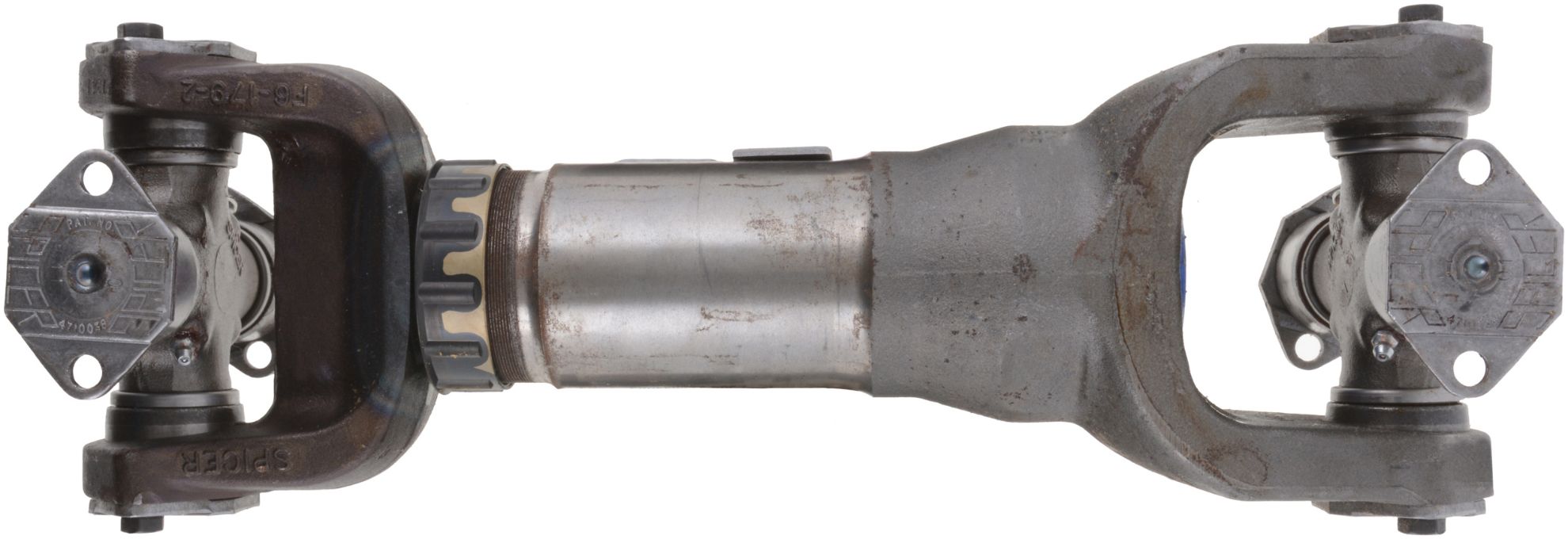

Spicer Drive Shaft - 913962-1

Name: Spicer Drive Shaft - 913962-1
SKU: 913962-1
Availability: OutOfStock

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 913962-1

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1550
Prop 65	NO
Shaft Material	Steel
Max Slip (IN)	1.5000
Max Slip (MM)	38.1000
CL Yoke To CL Yoke (MM) - COLL	208.0000
Mid Slip (MM)	19.0500
Mid Slip (IN)	0.7500
FF(Flange Face) To FF (MM)-COLL	284.2000
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	11.1890
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	11.9390
FF(Flange Face) To FF (MM)-INST	303.2500
1/2 Max Slip (IN)	0.7500
1/2 Max Slip (MM)	19.0500
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	8.1890
End 1 Type SJ Side	4-2-679
CV Joints Included	No
End 2 TJ Side	4-2-679
CL Yoke To Flange Face (MM)-COLL	246.1000
CL Yoke To Flange Face (MM)-INST	265.1500
CL Yoke To Flange Fac e(IN)-COLL	9.6890
Country of Origin	US
Condition	New
