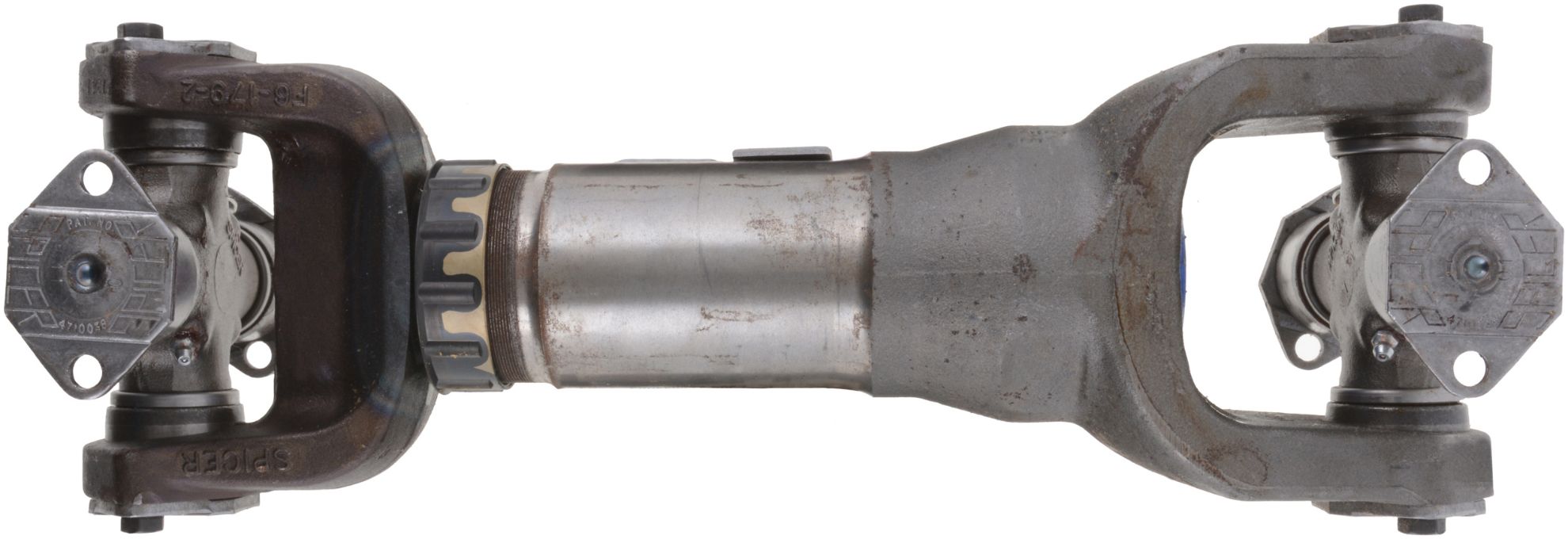

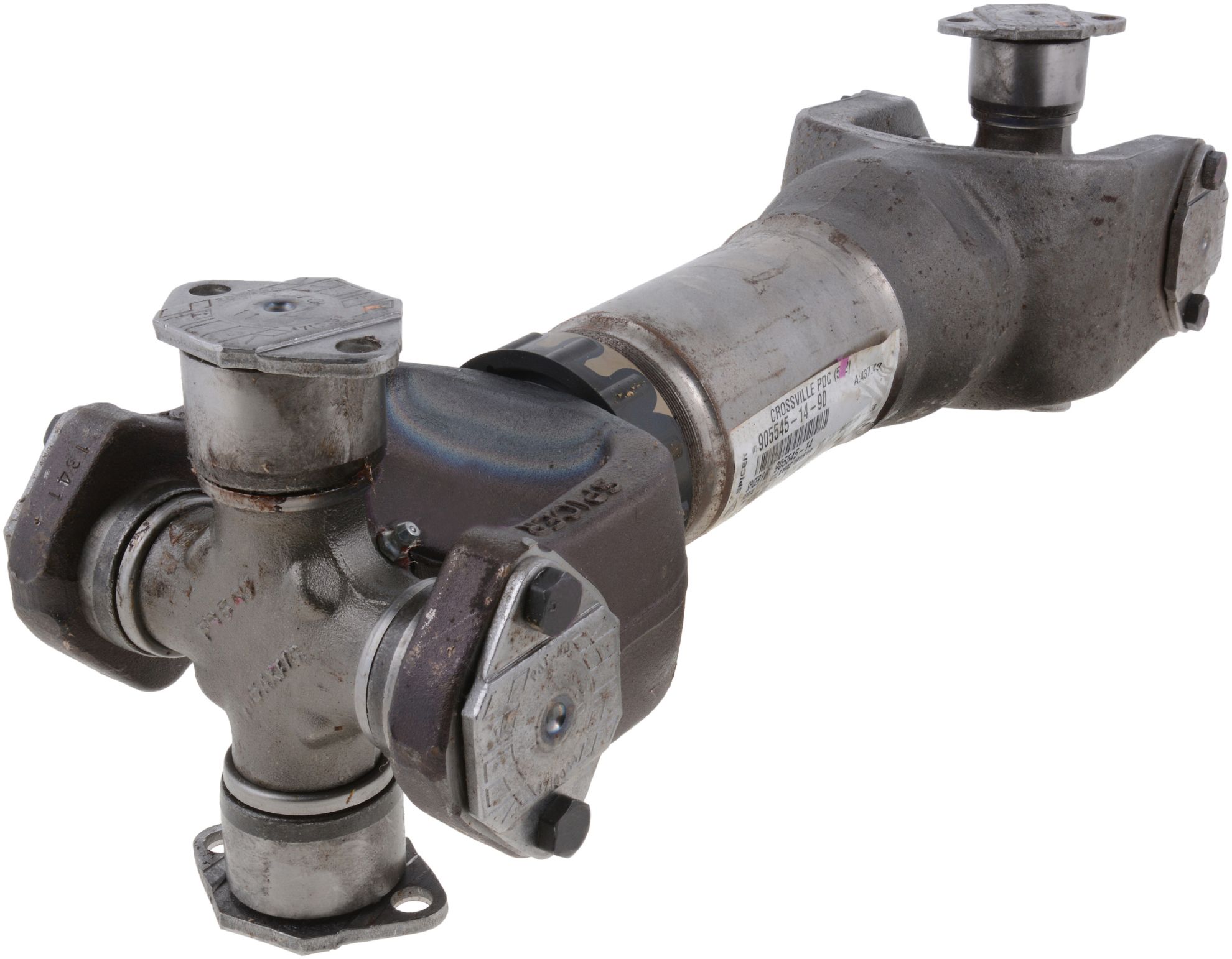

Spicer Drive Shaft - 916213-1

Name: Spicer Drive Shaft - 916213-1
SKU: 916213-1
Availability: OutOfStock

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 916213-1

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1710
Prop 65	NO
Shaft Material	Steel
Max Slip (IN)	2.2480
Max Slip (MM)	57.1000
CL Yoke To CL Yoke (MM) - COLL	289.1000
Mid Slip (MM)	28.5500
Mid Slip (IN)	1.1240
FF(Flange Face) To FF (MM)-COLL	441.5000
Slip Assembly	No
FF(Flange Face) To FF (IN)-COLL	17.3819
Phased (Yes/No)	No
FF(Flange Face) To FF (IN)-INST	18.5059
FF(Flange Face) To FF (MM)-INST	470.0500
1/2 Max Slip (IN)	1.1240
1/2 Max Slip (MM)	28.5500
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	11.3819
End 1 Type SJ Side	6-2-779
CV Joints Included	No
End 2 TJ Side	6-2-779
CL Yoke To Flange Face (MM)-COLL	365.3000
CL Yoke To Flange Face (MM)-INST	393.8500
CL Yoke To Flange Fac e(IN)-COLL	14.3819
Country of Origin	US
Condition	New
