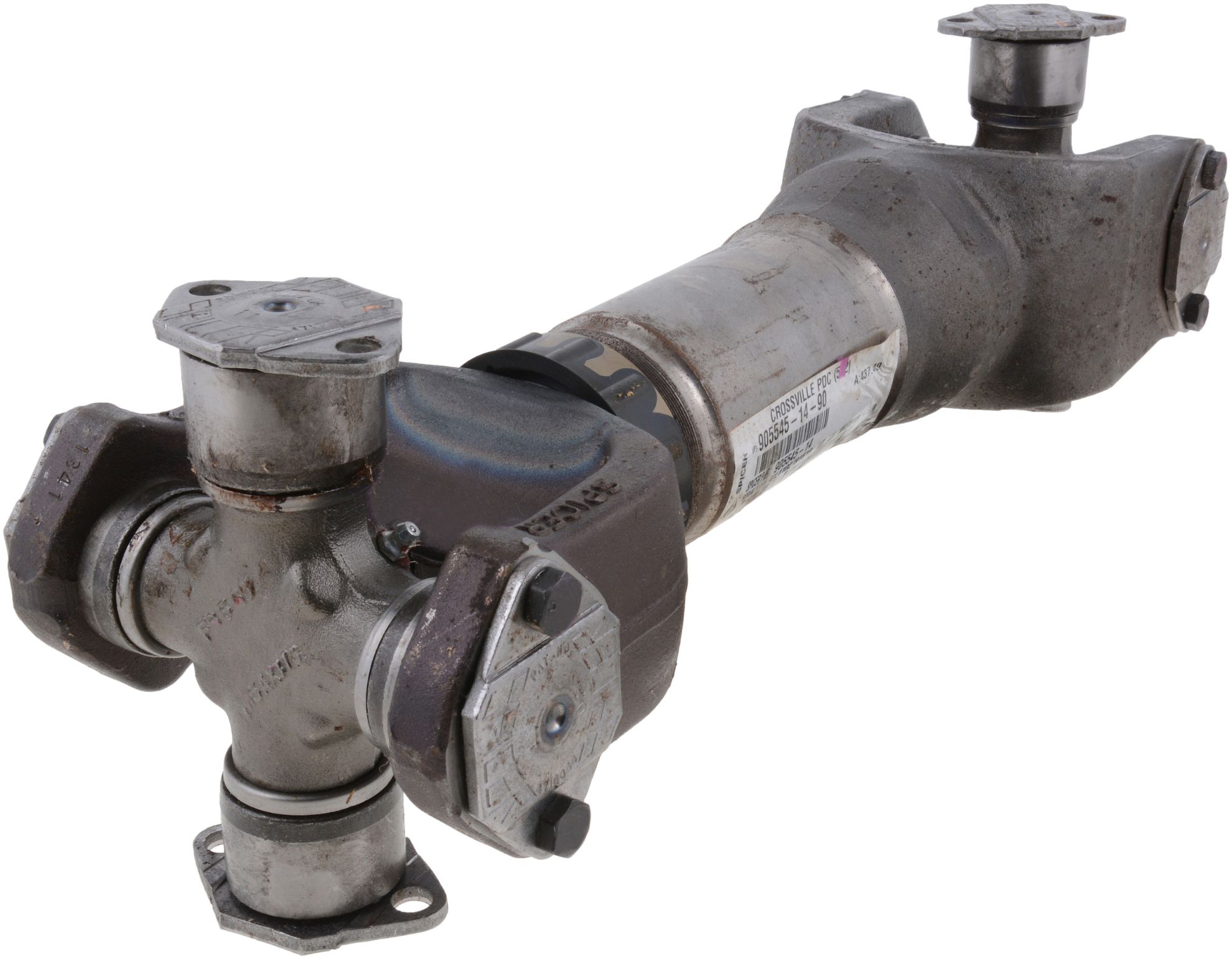

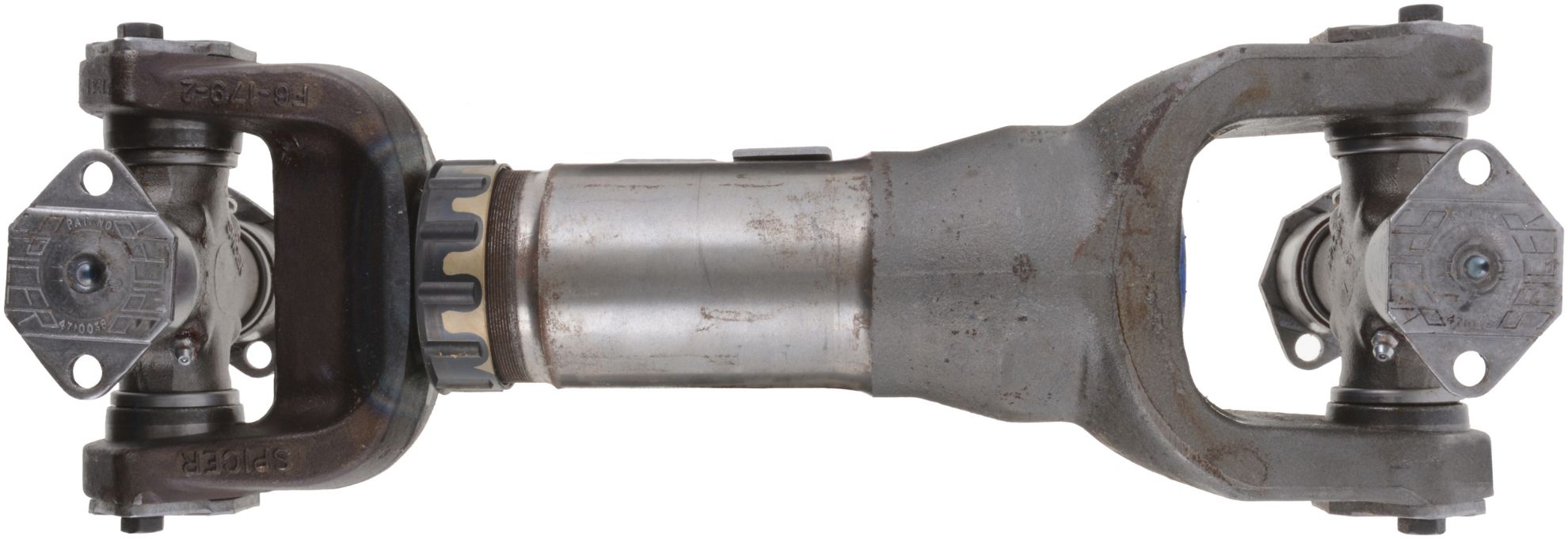

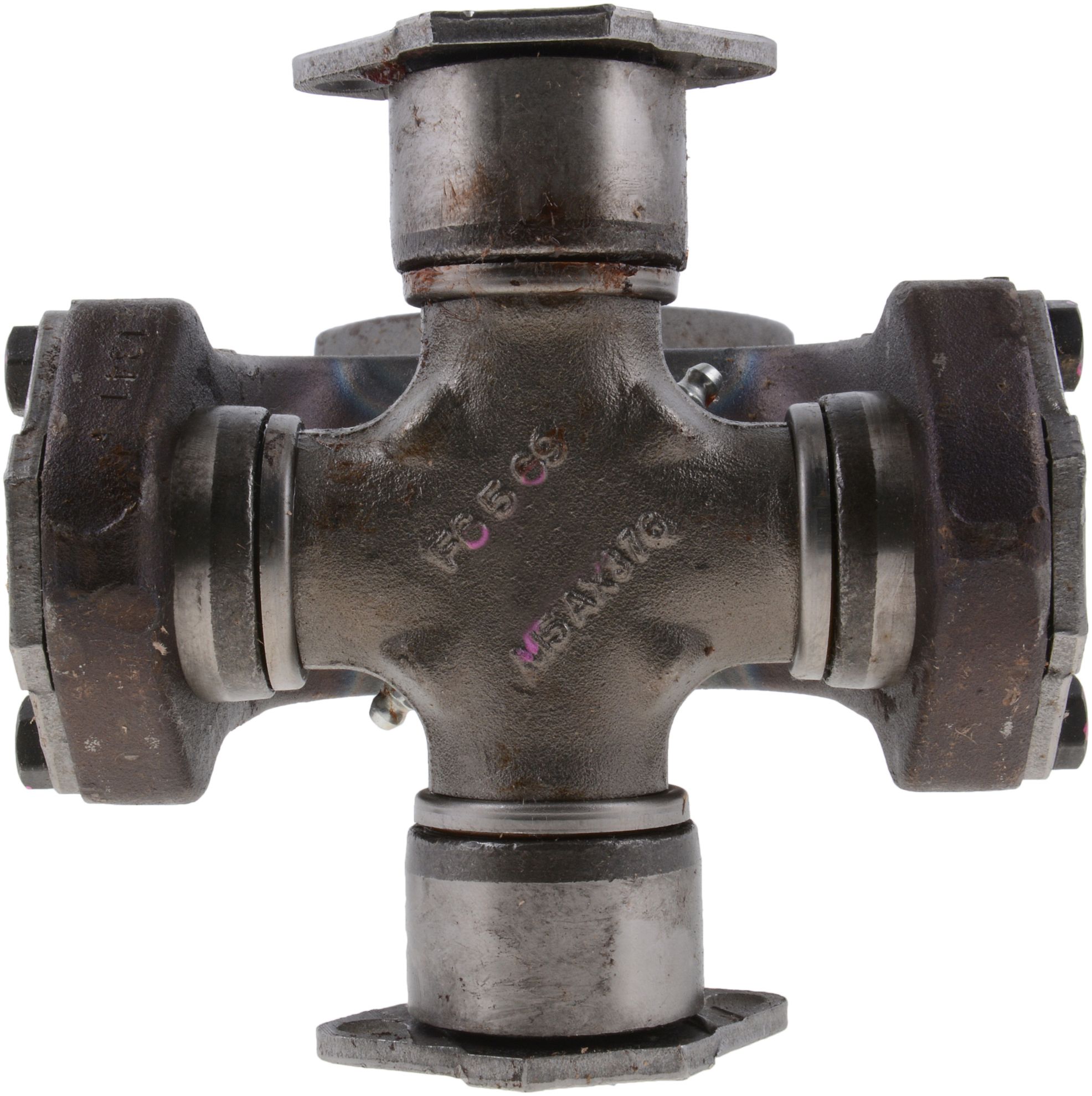

Spicer Drive Shaft - 916971-1

Name: Spicer Drive Shaft - 916971-1
SKU: 916971-1
Availability: OutOfStock

Short Couple Drive Shaft

Manufacturer: Spicer

Manufacturer part number: 916971-1

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1810
Prop 65	NO
CL Yoke To CL Yoke (MM) - COLL	355.6000
Mid Slip (MM)	42.9000
Mid Slip (IN)	1.6890
Slip Assembly	No
Phased (Yes/No)	No
1/2 Max Slip (IN)	1.6890
1/2 Max Slip (MM)	42.9000
Notes	Short Couple
CL Yoke To CL Yoke (IN) - COLL	14.0000
CV Joints Included	No
End 2 TJ Side	6.5-2-329
CL Yoke To Flange Face (MM)-COLL	441.5000
CL Yoke To Flange Face (MM)-INST	484.4000
CL Yoke To Flange Fac e(IN)-COLL	17.3819
Phased - Degrees	0.0000
Unwelded/Welded Assembly	Unwelded
Shaft Material	Steel
Max Slip (IN)	3.3780
Max Slip (MM)	85.8000
Country of Origin	US
Condition	New
