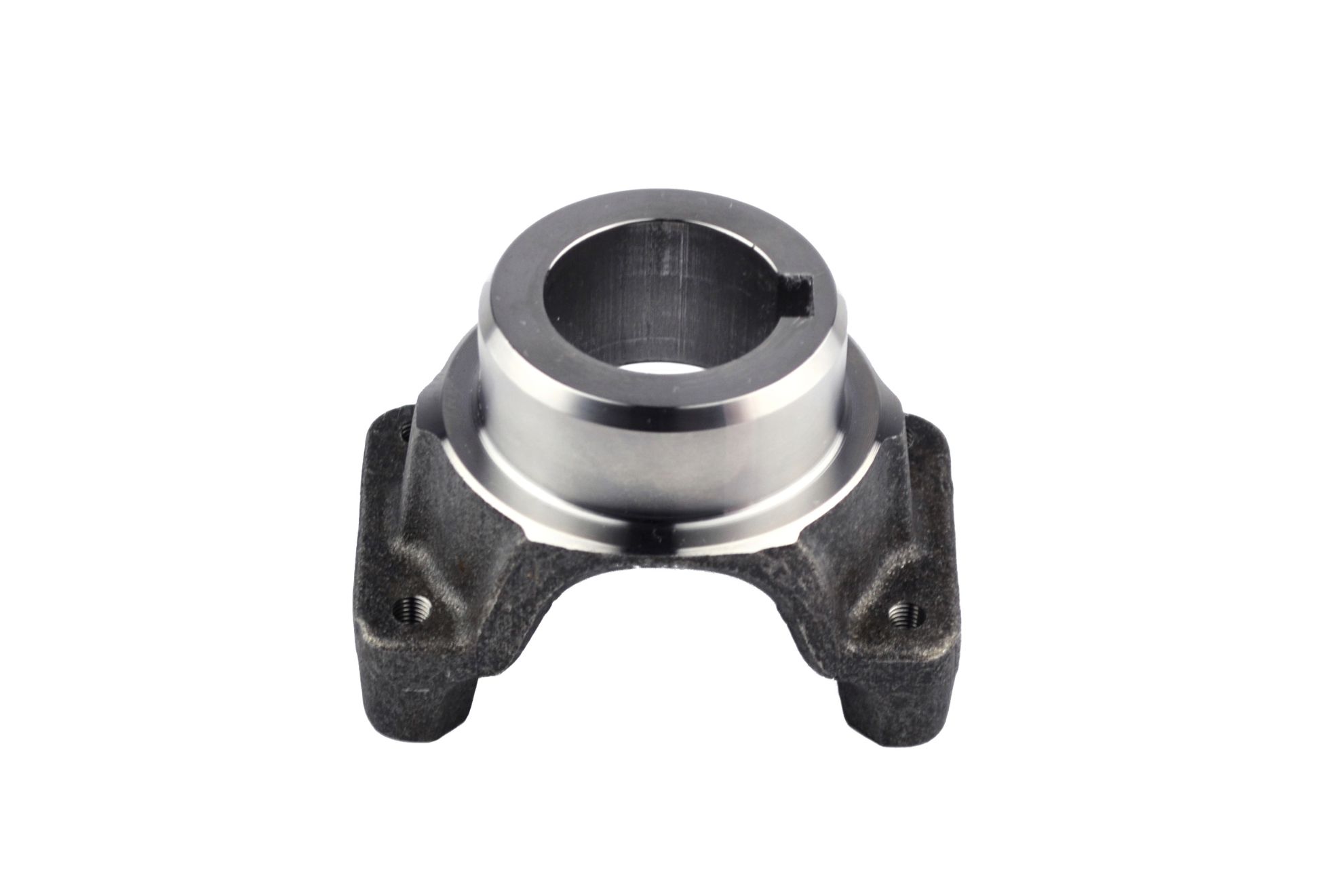

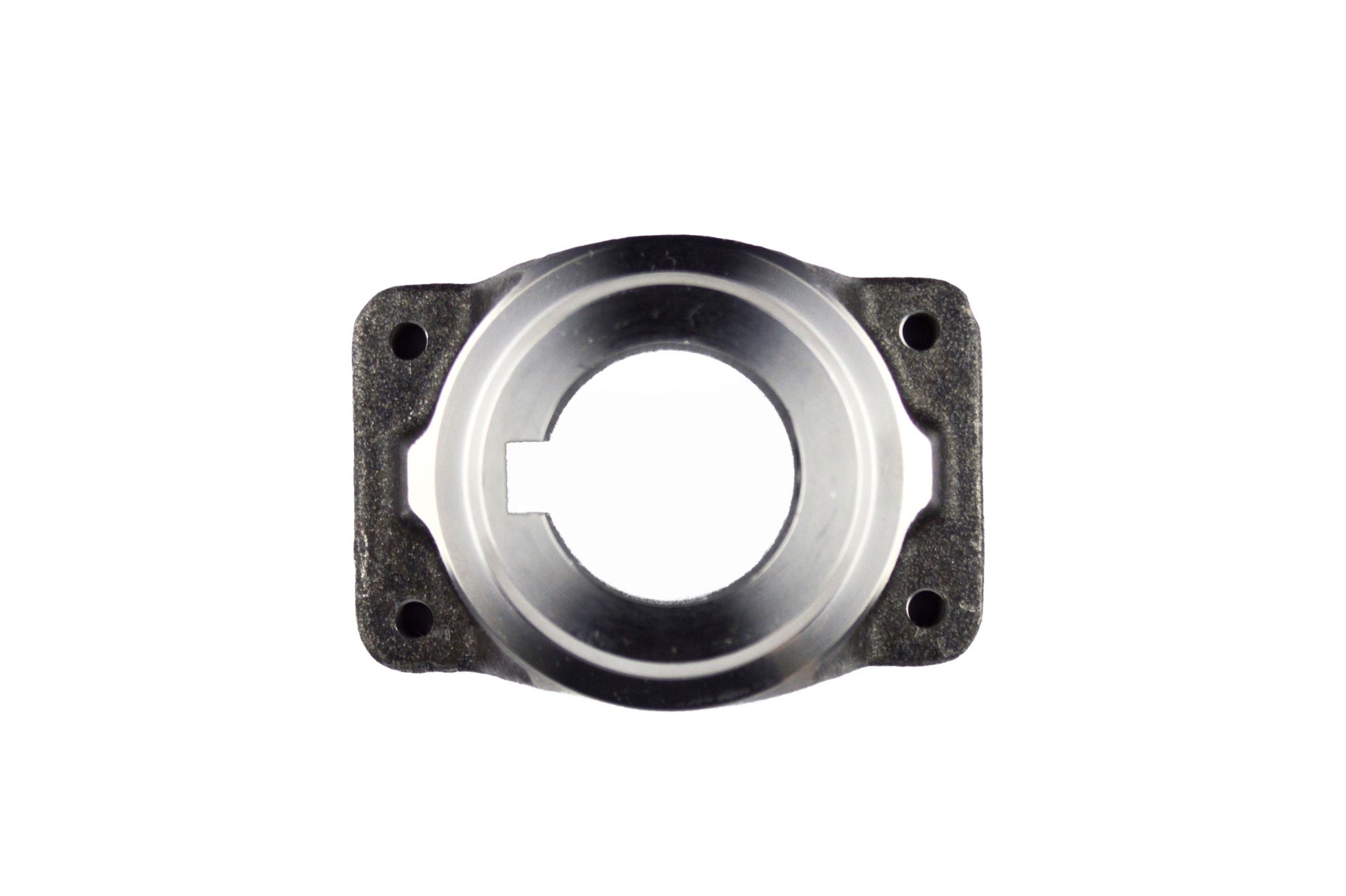

Spicer Drive Shaft End Yoke - 2-4-1053-1

Name: Spicer Drive Shaft End Yoke - 2-4-1053-1
SKU: 2-4-1053-1
Availability: OutOfStock

DRIVE SHAFT END YOKE

Manufacturer: Spicer

Manufacturer part number: 2-4-1053-1

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310
Material	Steel
Type	Straight Round Hole
Hub Diameter R	2.125
Involute Spline	N
Length Thru Hole Q	1.125
Outside Yoke Dimension In.(E)	3.219
Yoke Bearing Dimension (In) D	1.062
Yoke Style	BS
C/L To End Hub S	2.594
Prop 65	NO
Hole Diameter (In) P	1.375
Keyway Location W	12
Sae Keyway Width (In) X	0.375
Set Screw Location W	6
Set Screw Hole Diameter (In)	0.375
Hole Diameter - Max	1.3755
Hole Diameter - Min	1.3745
Keyway Width - Max	0.375
Keyway Width - Min	0.376
Country of Origin	US
Condition	New
