Spicer Drive Shaft End Yoke - 2-4-613

Name: Spicer Drive Shaft End Yoke - 2-4-613
SKU: 2-4-613
Availability: OutOfStock

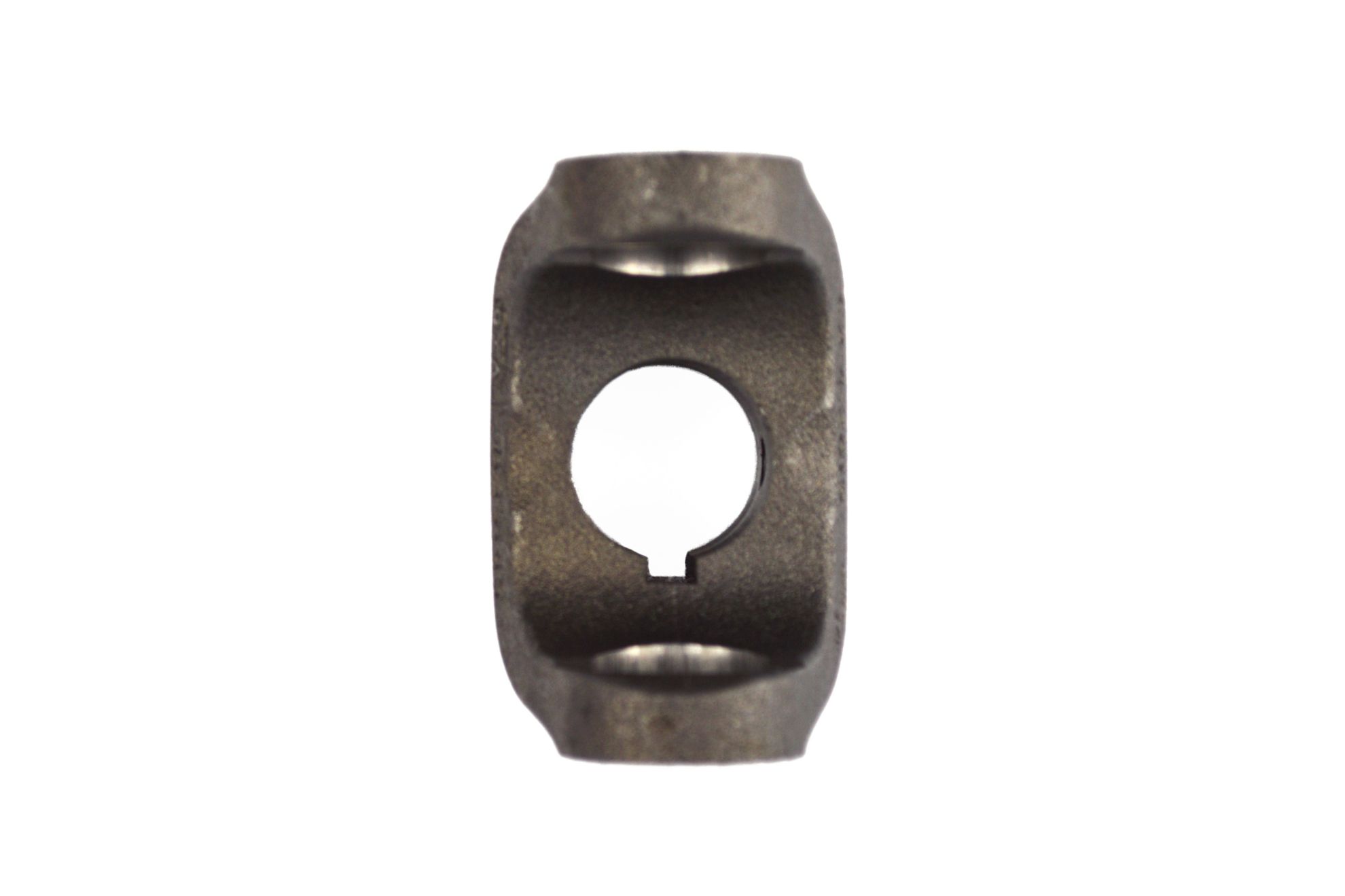

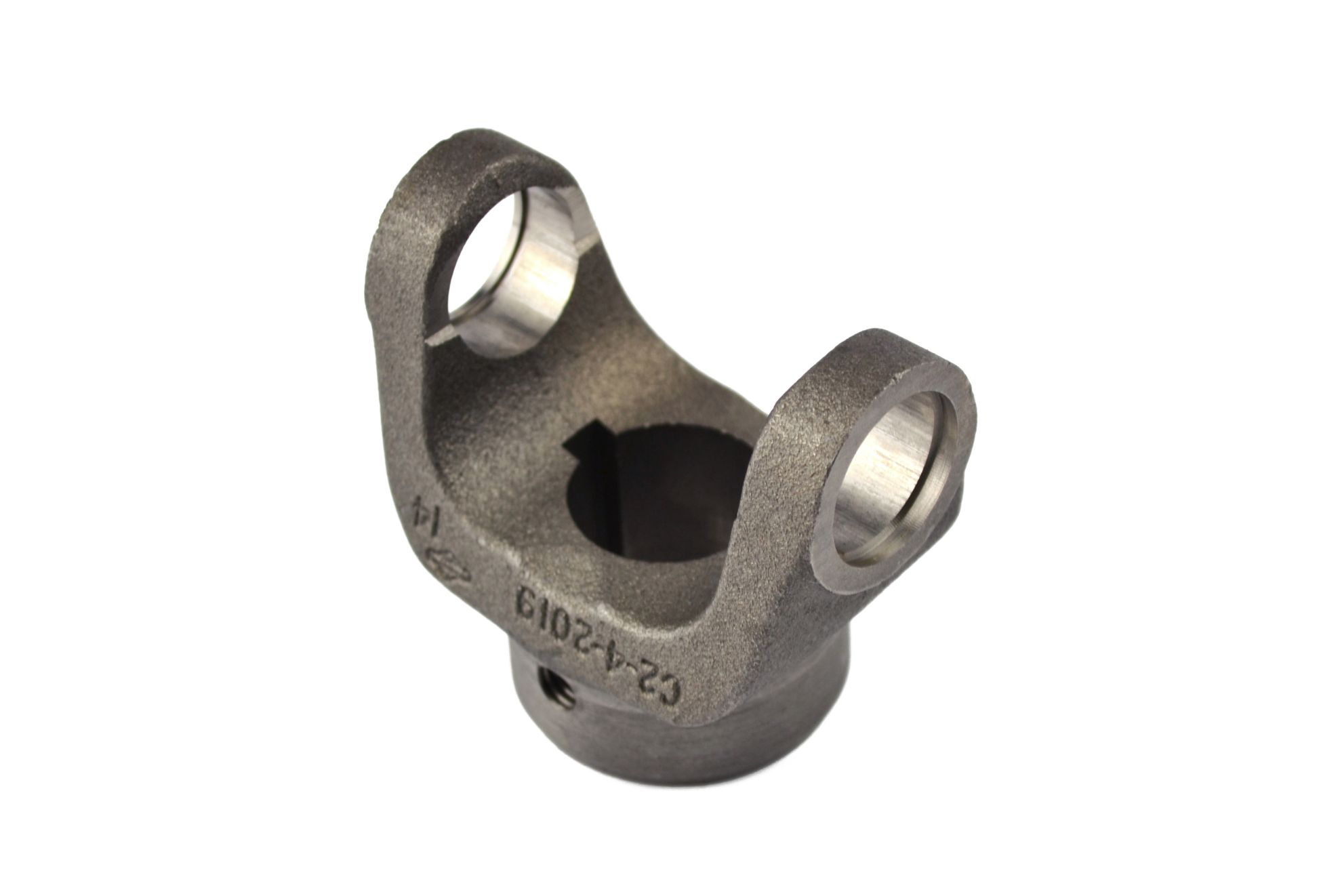

DRIVE SHAFT END YOKE

Manufacturer: Spicer

Manufacturer part number: 2-4-613

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310
Material	Steel
Type	Straight Round Hole
Hub Diameter R	2.125
Involute Spline	N
Outside Yoke Dimension In.(E)	3.469
Yoke Bearing Dimension (In) D	1.062
Yoke Style	SR
C/L To End Hub S	2.561
Joint Angle #1	17
Prop 65	NO
Hole Diameter (In) P	1.250
Keyway Location W	12
Sae Keyway Width (In) X	0.312
Set Screw Hole Diameter (In)	0.375
Hole Diameter - Max	1.2505
Hole Diameter - Min	1.2495
Keyway Width - Max	0.3125
Keyway Width - Min	0.3115
Country of Origin	US
Condition	New
