Spicer Drive Shaft Flange - 5-1-1154

Name: Spicer Drive Shaft Flange - 5-1-1154
SKU: 5-1-1154
Availability: InStock

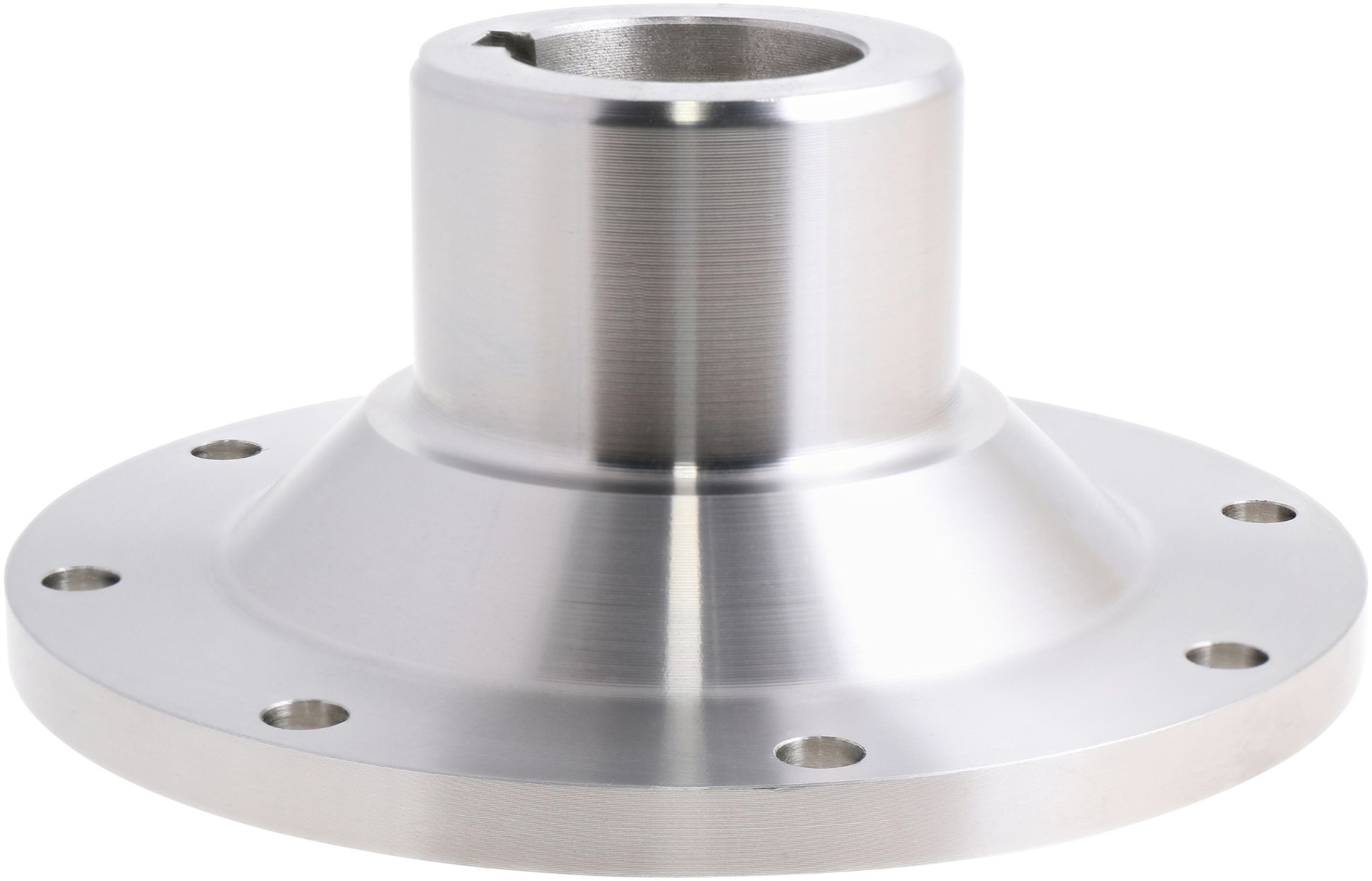

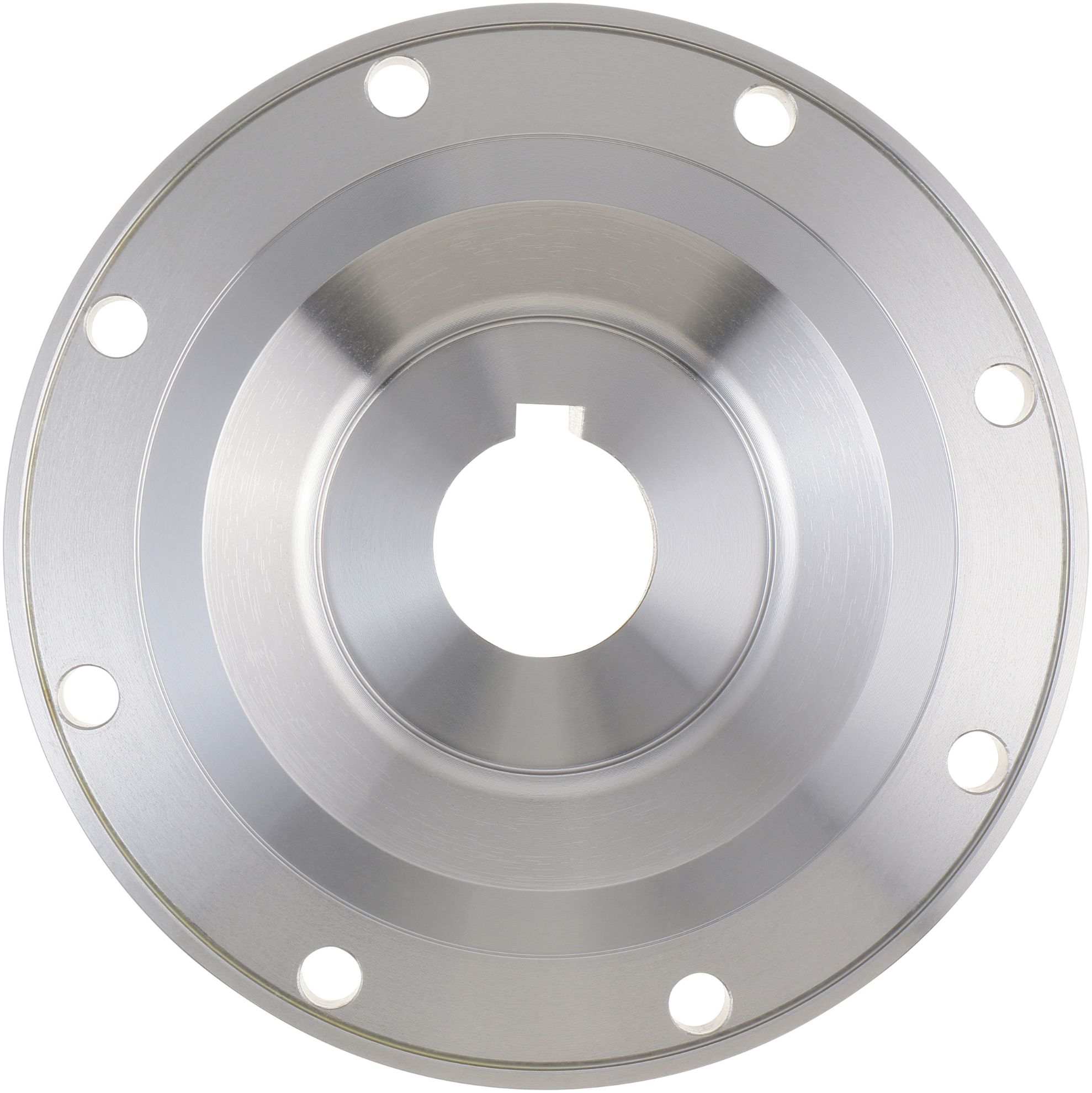

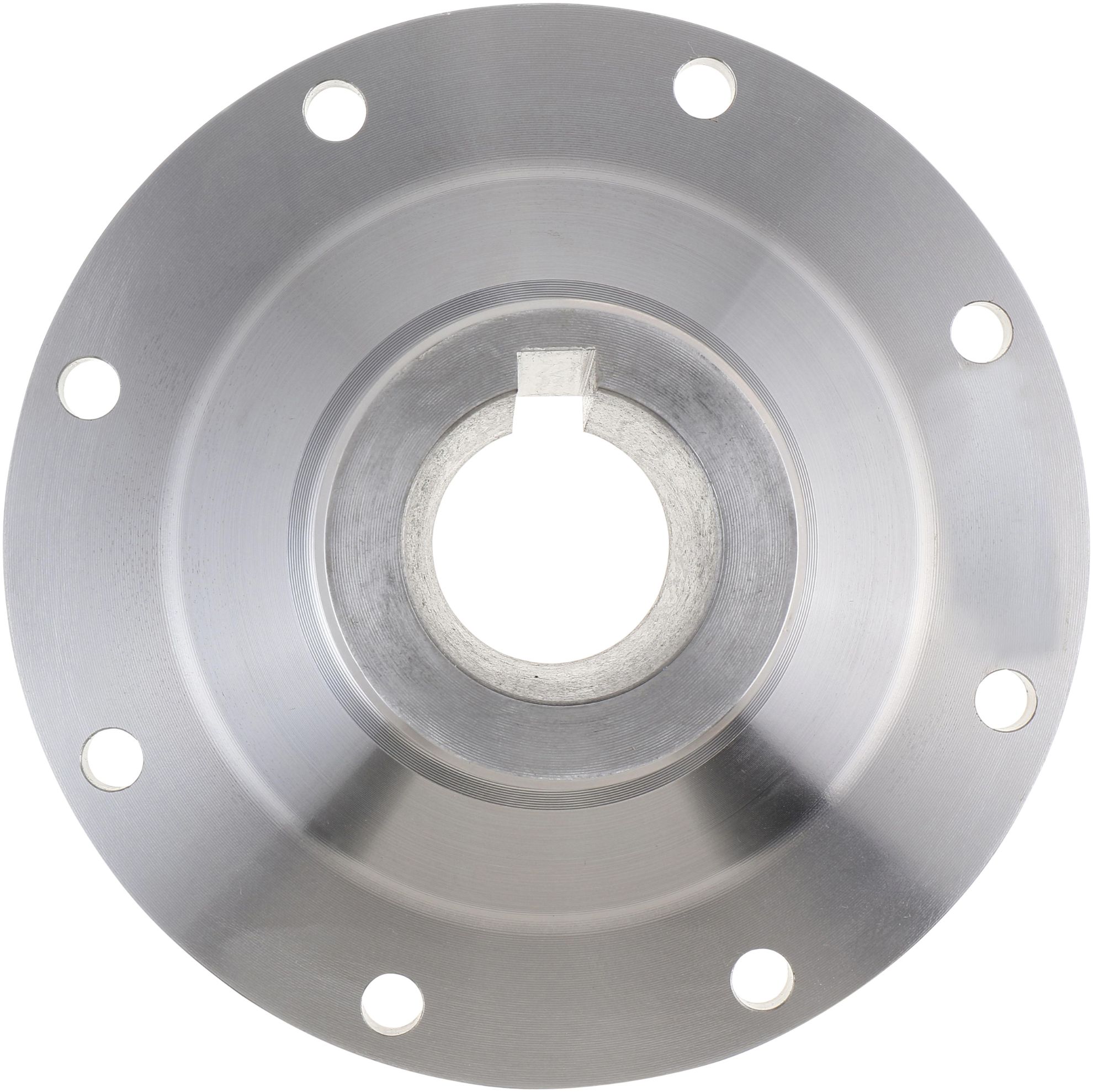

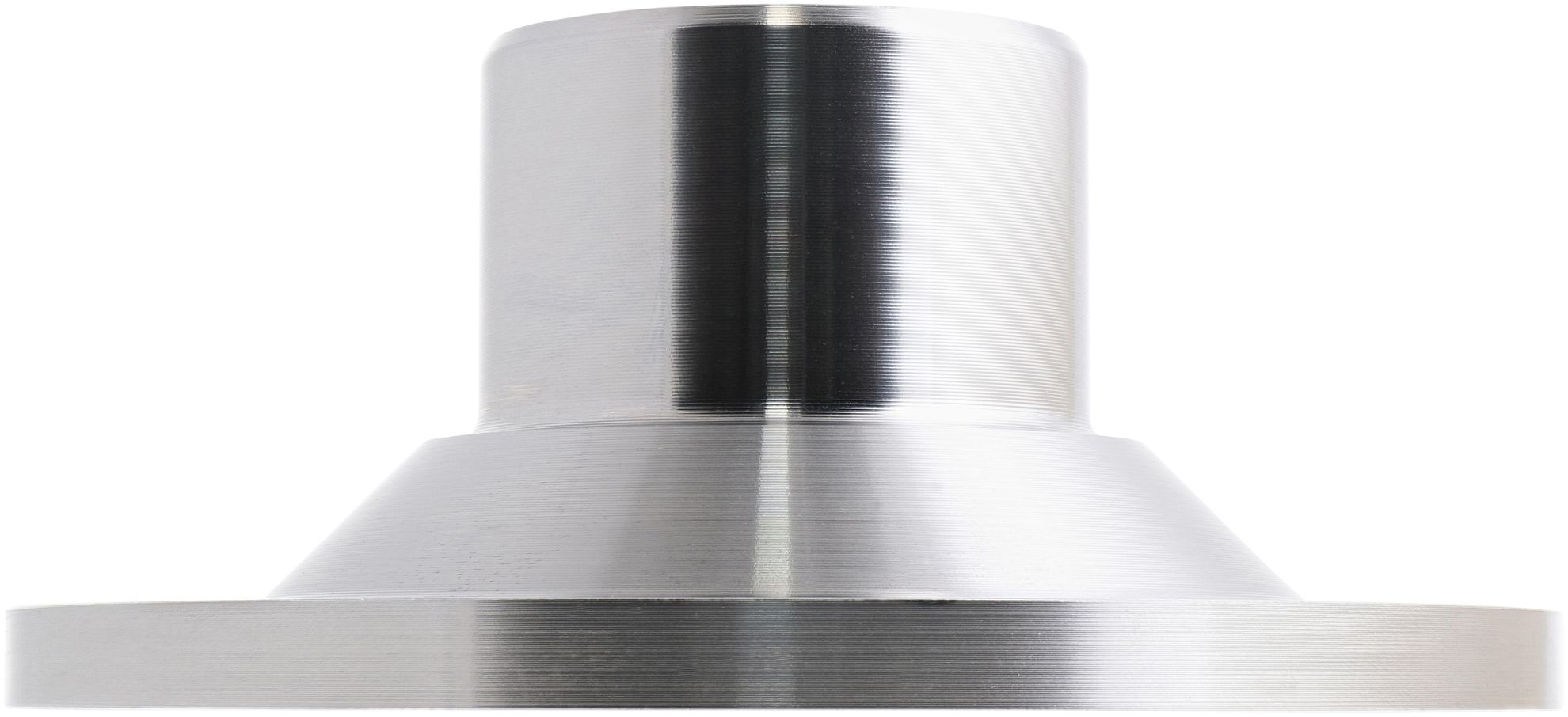

DRIVE SHAFT FLANGE

Manufacturer: Spicer

Manufacturer part number: 5-1-1154

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1610
Flange Type	Circular
Prop 65	NO
Flange Face To End Of Hub (G)	2.938
Length Thru Hole (F) In.	2.250
Number Of Holes	8
Major Bore Diameter (D) In.	1.750
Pilot Diameter(in)	6.625 - FEMALE
SAE Taper	1.750 SAE TAPER
Keyway Width In.	0.438
Ground Hub Diameter (E) In.	2.750
Flange Hole Diameter	0.325
Flange Diameter/Width	6.875
Bolt Hole Circle Diameter In	6.125
Country of Origin	US
Condition	New
