Spicer Drive Shaft Midship Stub Shaft - 100-53-31

Name: Spicer Drive Shaft Midship Stub Shaft - 100-53-31
SKU: 100-53-31
Availability: InStock

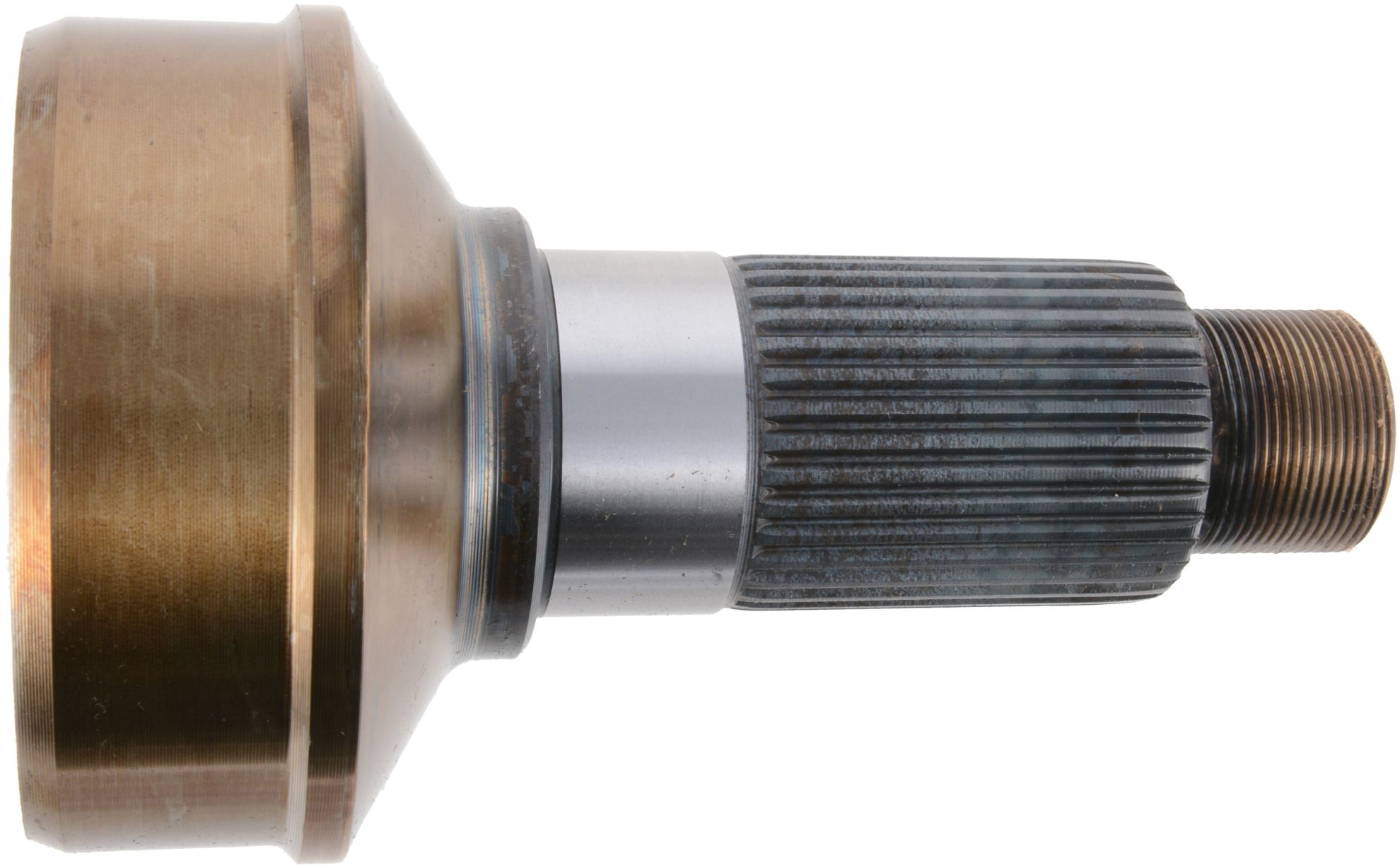

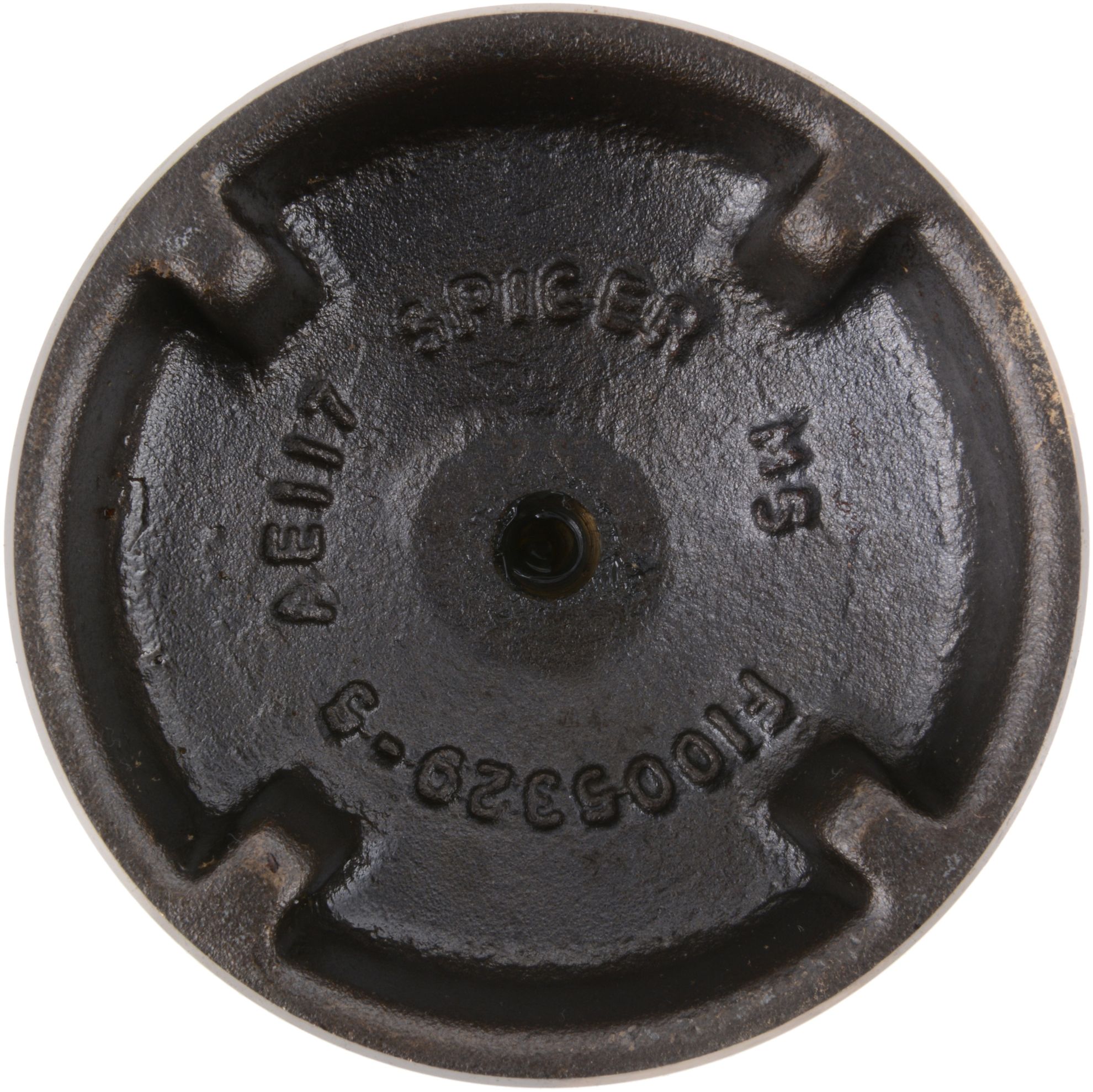

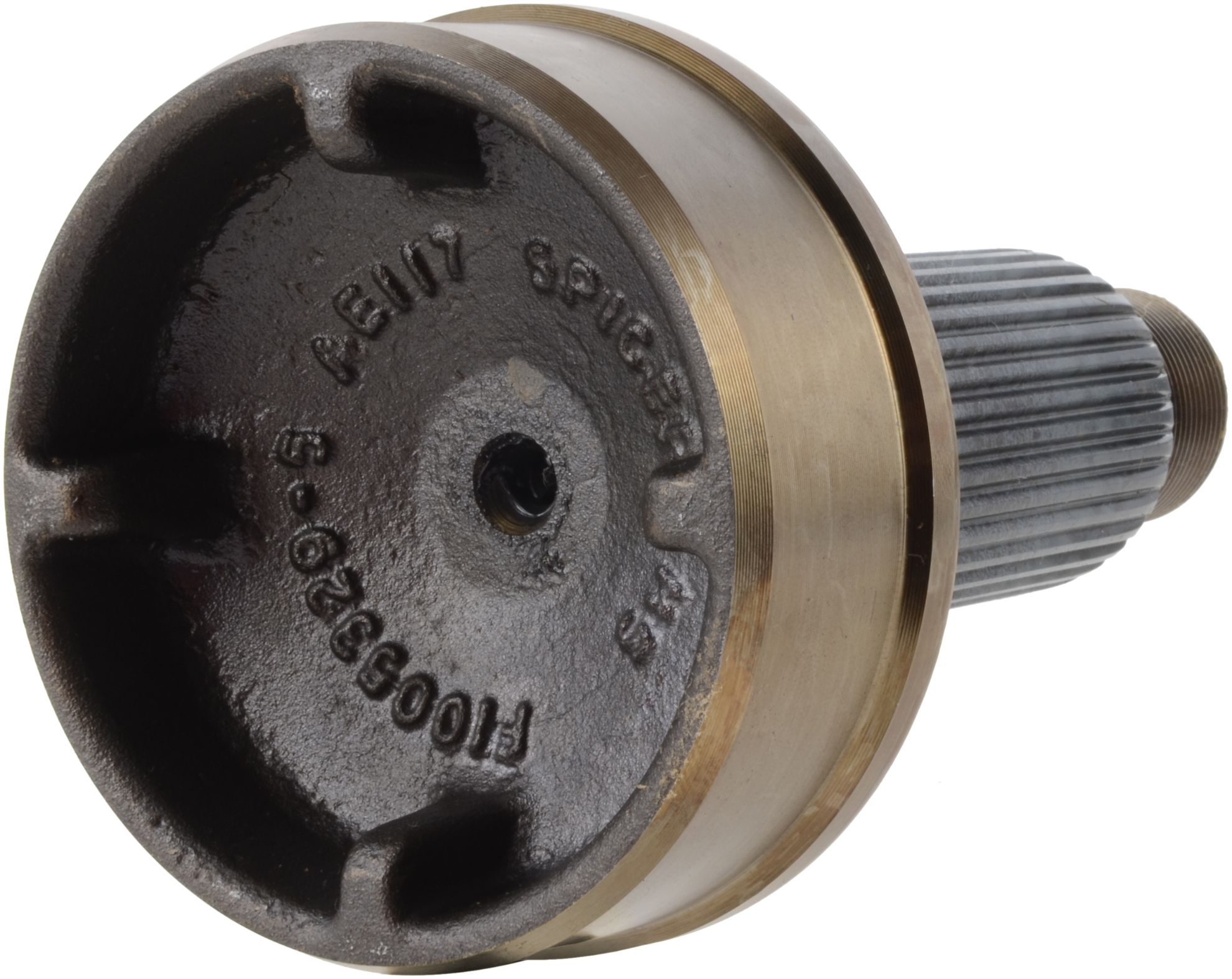

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 100-53-31

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL100
Material	Steel
Thread Size	1.250-18
Style	2
Prop 65	NO
Spline O.D.	1.750
Fits Tube Diameter	4.000
Involute	Y
Fits Tube Wall	.095
Butt Diameter	3.821
Bearing Diameter (C) In.	1.771
Bearing Diameter (Max)	1.7717
Spline End To Weld (K) In.	4.327
Spline Length (L) In	2.059
Bearing Diameter (Min)	1.7712
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	2.154
Spline End To Brg Shoulder (Y)	3.189
Number of Splines	34 I
Country of Origin	MX
Condition	New
