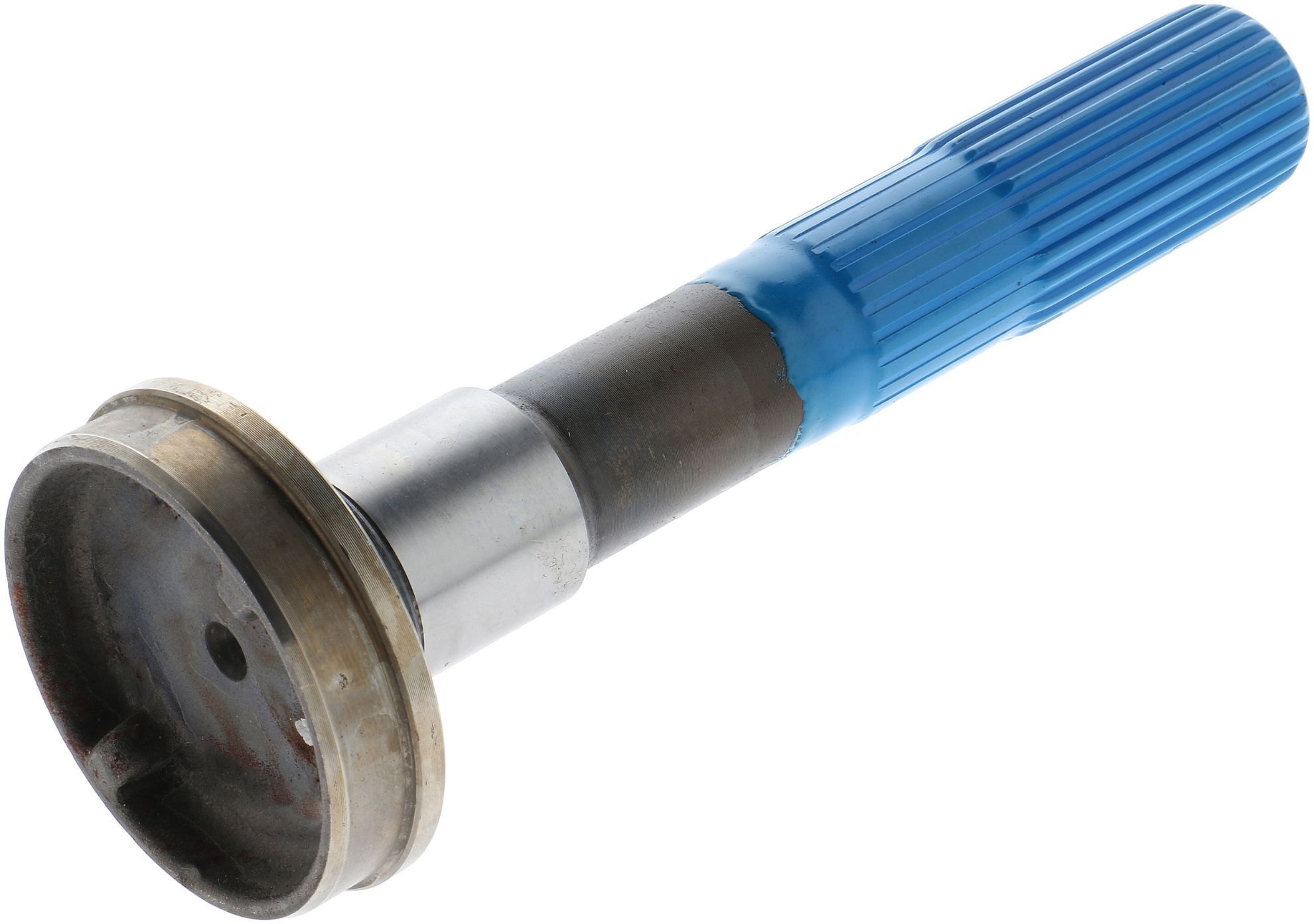

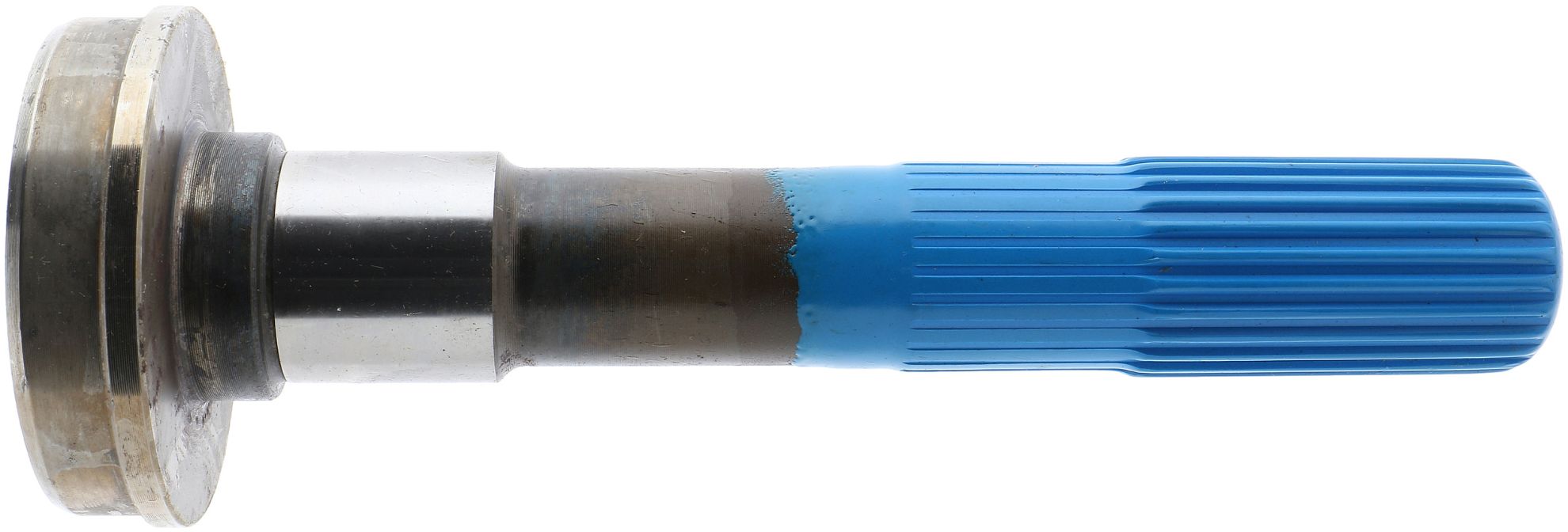

Spicer Drive Shaft Midship Stub Shaft - 3-53-08004

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-08004
SKU: 3-53-08004
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-08004

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Fits Tube Wall	0.083
Butt Diameter	3.345
Bearing Diameter (C) In.	1.575
Bearing Diameter (Max)	1.5752
Spline End To Weld (K) In.	9.512
Spline Length (L) In	3.000
Bearing Diameter (Min)	1.5747
For Use With	Slip Yoke
Shoulder Diameter (B) In.	1.811
Shoulder Length (G) In.	0.540
Spline End To Brg Shoulder (Y)	8.732
Bearing Diameter Length	1.5
Bearing Diameter Radius	0.19
Number of Splines	23/24 I
Style	2
Spline O.D.	1.5620
Fits Tube Diameter	3.5
Involute	Y
Country of Origin	MX
Condition	New
