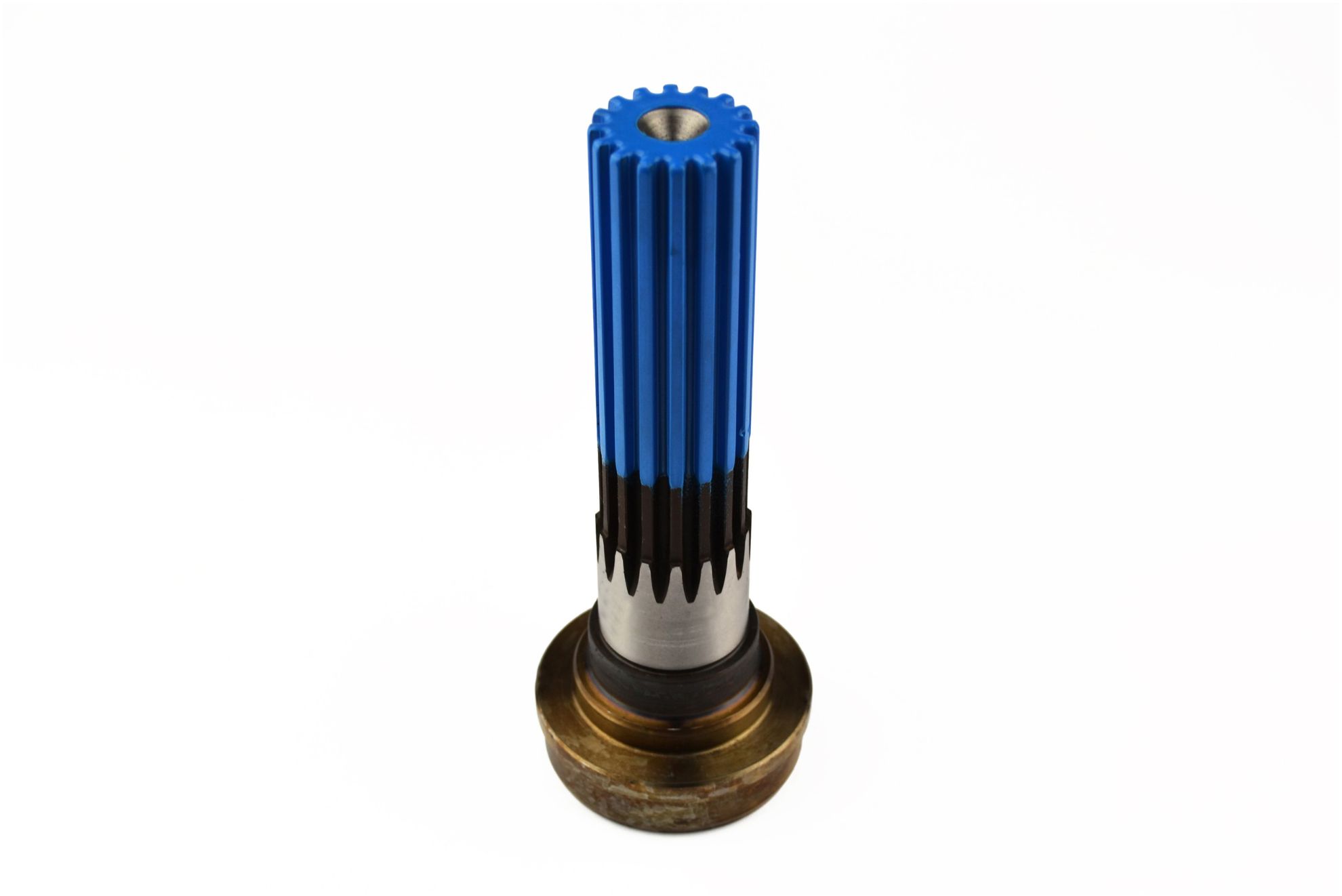

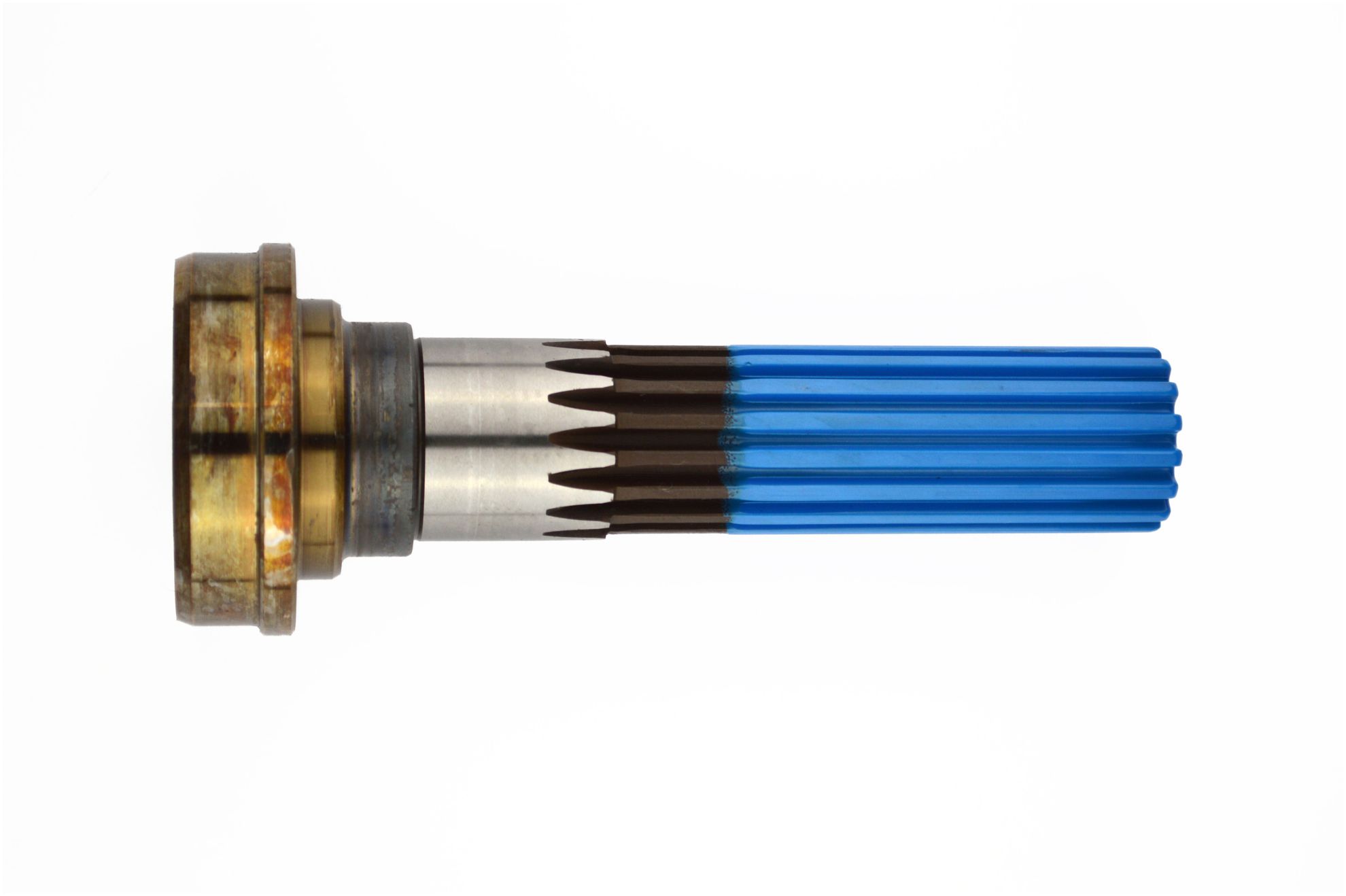

Spicer Drive Shaft Midship Stub Shaft - 3-53-1031

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-1031
SKU: 3-53-1031
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-1031

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Fits Tube Diameter	3
Involute	N
Fits Tube Wall	0.083
Butt Diameter	2.845
Bearing Diameter (C) In.	1.575
Bearing Diameter (Max)	1.5752
Spline End To Weld (K) In.	7.062
Spline Length (L) In	4.438
Bearing Diameter (Min)	1.5747
For Use With	Outboard Slip Yoke
Shoulder Diameter (B) In.	1.810
Shoulder Length (G) In.	0.875
Spline End To Brg Shoulder (Y)	5.940
Bearing Diameter Length	1.5
Number of Splines	16
Series	1310-1410
Material	Steel
Style	1
Spline O.D.	1.5000
Country of Origin	MX
Condition	New
