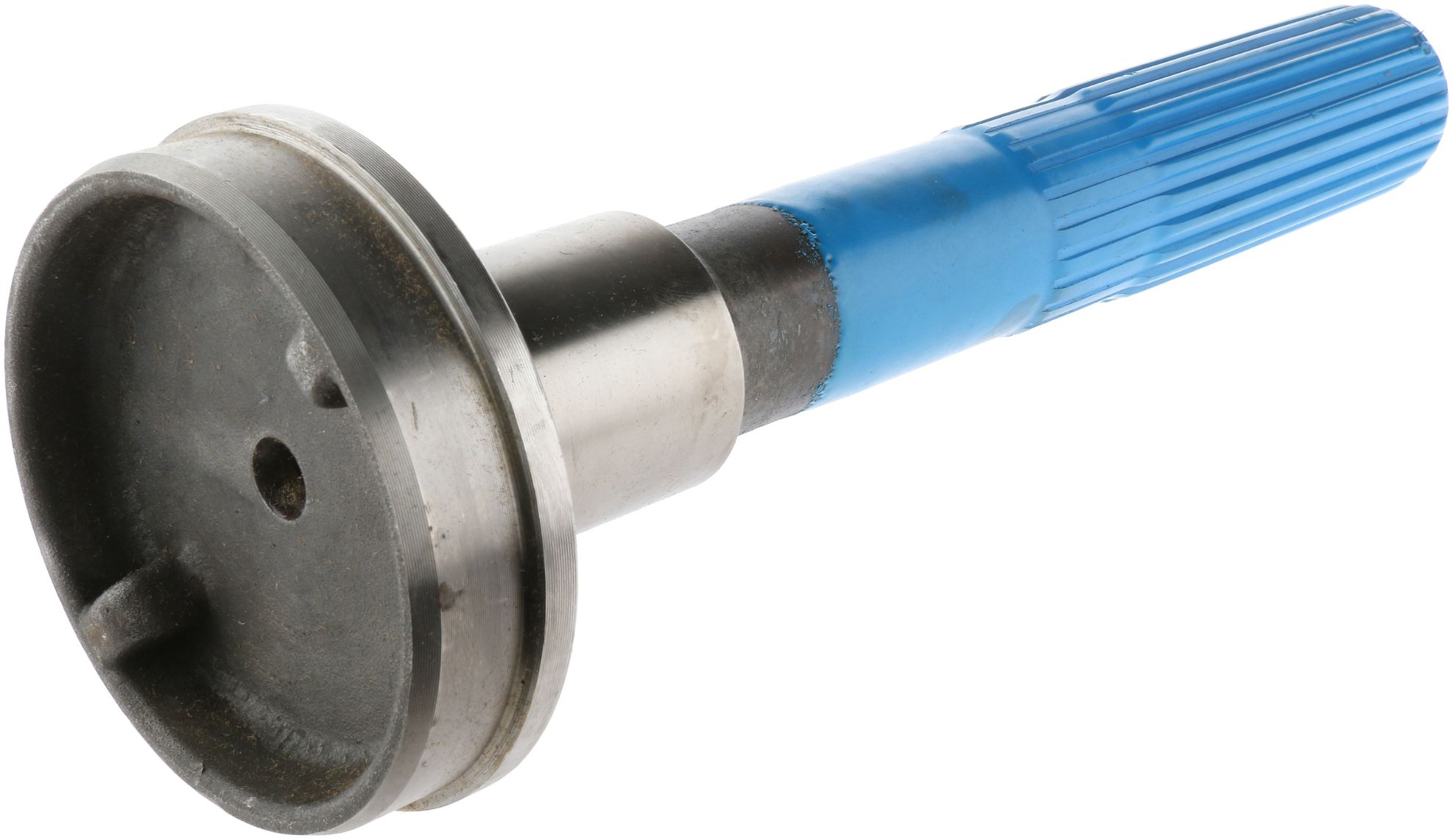

Spicer Drive Shaft Midship Stub Shaft - 3-53-12525

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-12525
SKU: 3-53-12525
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-12525

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Style	2
Prop 65	NO
Bearing Diameter (Max)	1.5752
Spline End To Weld (K) In.	10.618
Spline Length (L) In	3.500
Bearing Diameter (Min)	1.5747
For Use With	Slip Yoke
Shoulder Diameter (B) In.	1.810
Shoulder Length (G) In.	0.889
Spline End To Brg Shoulder (Y)	9.500
Bearing Diameter Length	1.5
Bearing Diameter Radius	0.04
Number of Splines	21/22 I
Spline O.D.	1.4370
Fits Tube Diameter	3
Involute	Y
Fits Tube Wall	0.083
Butt Diameter	2.845
Bearing Diameter (C) In.	1.575
Country of Origin	US
Condition	New
