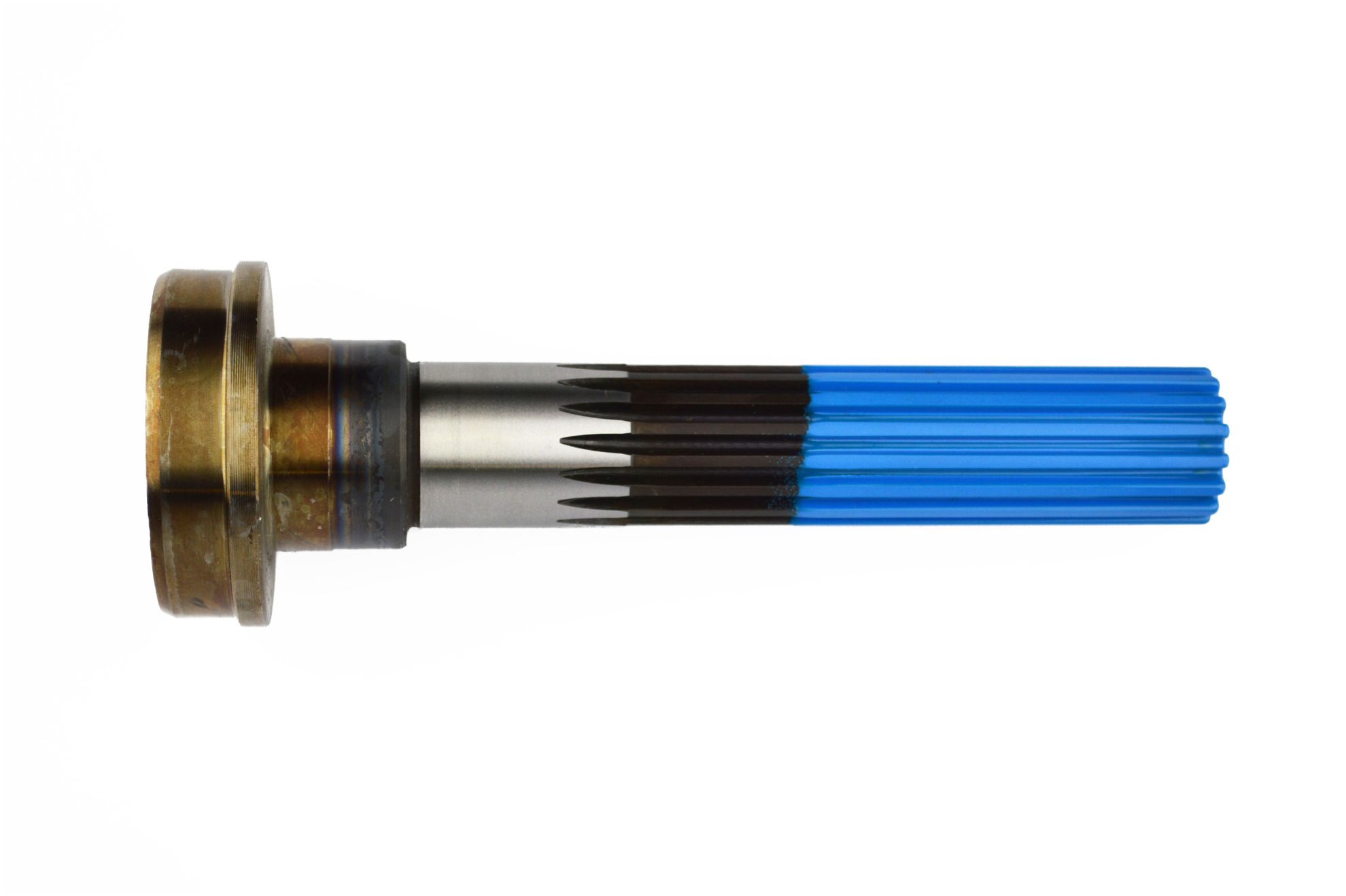

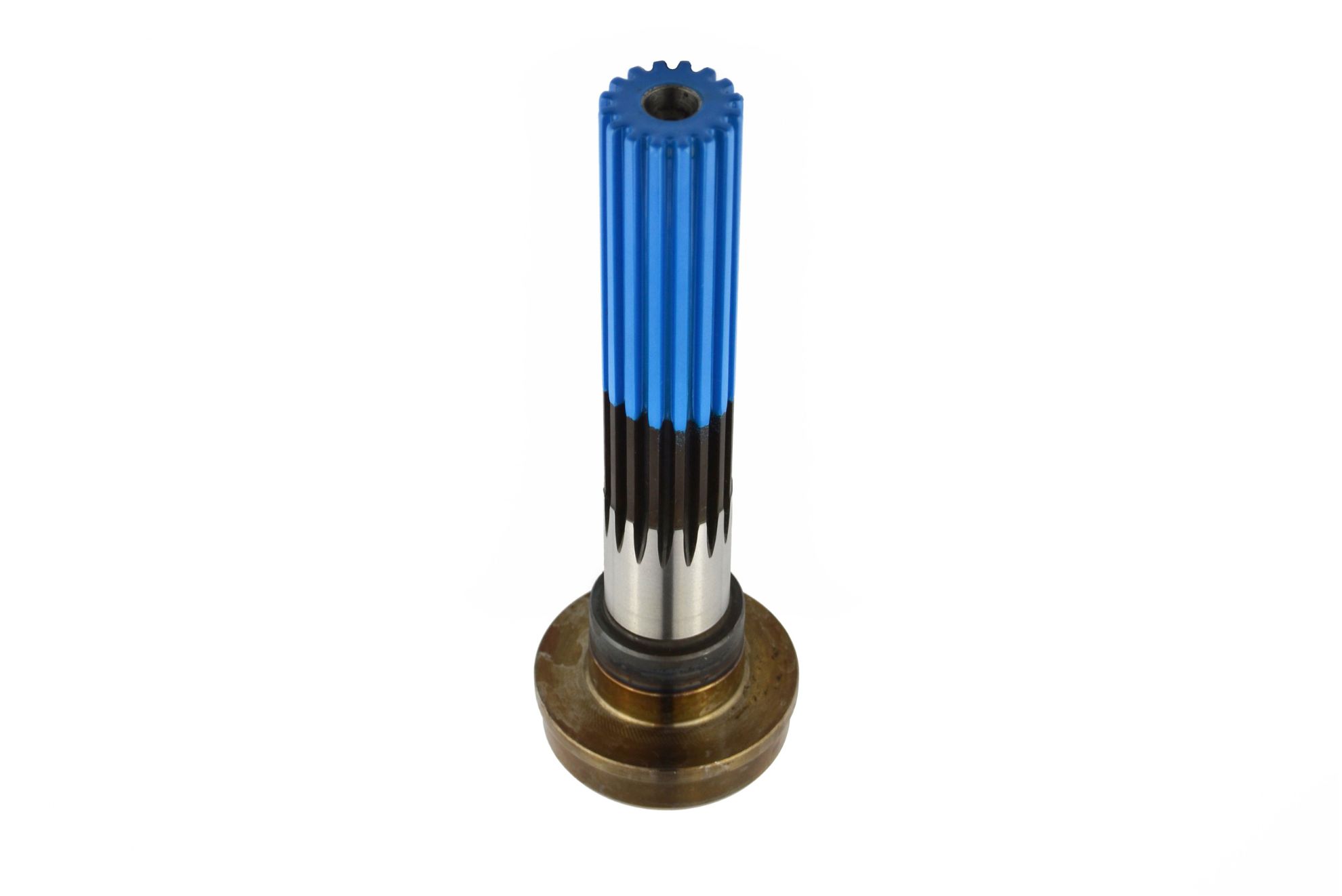

Spicer Drive Shaft Midship Stub Shaft - 3-53-1361

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-1361
SKU: 3-53-1361
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-1361

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310-1410
Material	Steel
Style	1
Prop 65	NO
Fits Tube Diameter	3
Involute	N
Fits Tube Wall	0.083
Butt Diameter	2.845
Bearing Diameter (C) In.	1.378
Bearing Diameter (Max)	1.3784
Spline End To Weld (K) In.	8.094
Spline Length (L) In	4.969
Bearing Diameter (Min)	1.3779
For Use With	Outboard Slip Yoke
Shoulder Diameter (B) In.	1.719
Shoulder Length (G) In.	1.125
Spline End To Brg Shoulder (Y)	6.750
Bearing Diameter Length	1.78
Number of Splines	16
Spline O.D.	1.3750
Country of Origin	MX
Condition	New
