Spicer Drive Shaft Midship Stub Shaft - 3-53-2011

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-2011
SKU: 3-53-2011
Availability: OutOfStock

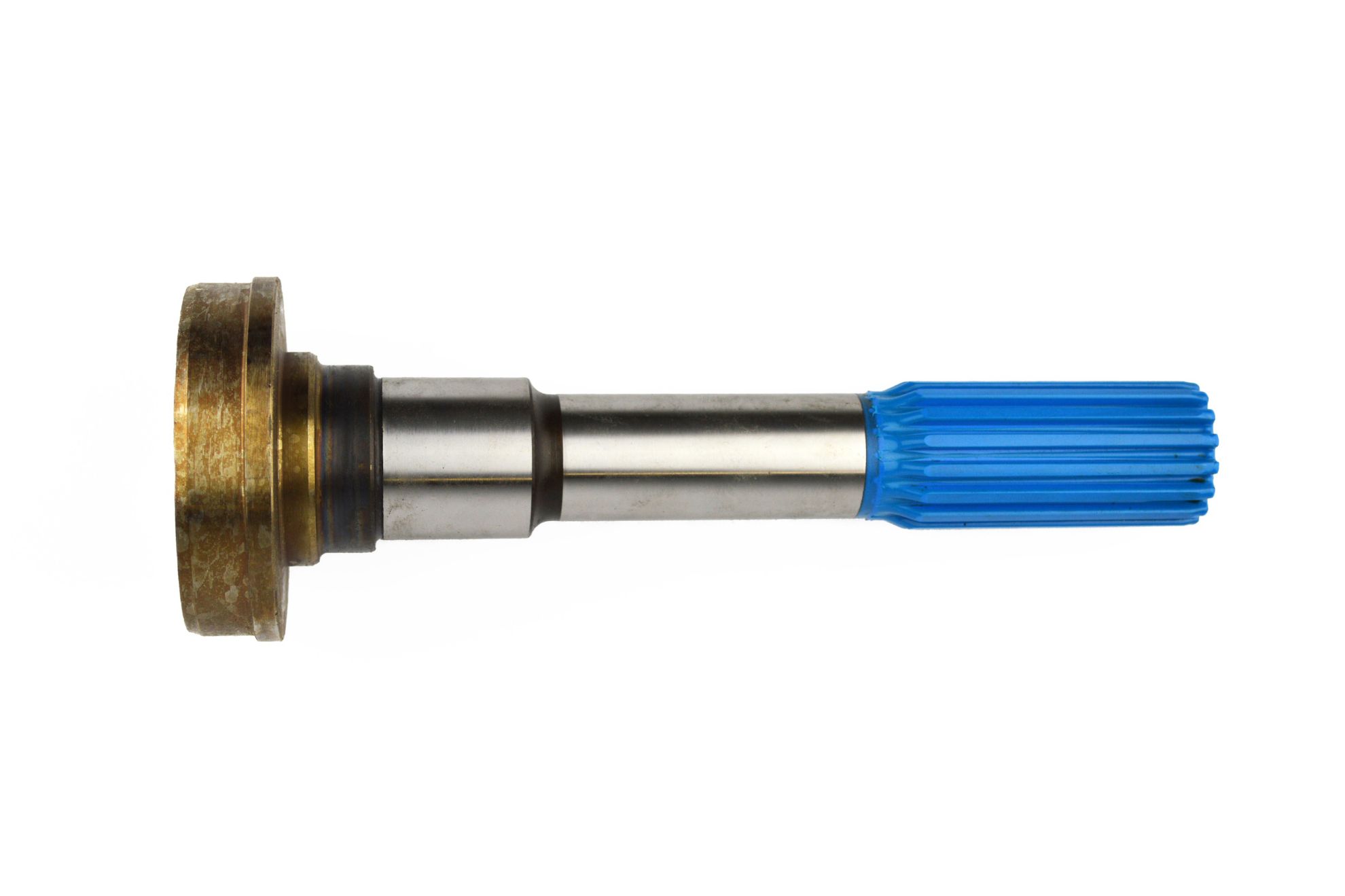

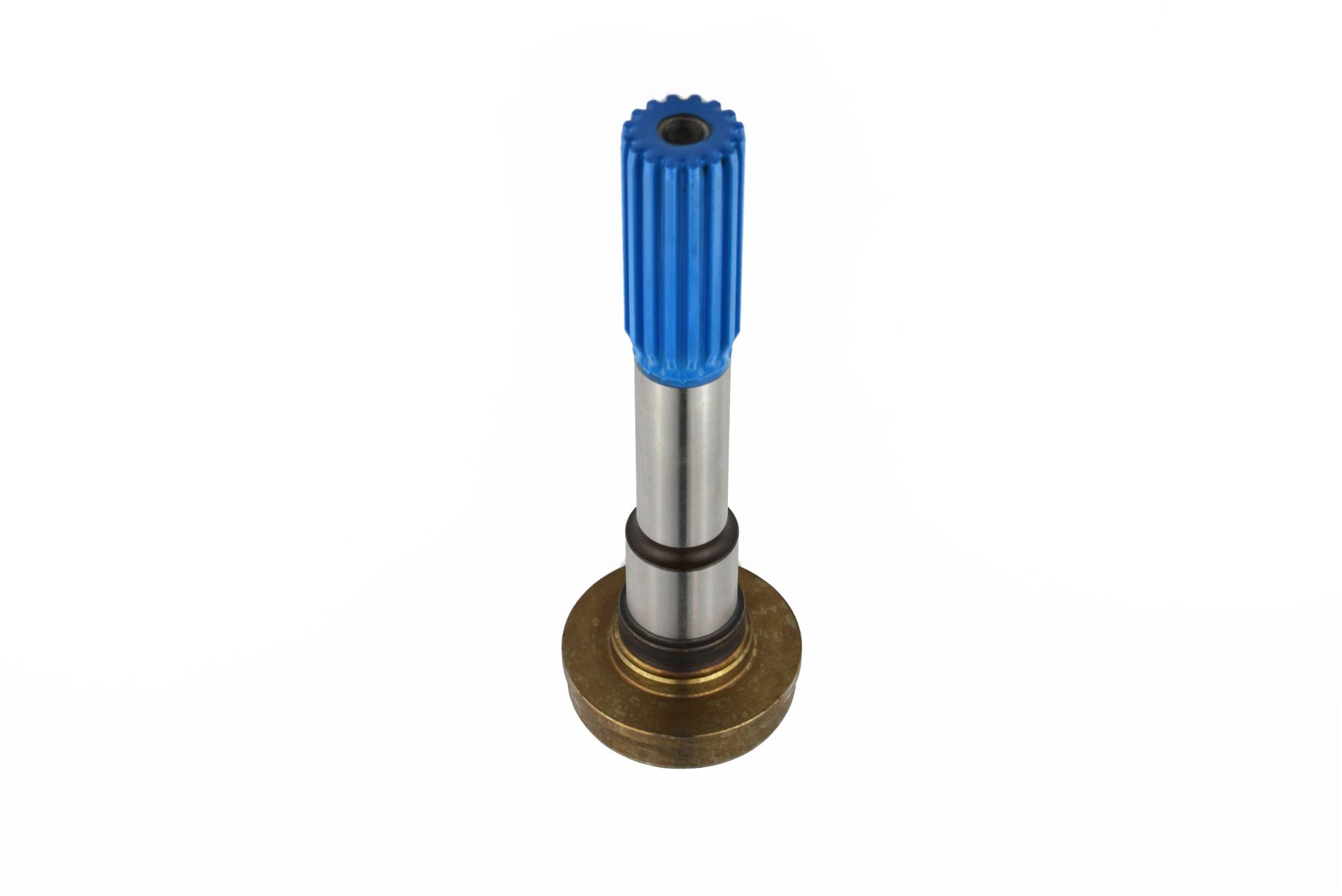

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-2011

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1310-1410
Material	Steel
Style	2
Prop 65	NO
Spline O.D.	1.5000
Fits Tube Diameter	3.5
Involute	N
Fits Tube Wall	0.065
Butt Diameter	3.381
Bearing Diameter (C) In.	1.575
Bearing Diameter (Max)	1.5752
Spline End To Weld (K) In.	9.350
Spline Length (L) In	3.000
Bearing Diameter (Min)	1.5747
For Use With	Outboard Slip Yoke
Shoulder Diameter (B) In.	1.810
Shoulder Length (G) In.	0.875
Spline End To Brg Shoulder (Y)	8.230
Bearing Diameter Length	1.5
Bearing Diameter Radius	0.19
Number of Splines	15/16
Country of Origin	MX
Condition	New
