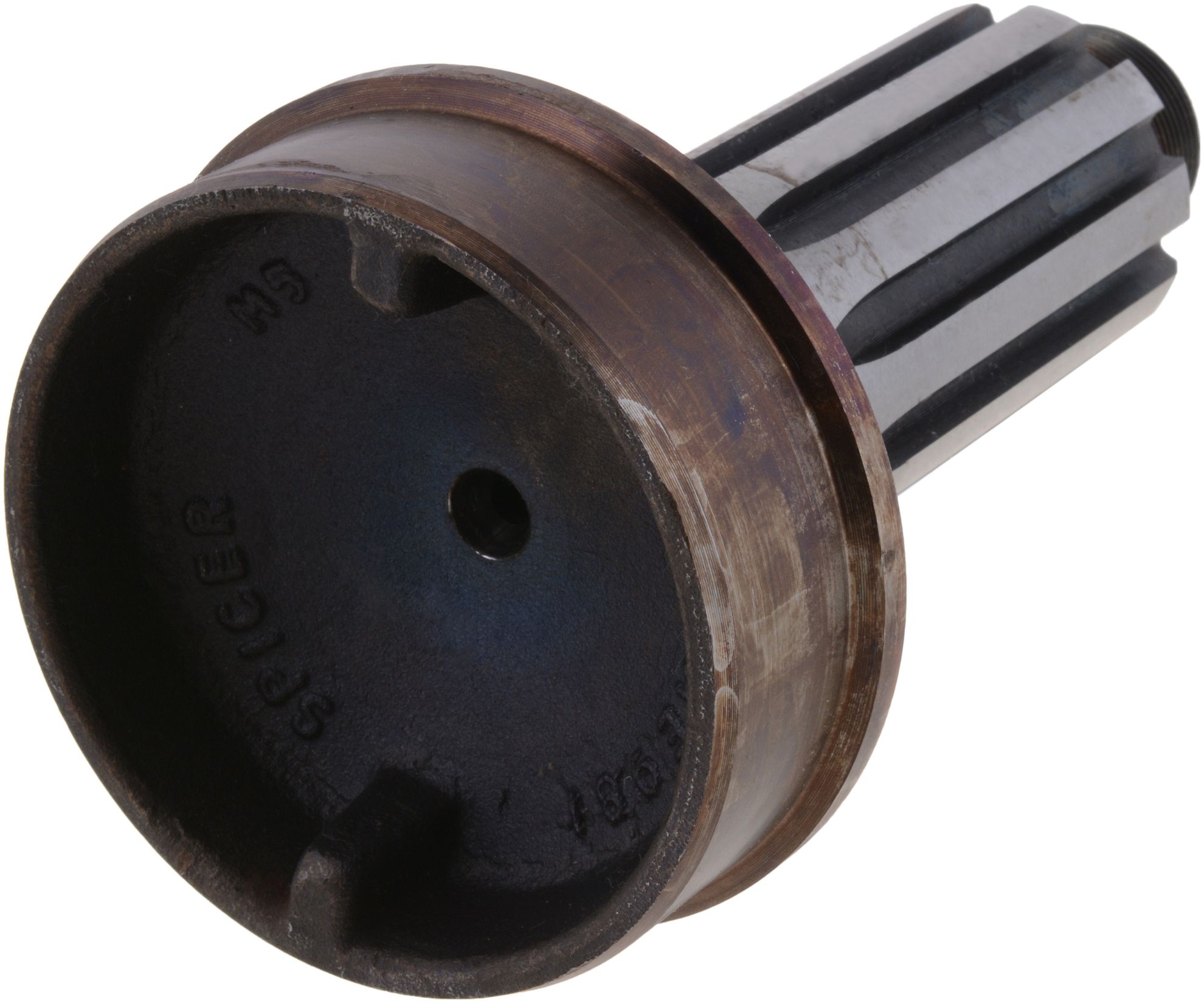

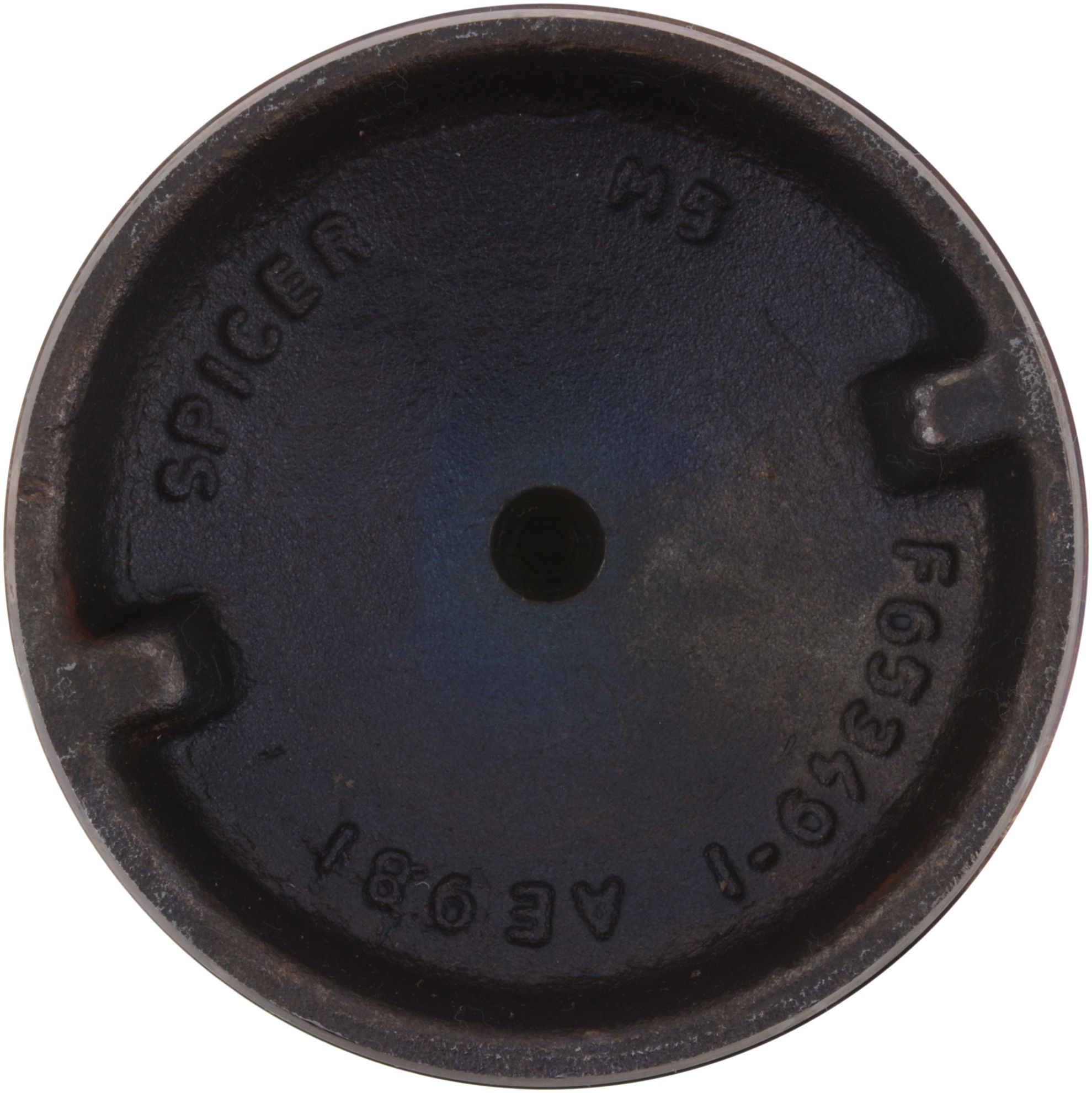

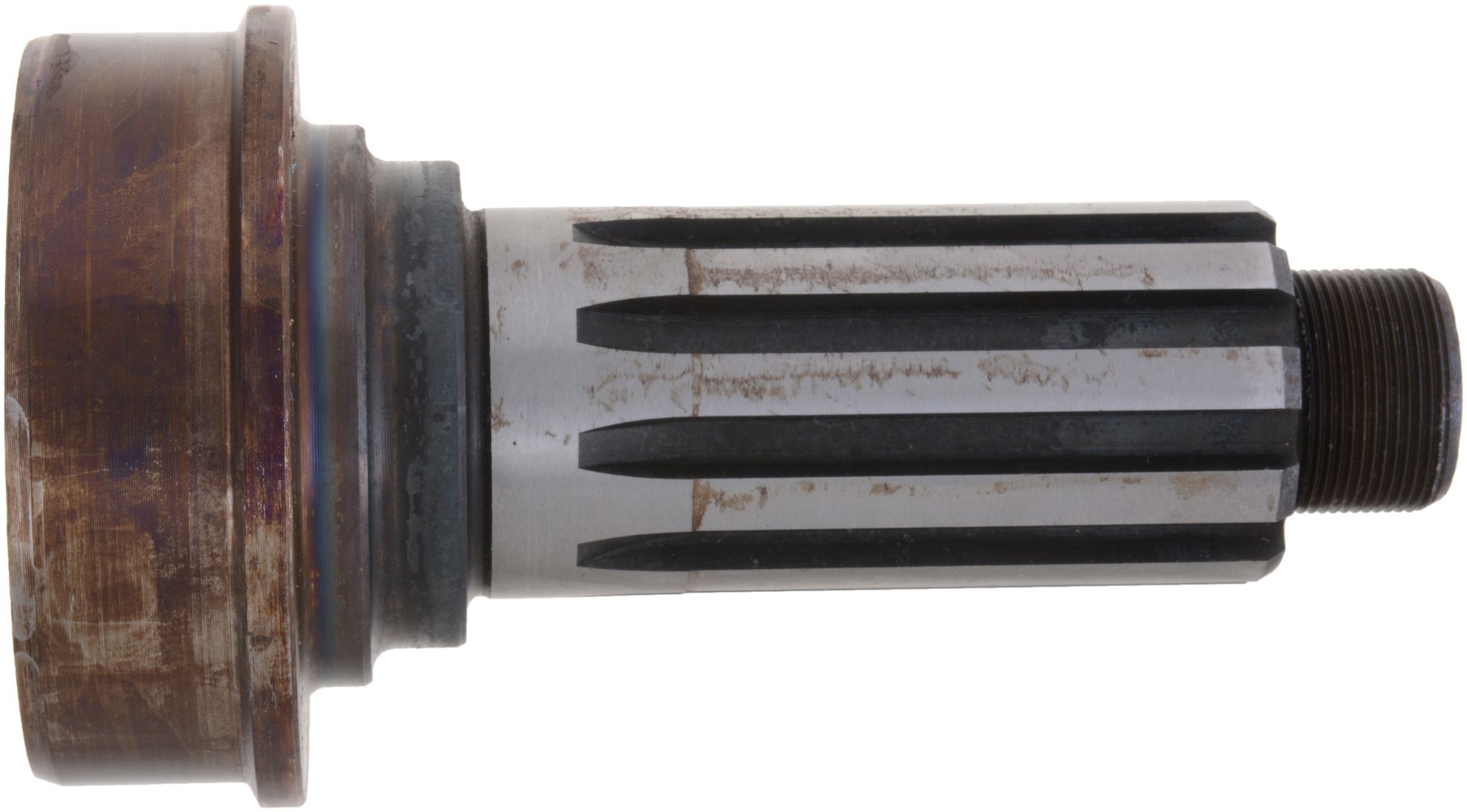

Spicer Drive Shaft Midship Stub Shaft - 6-53-201

Name: Spicer Drive Shaft Midship Stub Shaft - 6-53-201
SKU: 6-53-201
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 6-53-201

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1710
Material	Steel
Thread Size	1.250-18
Style	2
Prop 65	NO
Fits Tube Wall	.156
Butt Diameter	3.743
Bearing Diameter (C) In.	1.968
Bearing Diameter (Max)	1.9685
Shoulder Length (G) In.	.812
Spline End To Brg Shoulder (Y)	4.062
Shoulder Diameter (B) In.	2.438
For Use With	End Yoke Or Companion Flange
Bearing Diameter (Min)	1.968
Spline Length (L) In	2.875
Spline End To Weld (K) In.	5.156
Number of Splines	10
Involute	N
Fits Tube Diameter	4.000
Spline O.D.	1.958
Country of Origin	MX
Condition	New
