Spicer Drive Shaft Yoke Shaft - 250-82-23028-4X

Name: Spicer Drive Shaft Yoke Shaft - 250-82-23028-4X
SKU: 250-82-23028-4X
Availability: InStock

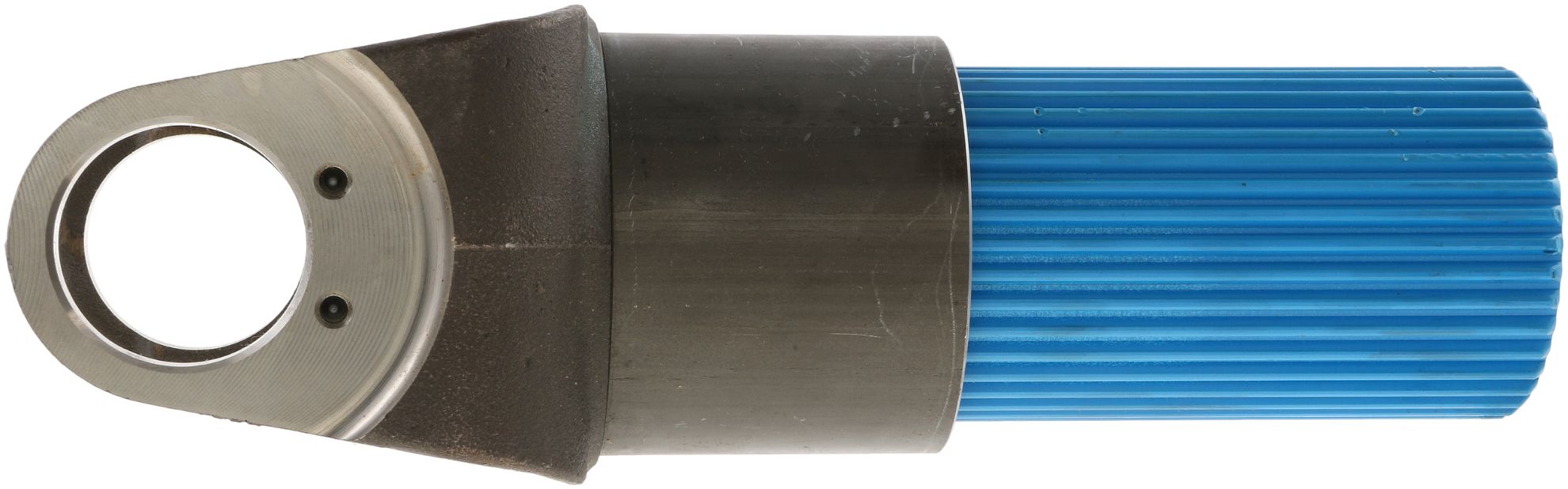

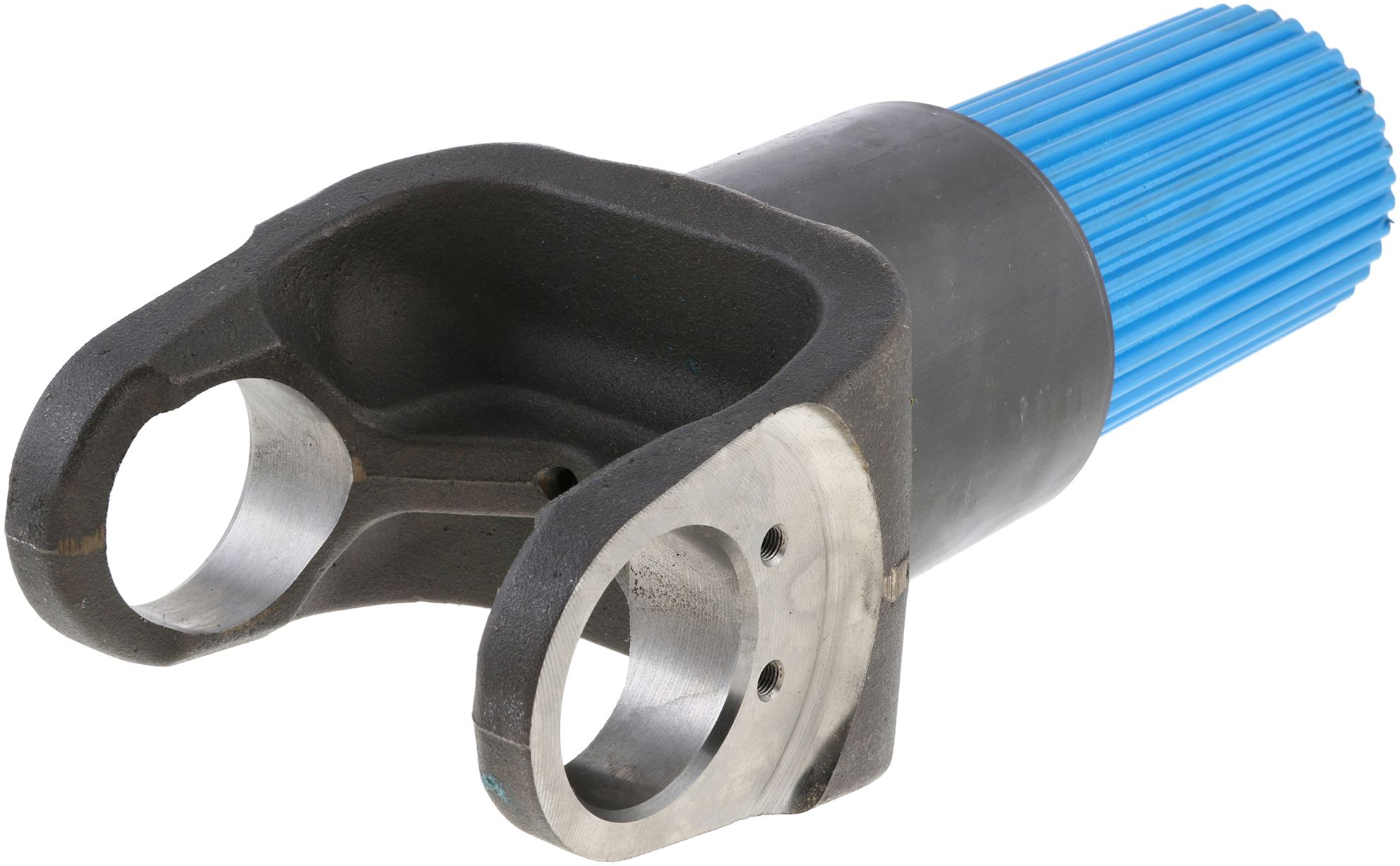

Yoke Shaft Assembly

Manufacturer: Spicer

Manufacturer part number: 250-82-23028-4X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Made in the USA and complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL250
Spline Count	38
Type	BS
Style	1
Involute Spline	Y
Bearing Cap Diameter (D) In.	2.361
Outside Yoke Dimension (E) In.	5.984
Centerline To End Of Splne (K)	14.173
Major Spline Diameter	3.825
Spline Length (L) In	7.598
Spline Hole Minor Diameter	3.5787
Spline Width	0.154
Cl To End Of Can/Tube	7.902
End/Spline To Point/Rad. (R)	9.567
Prop 65	NO
Country of Origin	US
Condition	New
