Spicer Select Universal Joint - 25-3147X

Name: Spicer Select Universal Joint - 25-3147X
SKU: 25-3147X
Availability: OutOfStock

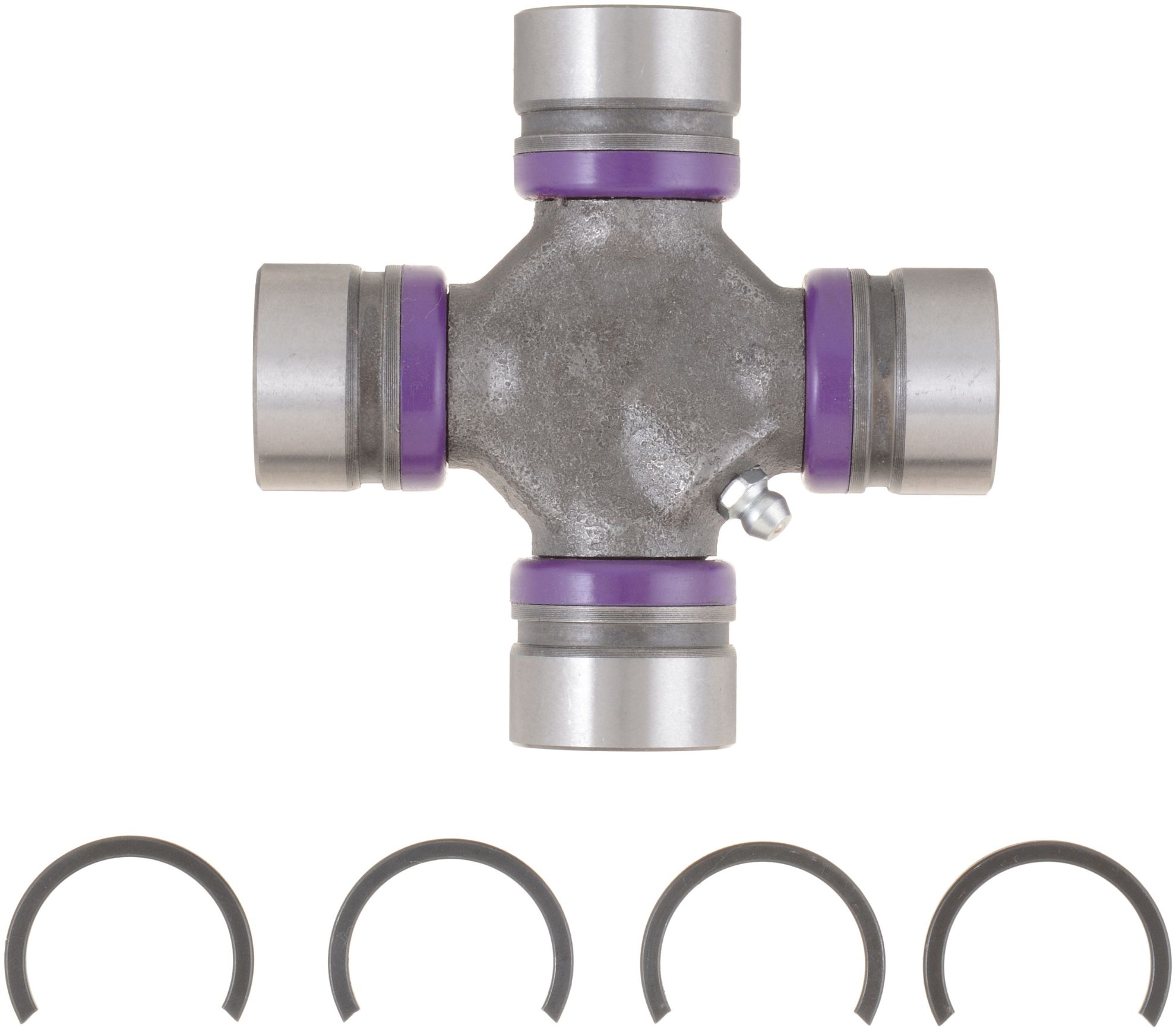

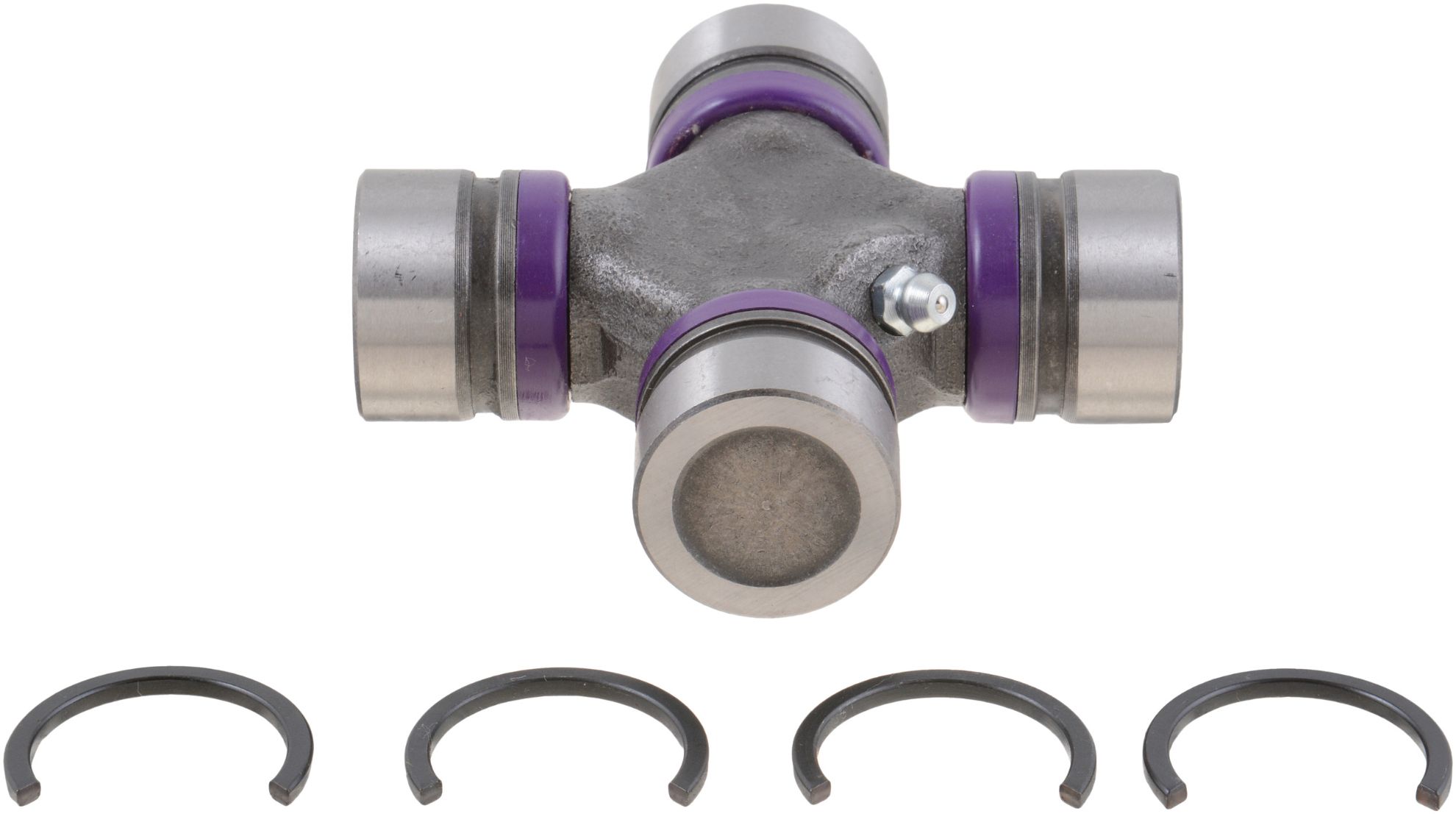

Universal Joint Greaseable S44/3R Series

Manufacturer: Spicer Select

Manufacturer part number: 25-3147X

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

For the lifespan of your vehicle, trust Spicer Select. Built with Integrity. Engineered by Dana.

Application: Buick - 1959-63 Invicta, 1961-89 Electra, 1961-90 LeSabre, 1962-70 Wildcat, 1963-78 Riviera, 1964-69 Special, 1964-72 Skylark, 1964-72 Sportwagon, 1965-67 Gran Sport, 1970-83 Estate Wagon, 1971-73 Centurion, 1973-81 Century, 1973-87 Regal

Products specifications

Attribute name	Attribute value
Bearing Cap Diameter B (mm)	28.575
Bearing Cap Type A	ISR
Bearing Cap Type B	ISR
Hardware Included	No
Length A (In)	2.556
Length A (mm)	64.922
Length B (In)	2.556
Length B (mm)	64.922
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Mounting Hardware Included	No
Prop 65	Yes
Distance Btw Snap Ring Grooves	2.556
Distance Btw Snap Ring Grooves (ISR) (2)	2.556
Material	Steel
Bearing Cap Diameter (1)	1.125
OEM Mfg	Mechanics
OEM Series	S44/3R
Type	ISR Style
Bearing Cap Diameter (2)	1.125
Distance Between Bolts (1)	2.000
Bearing Cap Type	Round with ISR Groove
Snap Ring Included	Yes
Snap Ring Type	Internal
Grease Zerk Included	Yes
Pre-Greased	No
Bearing Cap Finish	Ground
Grease Fitting Location	Side of Cross
Model Number	3R, SAGINAW 44, AAM 1344
Seal Color/Finish	Purple
Seal Material	Rubber
Greaseable	Yes
Bearing Cap Diameter A (mm)	28.575
Country of Origin	CN
Condition	New
