Spicer Steer Axle Assembly - 10034722

Name: Spicer Steer Axle Assembly - 10034722
SKU: 10034722
Availability: InStock

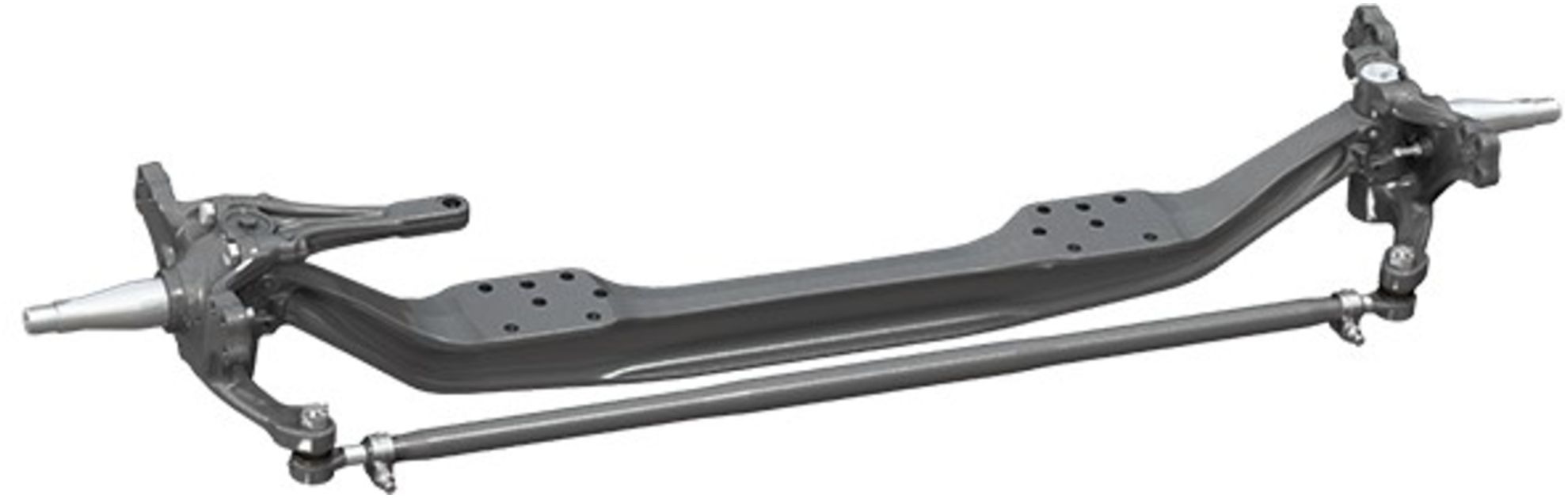

E-1002IL Steer Axle Assembly - 69 inch KPI

Manufacturer: Spicer

Manufacturer part number: 10034722

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Thread	1.500 - 18 UNEF-2A
Model	E-1002IL
Drop	88.90
Beam Center Drill Depth	19.84
Beam Center Drill Diameter	20.64
Beam Drill Hole Diameter	20.64
Beam Drill Pattern Length	107.96
Beam Drill Pattern Width	122.24
Beam Spring Mount Cntr To Cntr	863.60
KPI	1752.6
Spindle Nut Thread	Standard
Turn Angle LH	30 - 50
Turn Angle RH	30 - 50
Country of Origin	MX
Condition	New
