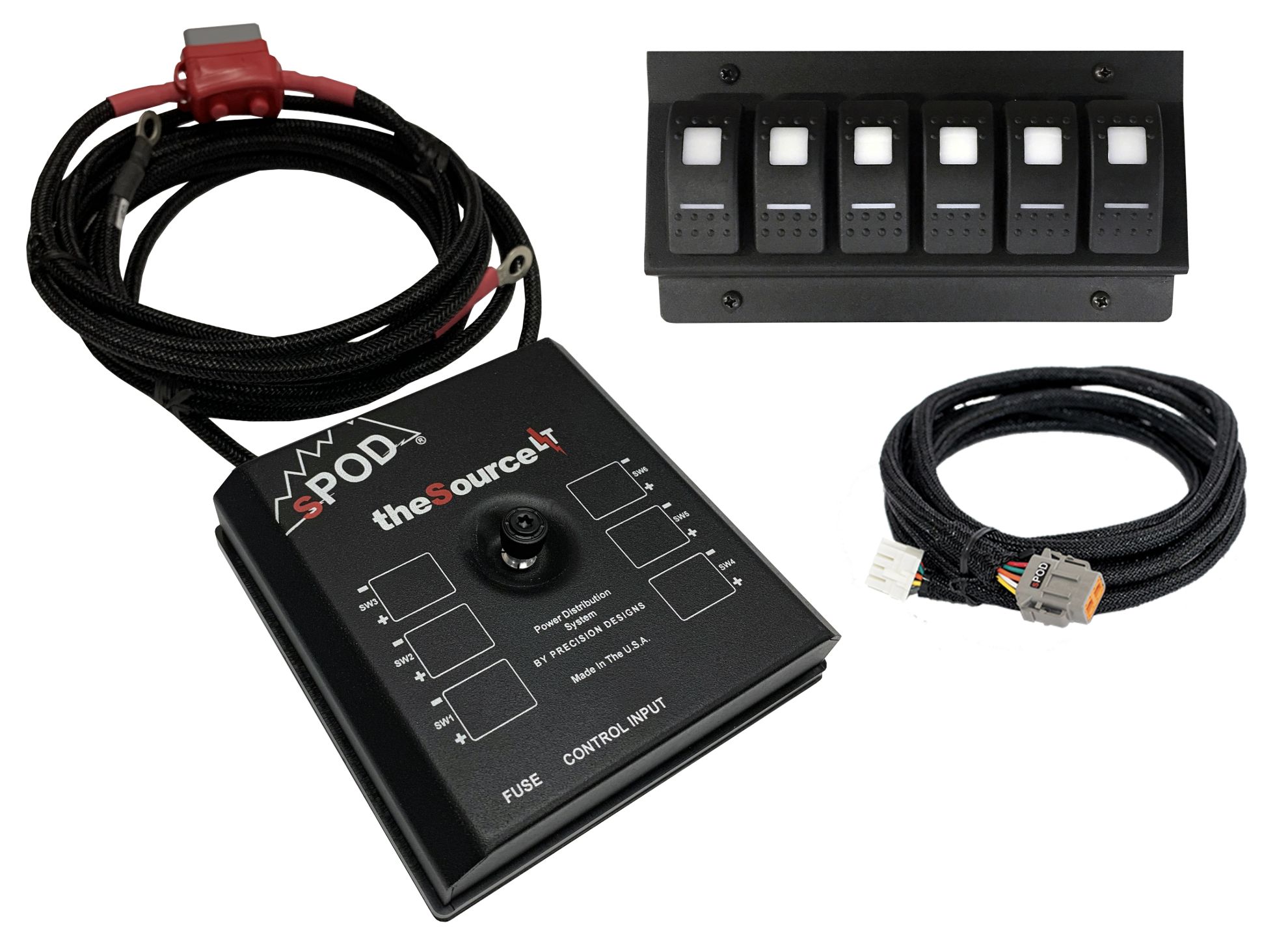

sPOD Electrical Control Console Panel - 873000

SourceLT w/ Amber LED Switch Panel for 2012-2017 Toyota TundraSwitch panel is installed in place of the sunglass compartment.The SourceLT will save hours of wiring & installation time! It is a small,solid-state6-circuit control system that provides a clean (one cable into the cab!) and safe way to power and control 12VDC accessories. Due to the small footprint of the SourceLT, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.• 6 circuits rated at 30 amps at 12.5 VDC per circuit• 12-position terminal block (easily attach accessories)• Controller cable(10 foot)for simple plug-n-play connectivity to the switch controller• Integrated low voltage cutoff (LVCO) battery protection w/ optional override•Self-healingfault protectioncircuits(from 1.5 to 30amps)• Current-sensing MOSFETs controlled by a microprocessor (no fuses & norelays)• 100amp in-line fuse• Nylon braided 36" battery cables are hi-strand crosslinked copper wire with asilicone jacket• Operates on 12VDC• Built-in Bluetooth capabilities for remote control• Protection against: overheating, over-current, shorts, reverse polarity andfield collapse• On-demand wireless software updates/upgradesHARDWARE:• Powder coated steel base w/ built inhardware• Silicone gasket for weatherproofing•Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for placement of supplied legends•Universal &vehicle specific mounting options• Robust insulated base and coverFEATURES AVAILABLE THROUGH sPOD MOBILE APP (free):Each switch can be programmed for:• Dimming• Strobe• Flash• Momentary• Switch Linking• On-Road and Off-Road mode of operationSWITCH PANELSwitch panel with six dual lit LED switches (installed and pre-wired)All wires are wrapped in high-temp abrasion resistant nylo

Note: SourceLT
