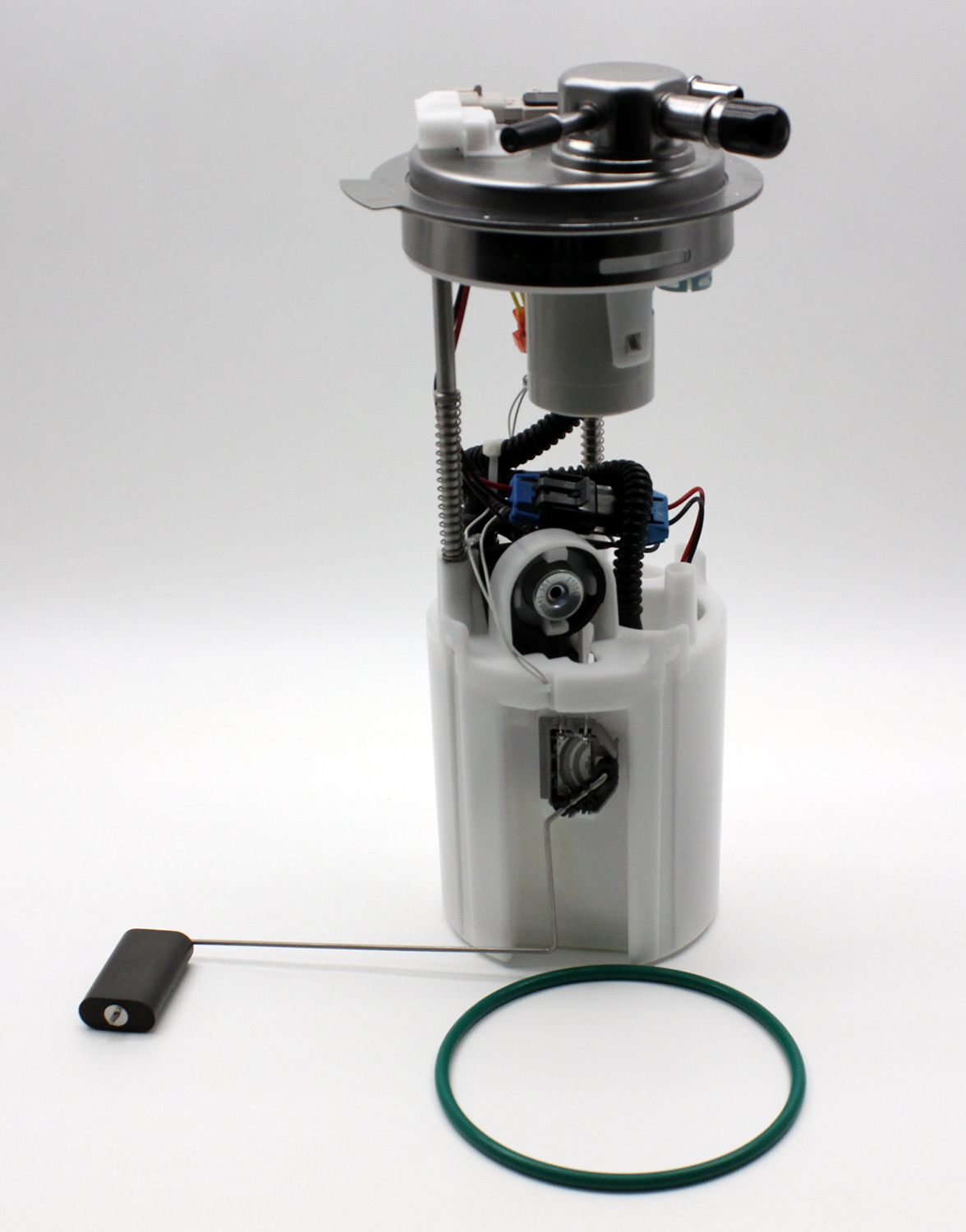

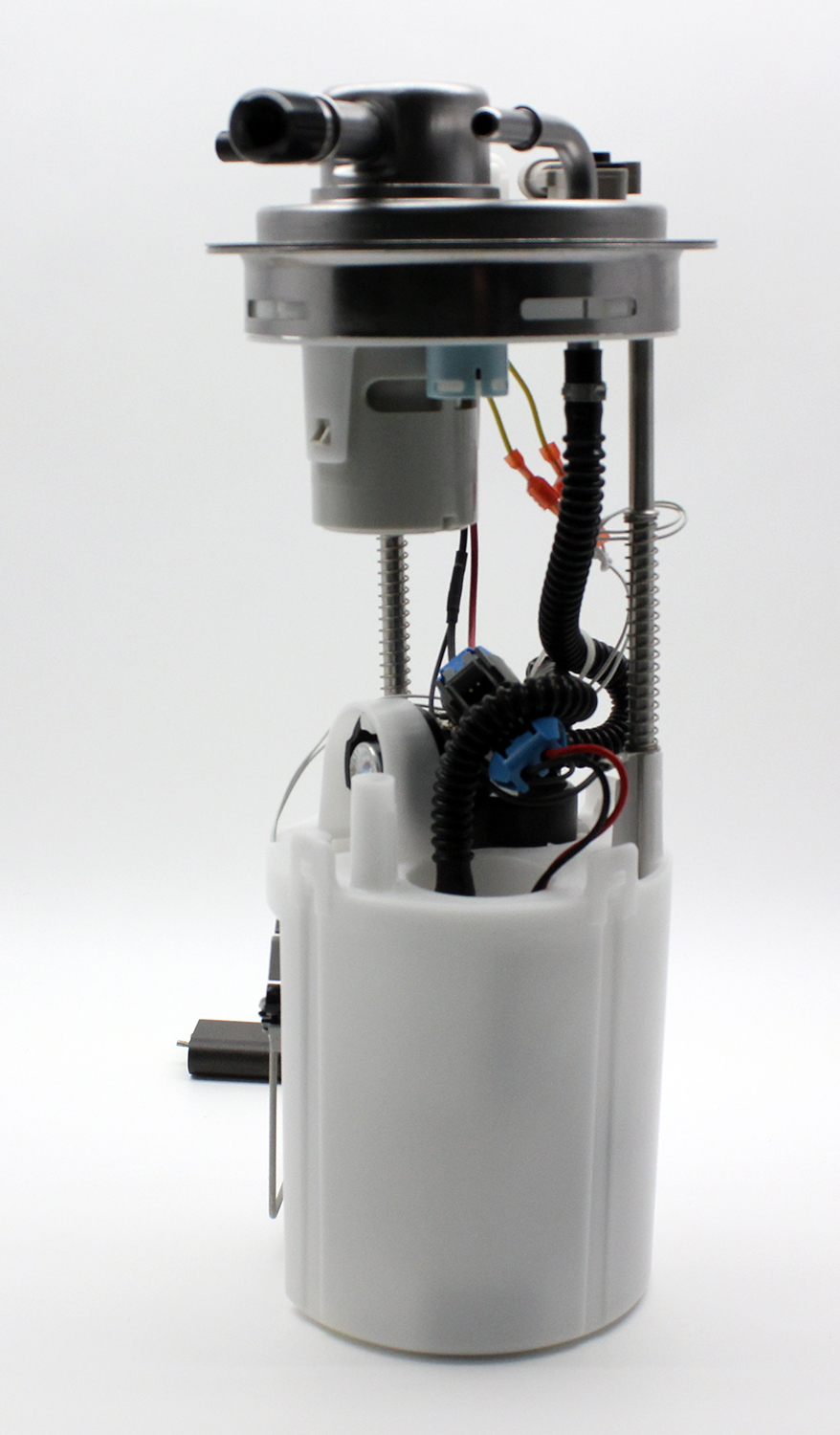

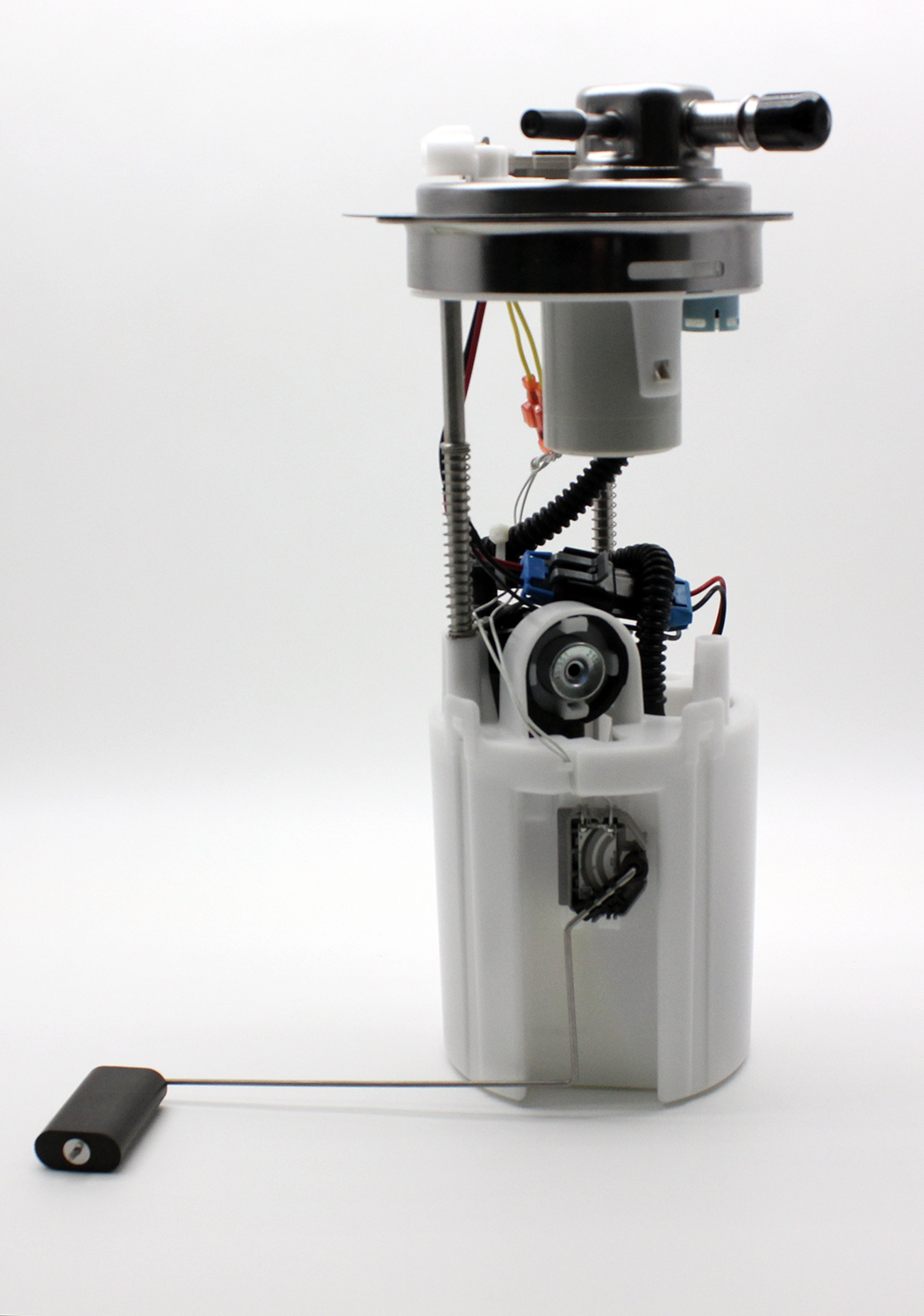

TI Automotive Fuel Pump Module Assembly - TU4023HX

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
Application Specific High Performance 300 lph; 600 hp; FFV; Fuel Module
Manufacturer: TI Automotive
Manufacturer part number: TU4023HX
$500.02
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

TI Automotive is the builder of the most popular fuel pumps and modules for over 60 years under the Walbro brand name. We value this heritage and are proud to continue our legacy of reliability, performance and first-time fit. TI Automotive fuel pumps, fuel pump kits, module assemblies, filters and accessories deliver the feed you need for the power you demand. These products deliver unquestioned fuel flow across a wide pressure range to support outrageous horsepower. TI Automotive fuel pumps are available for in-tank or in-line needs across a variety of fuels featuring the award winning 39/50 in-tank pump and the GSS line featuring the popular 255LPH pump. They deliver high-pressure, high flow performance for engines with more than 500hp. Pump kits, filters and accessories are available to help you with your installation needs and are designed as direct-fit replacements. Our products are engineered to win through decades of technical expertise and by settling for nothing less than superior hot fuel performance. Proudly union made in TI Automotive?s Caro, Michigan plant across 5 fuel pump and 14 modules assembly lines. Our fuel pumps and modules are never manufactured or assembled by a third party or sourced from an outside company. Fluid Thinking shapes the mindset of TI Automotive.

Products specifications

Attribute name Attribute value
Resistance Ohms Full 40.4
Harmonized Tariff Code 8413301000
Prop 65 Long Label WARNING: This product can expose you to lead. For more information, visit www.P65Warnings.ca.gov
Installation Instructions Included Yes
Installation Warnings Yes
Mounting Hardware Included No
Fuel Type Flex
Nafta Code B
Fuel Sending Unit Included Yes
Prop 65 Image Prop 65 lead warning.jpg
Outlet Type SAE Quick Connect
Outlet Outside Diameter 9.525
Operating Pressure Value 50
Operating Pressure UOM PS
Engine Horsepower Value 600
Fuel Filter Included No
Internal Or External Strainer Internal
Prop 65 - Short Label WARNING: This product contains a chemical known to the State of California to cause cancer
Prop 65 Yes/No Y
Resistance Ohms Empty 250.5
Wire Harness Included No
Voltage 13.5
Average Current Draw 20.63
Average Flow Rating 85.1
Top Mount Diameter 129.5
Fuel Tank Pressure Sensor Included Yes
Regulator Included Yes
In Tank Or External In Tank
Gasket Or Seal Included Yes
Grade Type Premium
Pump Design Turbine pump
Pump Type Electric
Lock Ring Included No
Universal Or Specific Fit Specific
Minimum Flow Rating 261
Maximum Pressure 73
Strainer Included Yes
Country of Origin US
Condition New
🚗 Compatible with
12 vehicles are compatible with this product
Year Make Model
2007 Chevrolet Silverado 2500 HD
2007 GMC Sierra 2500 HD
2007 Chevrolet Silverado 3500 HD
2007 GMC Sierra 3500 HD
2008 Chevrolet Silverado 2500 HD
2008 Chevrolet Silverado 3500 HD
2008 GMC Sierra 3500 HD
2008 GMC Sierra 2500 HD
2007 Chevrolet Silverado 1500
2007 GMC Sierra 1500
2008 Chevrolet Silverado 1500
2008 GMC Sierra 1500
