Vibrant Performance Turbocharger Flange - 1419

Name: Vibrant Performance Turbocharger Flange - 1419
SKU: 1419
Price: 41.02 USD
Availability: InStock

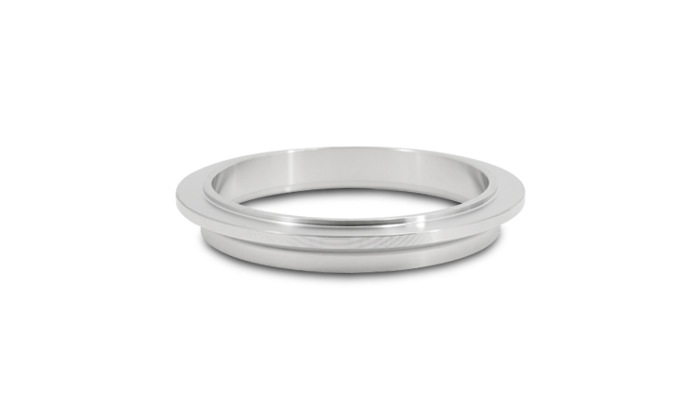

3" Vband Turbo Outlet Flange for PTE Medium Frame Turbo

Manufacturer: Vibrant Performance

Manufacturer part number: 1419

$41.02

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Vibrant Performance offers a variety of turbo outlet flanges for your custom fabrication projects. Constructed from 304 stainless steel and mild steel, Vibrant flanges are precision laser-cut or CNC-machined to ensure a perfect fit to your turbo components. For Precision Turbo CAE 5 and CAE 6 series 90mm O.D. V-Band Flange, 77mm diameter mating ring (suits 3" O.D. tubing).

Application: Universal

Products specifications

Attribute name	Attribute value
Apex Width	3.25
Centering Ring Male Diameter Height	1.56
Centering Ring Male Diameter	77.7
Flange O.D.	92.06
Material	304 Stainless Steel
Port I.D.	72.9
Prop 65 Yes/No	No
Sale Segment	Turbo Flanges and Fittings
Thickness	12.9
Tube Recess Depth	2.5
Tube Recess I.D.	3
Web Category	Turbine Outlet Flanges
Country of Origin	CN
Condition	New
