Warrior Winches Winch Mount Plate - IST640

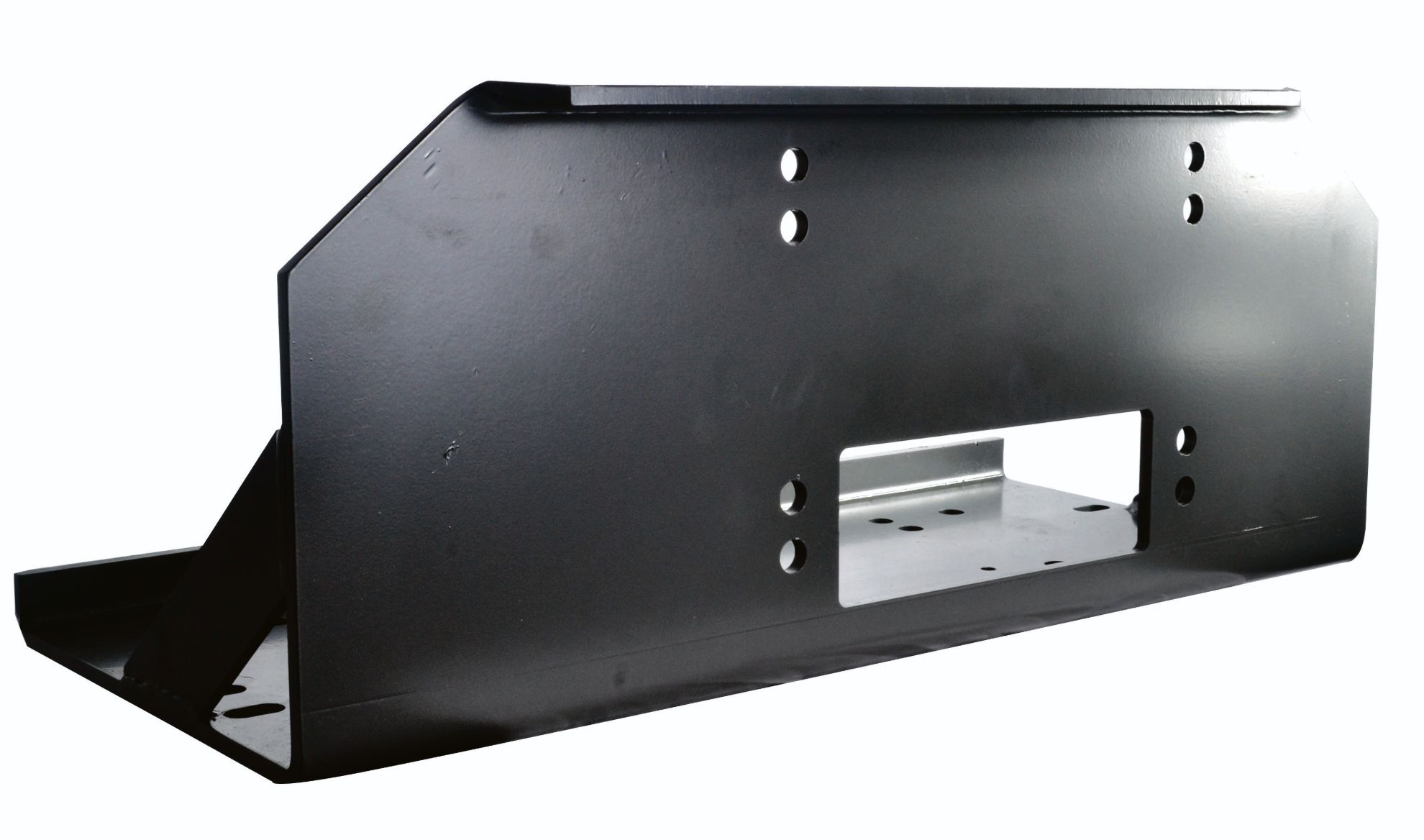

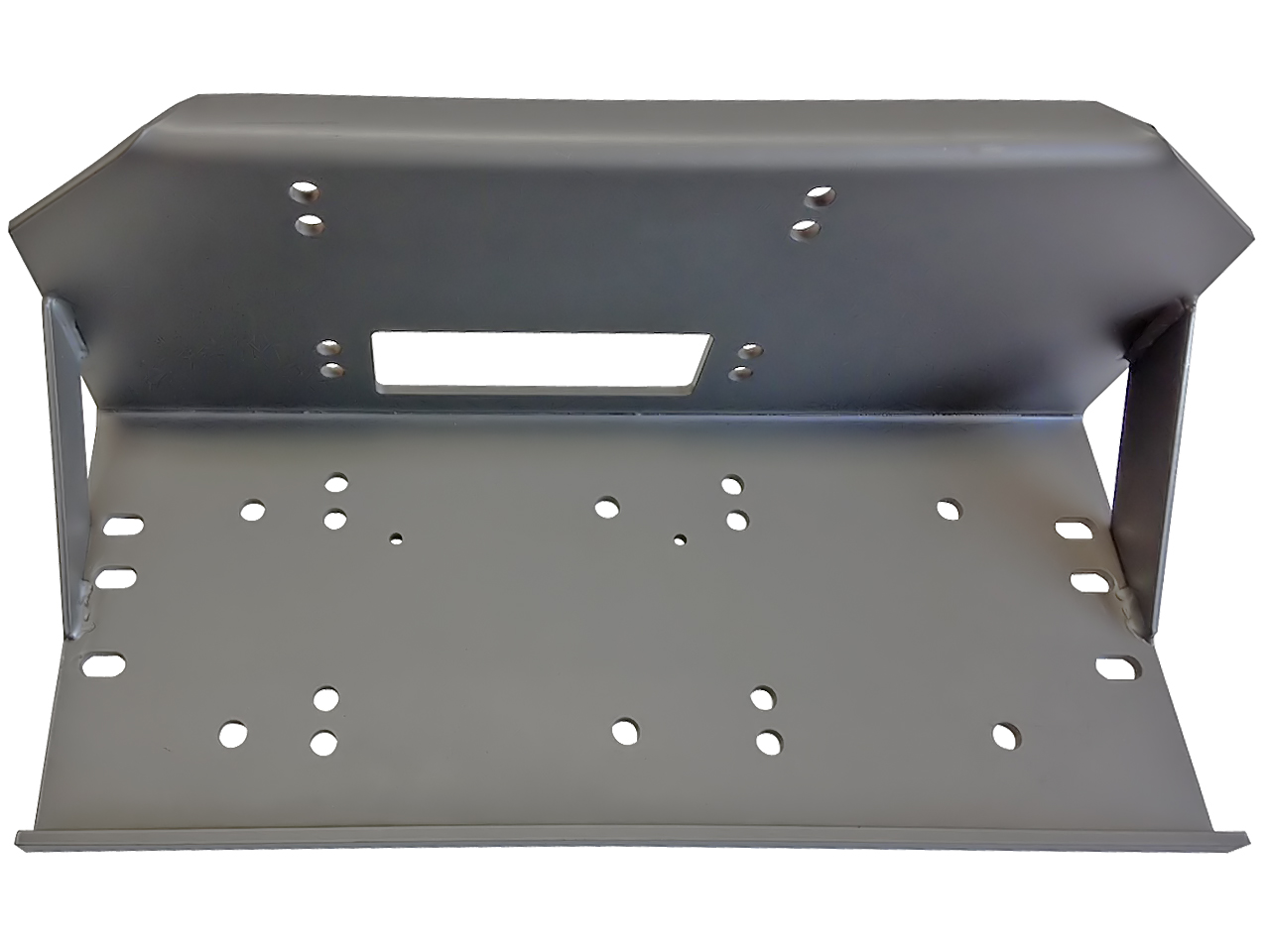

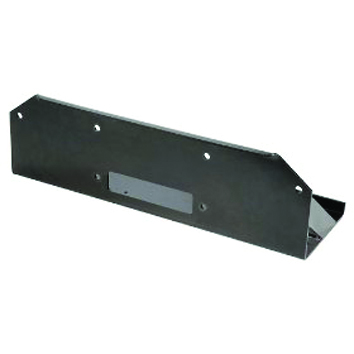

This heavy duty winch mounting plate is perfect for use with the Warrior Samurai 17500 electric winch, but is also designed to be used with other winches of up to 22,000lb, please see below for fitment options. Finished in a durable black powder coat, it is predrilled for most standard winches and can be modified to suit your own requirements when installing. There is a return fold on the front leading edge of the plate which is drilled and slotted to mount the fairlead too along with holes for front mounted winches. Fitment variations: Foot forward mounting for the Samurai 17500 model rated at 18,000lbs Foot down mounting rated at 22,000lbs Dimensions: Front mounting pattern – 254mm x 114.3mm & 254mm x 165.1mm Bottom mounting pattern – 254mm x 114.3mm & 254mm x 165.1mm Overall = 640mm x 285mm x 260mm Material thickness = 7mm Fairlead hole centres = 255mm. Please cross reference the mounting pattern of your winch with the above dimensions.
