Zone Offroad Suspension Lift Kit - ZONC74F

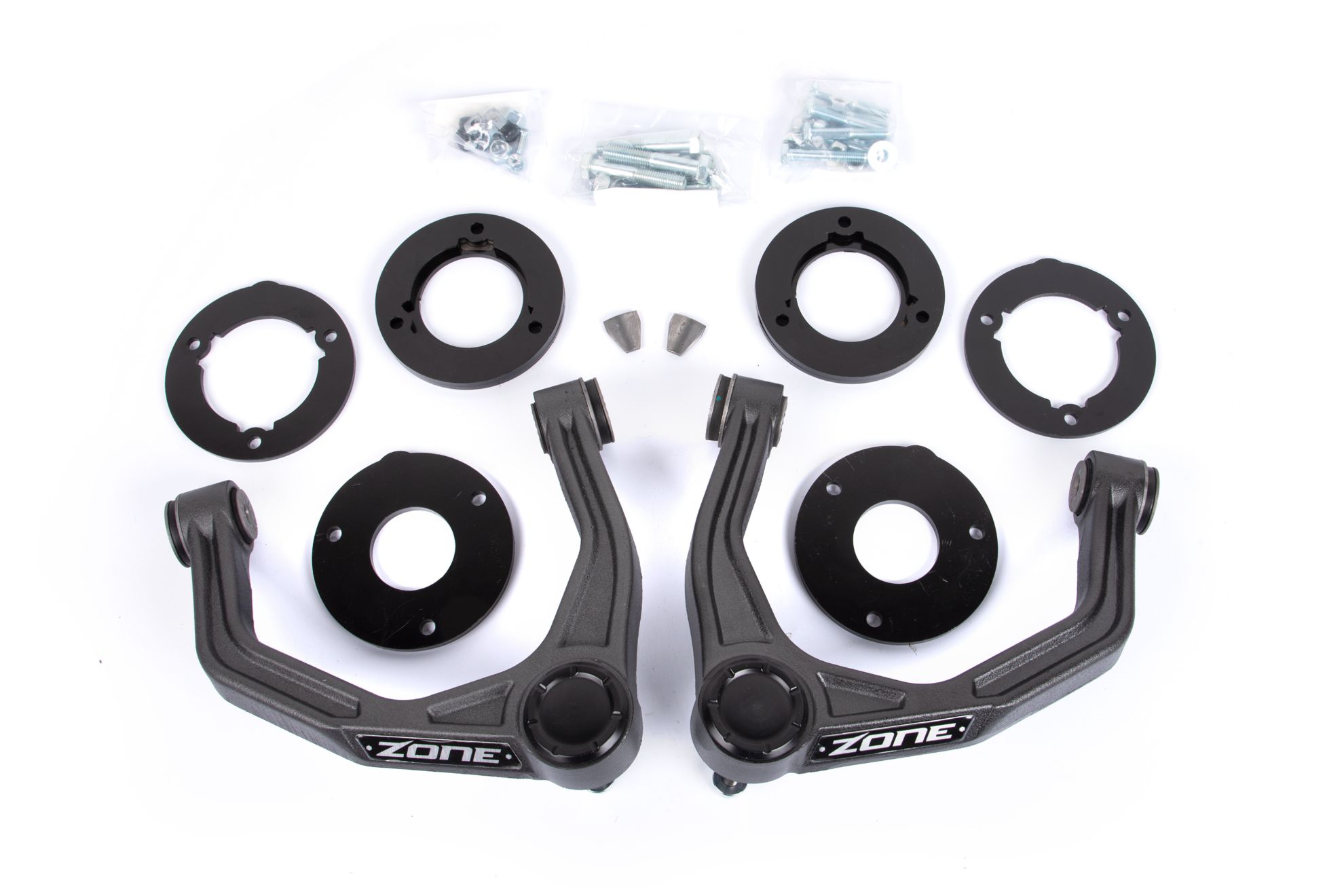

Specially designed for the 2019-2022 Chevy/GMC 1500 AT4 / Trail Boss trucks, these kits are designed to a higher standard, working within the parameters of the factory suspension and steering geometry to maximize potential while allowing optimal clearance for larger tires. Kits include strut spacers, adventure series upper control arms, hardware packs and steering stop extensions.

Note: Control arms typically add 1-2 degrees caster above stock alignment specifications.All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted.For replacement ball joints use service kit ZONF8202. Ball joint is directional and must be installed with the ‘dot’ facing either inward or outward on the vehicle, otherwise damage may occur.This kit will NOT fit AT4X or ZR2 models with the Multimatic ShocksStock Wheels and Tires will require 1/4" Wheel Spacer to clear upper control arm.Recommended:295/60 20x9 w/ 6.18-5.5" BS (Chevy); 295/55 20x9 w/ 6.18-5.5" BS (GMC)35/12.50 18x9 w/ 20x9; 5.5" BS (Chevy)*33/12.50 18x9 w/ 20x9; 5.5" BS (GMC)**295/60 20x9 w/ 6.18-5.5" BS (GMC)**285/55 20x9; 285/60 18x9; 285/65 17x9 w/ 6.18-4.5" BS (GMC & Chevy)*285/60 20x9; 285/70 18x9; or 285/75 17x9 w/ 6.18" to 5.5" BS (GMC or Chevy)
