Hella Fuse Box - 002294201

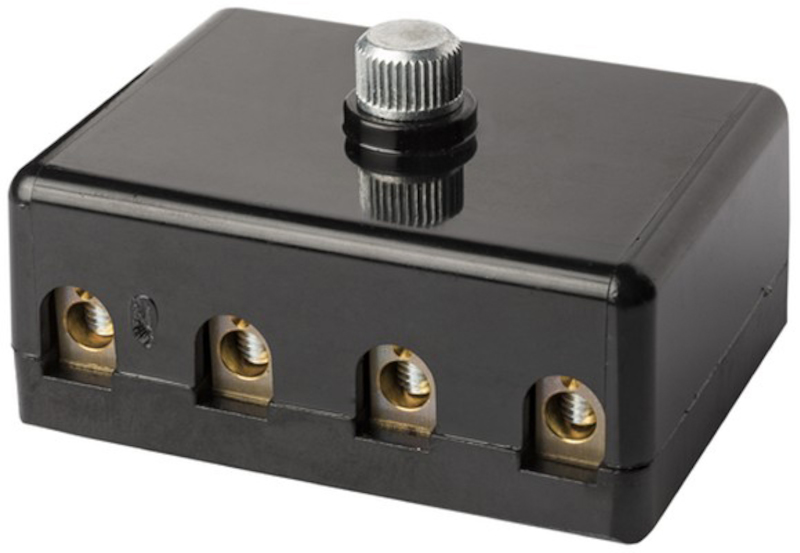

HELLA Fuse Box 002294201
Manufacturer: Hella
Manufacturer part number: 002294201
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

If a single fuse holder is not sufficient to integrate an additional device into the electrical system, or if several Functions are to be added at once, the use of a fuse box is an option. The bundling of the backup Functions at a central Point creates both an overview and ease of maintenance. As with the fuse holders, there are numerous variants for each fuse Type, differing in shape, Color, size, contacting and protection class. The fuse box sets are modular in design, which means that the fuse box can be individually assembled to suit the application.

Products specifications

Attribute name Attribute value
California Proposition 65 Required No
Cross Section [mm²] to 6
Assy/Disassy by Qualified Personnel Required! .
Number of pins 4
Bolt Distance [mm] 45
Depth [mm] 45
Length [mm] 60
DIN/ISO Standard 72581 - AB
Current Strength [A] 8
Number of connectors 8
Rated Current [A] 8
Color Black
Housing Color Black
Gender Female
Terminal Gender Female
Fuse Type for Torpedo Fuse
Housing Material Plastic
Shape Rectangular
Mounting Type Screw Connection
Plug Type Screw Contact
Supplementary Article/Supplementary Info 2 with Fuse
Quantity 1
Height (in.) 1.38
Bolt Distance [in] 1.77
Depth (in.) 1.77
Length (in.) 2.36
Height [mm] 35
Voltage to [VDC] 36
Terminal Quantity 8
Terminal Type Threaded
Country of Origin MT
