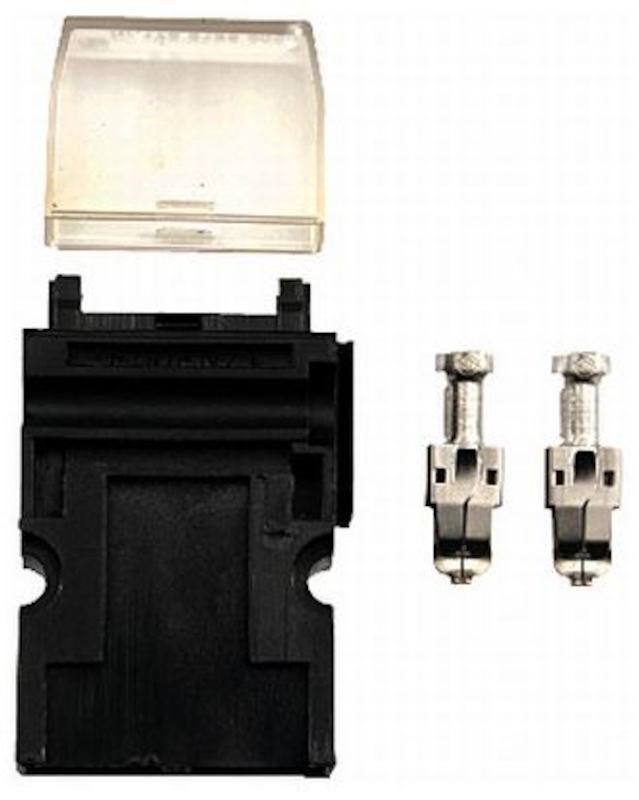

Hella Fuse Box - 005235002

HELLA Fuse Box 005235002
Manufacturer: Hella
Manufacturer part number: 005235002
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

If a single fuse holder is not sufficient to integrate an additional device into the electrical system, or if several functions are to be added at once, the use of a fuse box is an option. The bundling of the backup functions at a central point creates both an overview and ease of maintenance. As with the fuse holders, there are numerous variants for each fuse type, differing in shape, color, size, contacting and protection class. The fuse box sets are modular in design, which means that the fuse box can be individually assembled to suit the application.

Products specifications

Attribute name Attribute value
Container Type Blister Pack
California Proposition 65 Required WARNING: Cancer - www.P65Warnings.ca.gov
Assy/Disassy by Qualified Personnel Required! .
Depth [mm] 14.4
Number of Inlets / Outlets 2
Cross Section [mm²] to 2.5
Width [mm] 25.3
Current Strength [A] 30
Current Strength to [A] 30
Height [mm] 52.8
Quantity 6
Voltage to [VDC] 80
Housing Color Black
Terminal Type Blade Pin
Packing Type Blister Pack
Fuse Type for ATO Fuse, ATO Fuse
Terminal Gender Male
Housing Material Plastic
Contact Surface Tin-Plated
Color Transparent
Voltage 12.00
Length 14.40
Width 25.30
Height 52.80
Fuse Quantity 6
Body Material PA6 GF 30
Universal Or Specific Fit Universal
Country of Origin DE
