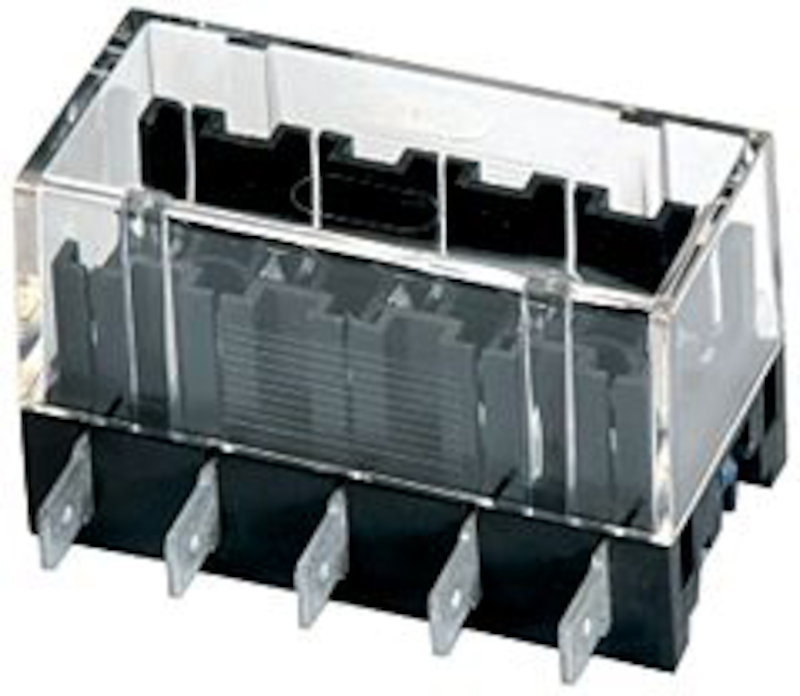

Hella Fuse Box - 005993032

5-way Fuse Box 30A
Manufacturer: Hella
Manufacturer part number: 005993032
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

If a single fuse holder is not sufficient to integrate an additional device into the electrical system, or if several Functions are to be added at once, the use of a fuse box is an option. The bundling of the backup Functions at a central Point creates both an overview and ease of maintenance. As with the fuse holders, there are numerous variants for each fuse Type, differing in shape, Color, size, contacting and protection class. The fuse box sets are modular in design, which means that the fuse box can be individually assembled to suit the application.

Products specifications

Attribute name Attribute value
California Proposition 65 Required No
Depth [mm] 28
Current Strength [A] 30
Voltage to [VDC] 32
Bolt Distance [mm] 33
Height [mm] 34.5
Number of pins 5
Length [mm] 57.2
Socket Width [mm] 6.3
Trim Level ATO
Housing Color Black
Plug Type Blade Terminal
One-sided / Double-sided Double
Gender Female
Terminal Gender Female
Mounting Type Flat Plug-in Connector
Fuse Type for ATO Fuse
Shape Rectangular
Contact Surface Tin-Plated
Color Transparent
Terminal Quantity 10
Terminal Type Blade
Assy/Disassy by Qualified Personnel Required! .
Depth (in.) 1.1
Bolt Distance [in] 1.3
Cross Section [mm²] to 1.5
Number of connectors 10
Quantity 10
Plug Type ID 10 x Side (6.3 x 0.8)
Country of Origin TN
