Hella Fuse Box - 005993092

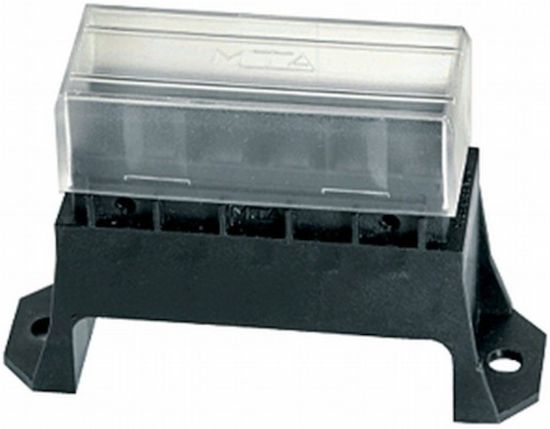

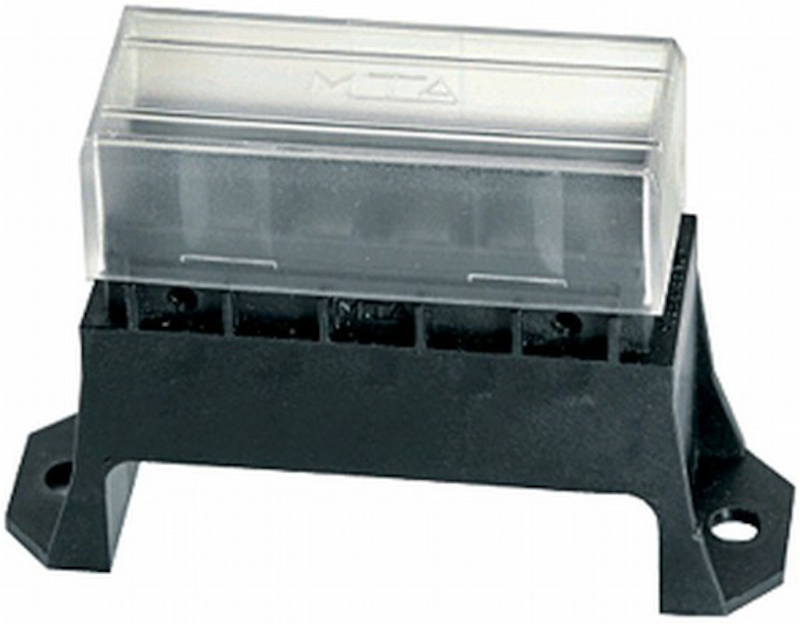

HELLA Fuse Box 005993092
Manufacturer: Hella
Manufacturer part number: 005993092
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

If a single fuse holder is not sufficient to integrate an additional device into the electrical system, or if several Functions are to be added at once, the use of a fuse box is an option. The bundling of the backup Functions at a central Point creates both an overview and ease of maintenance. As with the fuse holders, there are numerous variants for each fuse Type, differing in shape, Color, size, contacting and protection class. The fuse box sets are modular in design, which means that the fuse box can be individually assembled to suit the application.

Products specifications

Attribute name Attribute value
California Proposition 65 Required No
Temperature range from [°F] -22
Temperature range from [°C] -30
Assy/Disassy by Qualified Personnel Required! .
Depth (in.) 1.02
Quantity 10
Current Strength [A] 100
Number of connectors 12
Plug Type ID 12 x Axial (6.3 x 0.8)
Temperature range to [°F] 185
Depth [mm] 26
Voltage to [VDC] 32
Height [mm] 57.5
Number of pins 6
Socket Width [mm] 6.3
Bolt Distance [mm] 73.2
Temperature range to [°C] 85
Length [mm] 85.2
Color Black
Housing Color Black
Plug Type Blade Terminal
Gender Female
Terminal Gender Female
Mounting Type Flat Plug-in Connector
Fuse Type for ATO Fuse
IP Rating IP22
Housing Material PA 66 GF 30
Shape Rectangular
Contact Surface Tin-Plated
Terminal Quantity 8
Terminal Type Blade
Country of Origin SK
